Disassembling the Slide Rails Before Installation

Use this procedure to remove the mounting brackets from the slide-rail assemblies.
1. Unpack the slide-rails.

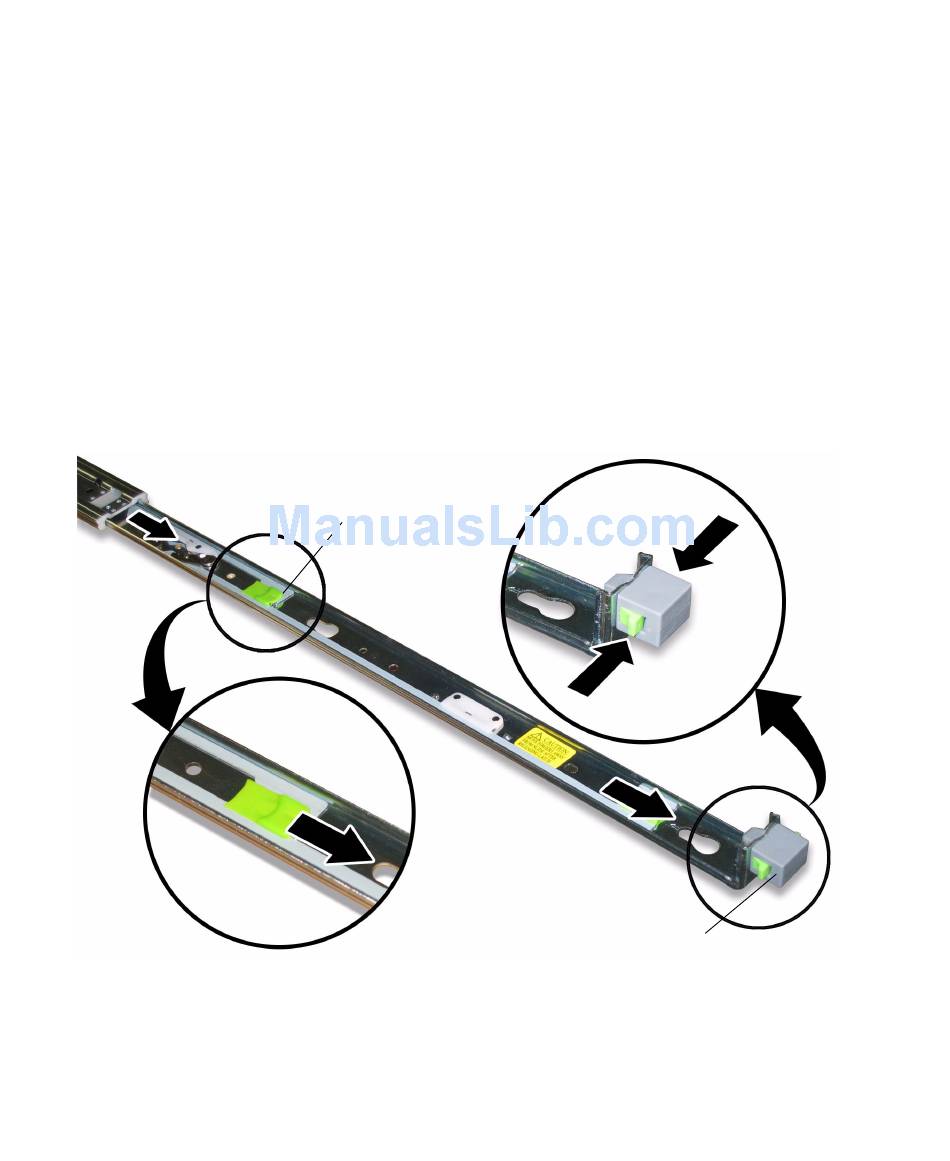

2. Locate the slide-rail lock at the front of one of the slide-rail assemblies, as shown
in
FIGURE 1-1
3. Squeeze and hold the tabs at the top and bottom of the lock while you pull the
mounting bracket out of the slide-rail assembly, until it reaches the stop. See
FIGURE 1-1
4. Pull the mounting bracket release button toward the front of the mounting
bracket, as shown in
bracket from the slide-rail assembly.
5. Repeat the procedure for the remaining slide rail assembly.
Disassembling the Slide-Rail Before Installation
FIGURE 1-1
.
.
FIGURE 1-1
Mounting bracket
release button
, and simultaneously withdraw the mounting
Slide-rail lock
Chapter 1 Setting Up the Server Hardware 3
