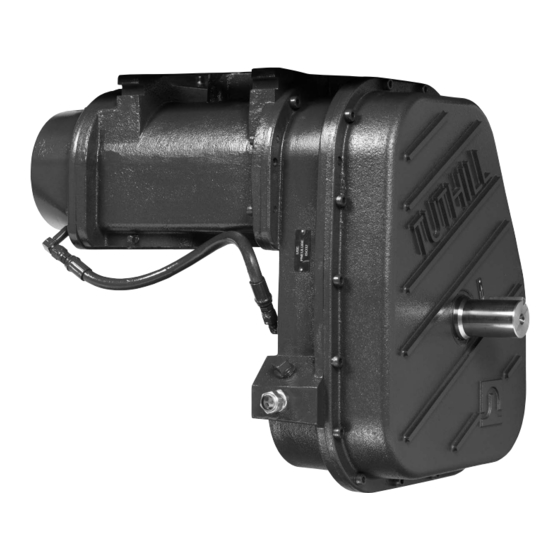

TUTHILL
T650 / T950H
Truck Blower
25 PSI / 1.72 BAR
29 PSI / 2.2 BAR
INSTALLATION
OPERATION
MAINTENANCE
MANUAL
WARNING
DO NOT OPERATE
BEFORE READING MANUAL
1/2010
(T650)
(T950H)
Tuthill Vacuum & Blower Systems
4840 West Kearney Street
Springfield, Missouri USA 65803-8702
o 800.825.6937 f 417.865.2950
www.tuthillvacuumblower.com
Advertisement
Table of Contents
Related Manuals for Tuthill T650
Summary of Contents for Tuthill T650
- Page 1 25 PSI / 1.72 BAR (T650) 29 PSI / 2.2 BAR (T950H) INSTALLATION OPERATION MAINTENANCE MANUAL WARNING DO NOT OPERATE BEFORE READING MANUAL Tuthill Vacuum & Blower Systems 4840 West Kearney Street Springfield, Missouri USA 65803-8702 o 800.825.6937 f 417.865.2950 1/2010 www.tuthillvacuumblower.com...
-
Page 2: Safety Precautions
WARNING WARNING CAUTION CAUTION Keep body and Keep body Do not Do not clothing away from and clothing away operate without touch hot machine openings. from drive shaft. guards in place. surfaces. SAFETY INSTRUCTIONS Do not operate before reading the enclosed instruction manual. Use adequate protection, warning and safety equipment necessary to protect against hazards involved in installation and operation of this equipment. -
Page 3: Table Of Contents
ASSEMBLY INSTRUCTIONS AND DRAWINGS 8-13 T650/T950H ASSEMBLY INSTRUCTIONS — STAGE ONE T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE ONE T650/T950H ASSEMBLY INSTRUCTIONS — STAGE TWO T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE TWO T650/T950H ASSEMBLY INSTRUCTIONS — STAGE THREE T650/T950H ASSEMBLY DRAWING AND PARTS LIST —... -
Page 4: Installation
Tuthill Truck Blowers are built to exacting standards and if properly installed and maintained will provide many years of reliable service. We urge you to take time to read and follow every step of these instructions when installing and maintaining your blower. -
Page 5: Performance Curves
BLOWER SPECIFICATIONS PERFORMANCE CURVES T650 PRESSURE CURVE T950H PRESSURE CURVE 1100 AIRFLOW BASED UPON m³/h AIR FLOW AT INLET CONDITIONS OF: STANDARD INLET 1000 14.7 PSIA & 70° F CONDITIONS 1013mb + 20°C PSIG PSIG 1000 1250 1500 1750 2000... -
Page 6: Lubrication
A sight glass should be used to determine oil level. • Always follow the Filling Procedure outlined below. SQUARE SUMP • Never mix oil types or grades in your Tuthill Truck Blower. This could cause gear and bearing failure. CURRENT DESIGN 3 Quarts FILLING PROCEDURE (2.8 Liters) Remove fill plugs. -
Page 7: Check Valve
Do not force yokes onto the blower drive shaft or the PTO output shaft. • T650 drive shaft is 1 5/8” diameter with a 3/8” keyway and 2-9/16” inches long. • T950H drive shaft is 40 mm diameter with a 12 mm keyway and 65 mm long. -
Page 8: T650/T950H Assembly Instructions - Stage One
T650/T950H ASSEMBLY INSTRUCTIONS — STAGE ONE The numbers in parentheses correspond with the drawing on the facing page. PREPARE END PLATES (5). INSTALL PLUMBING FOR END PLATE (FROM STAGE TWO DRAWINGS (21)(22)(23)(24)(25)) 2.1. Install elbows and cap screws. 2.2. Install sight glasses and plugs. -
Page 9: T650/T950H Assembly Drawing And Parts List - Stage One
T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE ONE ITEM NO. PART NUMBER DESCRIPTION QTY. ASSEMBLY PLATE — LEVELING TOOL — 81052 ROTOR MALE 131 MM 81053 ROTOR FEMALE 121 MM 81007 ENDPLATE DRIVE END 1730X-2 LEFT OR RIGHT HAND SEAL ASSEMBLY... -
Page 10: T650/T950H Assembly Instructions - Stage Two
T650/T950H ASSEMBLY INSTRUCTIONS — STAGE TWO The numbers in parentheses correspond with the drawing on the facing page. INSTALL HOUSING 8.1. Install dowels (2) in housing. 8.2. Lower housing (3) onto rotors. 8.3. Tighten housing bolts (4). 8.4. TAKE A MEASURE… Visually check rotor-to-housing clearance to make sure rotor shoulder is above housing bore on inlet end. -
Page 11: T650/T950H Assembly Drawing And Parts List - Stage Two
T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE TWO 26 17 16 15 13 14 9 TABLE TOP ASSEMBLED IN STAGE 1 ITEM NO. PART NUMBER DESCRIPTION QTY. 80050-20 PIN, DOWEL 10 × 20 MM 81003-101 (Consult factory for T950H P/N) HSG, AC C.I. -
Page 12: T650/T950H Assembly Instructions - Stage Three
T650/T950H ASSEMBLY INSTRUCTIONS — STAGE THREE The numbers in parentheses correspond with the drawing on the facing page. INSTALL DRIVE SHAFT ASSEMBLY – PRE-LUBE BEARING INSTALL END COVER 14.1. Install O-ring in end plate – use grease to retain. 14.2. -
Page 13: T650/T950H Assembly Drawing And Parts List - Stage Three
T650/T950H ASSEMBLY DRAWING AND PARTS LIST — STAGE THREE TABLE TOP ITEM NO. PART NUMBER DESCRIPTION QTY. 80050-20 PIN, DOWEL 10×20 MM 29361-017 VITON O-RING 29361-030 VITON O-RING 81021 PLATE OIL PUMP B18.22M - PLAIN WASHER 6 MM 80045-25 SCREW, CAP, SOC HEAD M6... - Page 14 T650 AND T950H EXPLODED VIEW DRAWING AND PARTS LIST ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. ROTOR MALE 131MM KEY 14MM × 9 × 22 ROTOR FEMALE 121 MM BEARING, BALL 2 ROW HOUSING MACH C.I. T650/T950H OIL PUMP PLATE ENDPLATE MACH C.I.
- Page 15 T650 AND T950H DIMENSIONAL DRAWING Dimensions shown are subject to change. Dimensions are shown in inches and millimeters. Ø 4.00 TTMA 22.31 Discharge Flange * 2.52 T650: Ø 1.63” Shaft with 3/8” Keyway T950H: Ø 40mm Shaft with 12mm Keyway 13.20...
- Page 16 NOTES...
- Page 17 NOTES...
-
Page 18: Warranty - Truck Blowers
WARRANTY – TRUCK BLOWERS Subject to the terms and conditions hereinafter set forth and set forth in General Terms of Sale, Tuthill Vacuum & Blower Systems (the Seller) warrants products and parts of its manufacture, when shipped, and its work (including installation and startup) when performed, will be of good quality and will be free from defects in material and workmanship. - Page 19 IMPORTANT All Tuthill Truck Blowers manufactured by Tuthill Vacuum & Blower Systems are date coded at time of shipment. In order to assure you of the full benefits of the product warranty, please complete, tear out and return the product registration card below, or you can visit our product registration web page at: http://www.tuthill.com/us/en/about/organization/lob/vacuum/product-registration.cfm...
-
Page 20: Tuthill Vacuum & Blower Systems Uk
NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO. 2912 SPRINGFIELD MO POSTAGE WILL BE PAID BY ADDRESSEE ATTN: CUSTOMER SERVICE TUTHILL VACUUM & BLOWER SYSTEMS PO BOX 2877 SPRINGFIELD MO 65890-2150...
