INSTALLATION
4. SECURING THE ROLLER ASSEMBLY
The zipper of the canvas should be facing aft and on top of the roller when installed.
A. Slide the roller assembly onto the actuators.
B. Ensure roller clamps are aligned over "Place Roller Clamp Here" stickers (2 inches in from the end of
the actuator main tube). (See Figure 15.)
C. Secure the roller in place using the provided 1/4"- 20 x 3/4" socket head cap screws.
ATF Installation Guide
Roller Clamp
2"

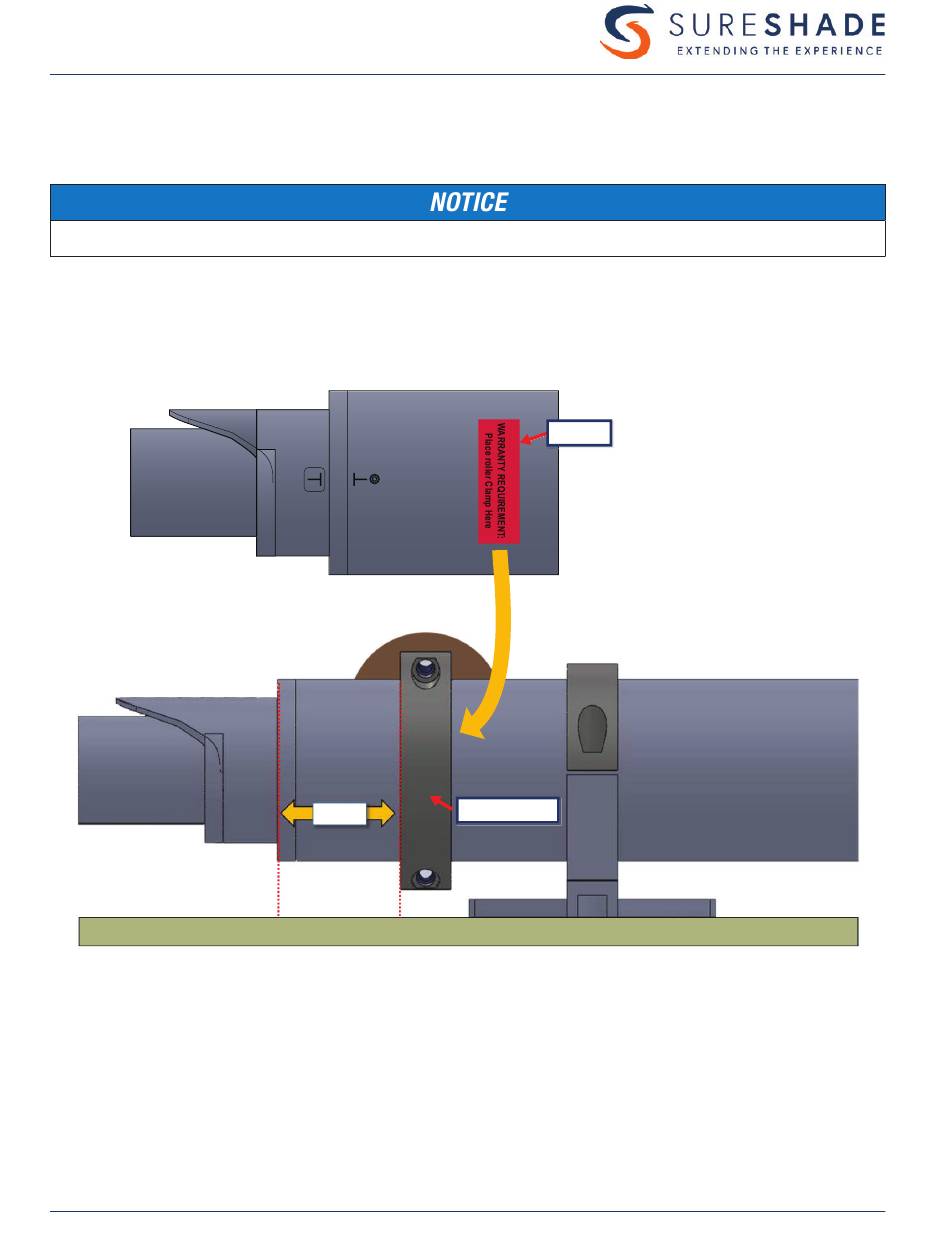

Figure 15 – Securing Roller Assembly
26
Sticker
© 2018 Rodan Enterprises LLC t/a SureShade®
