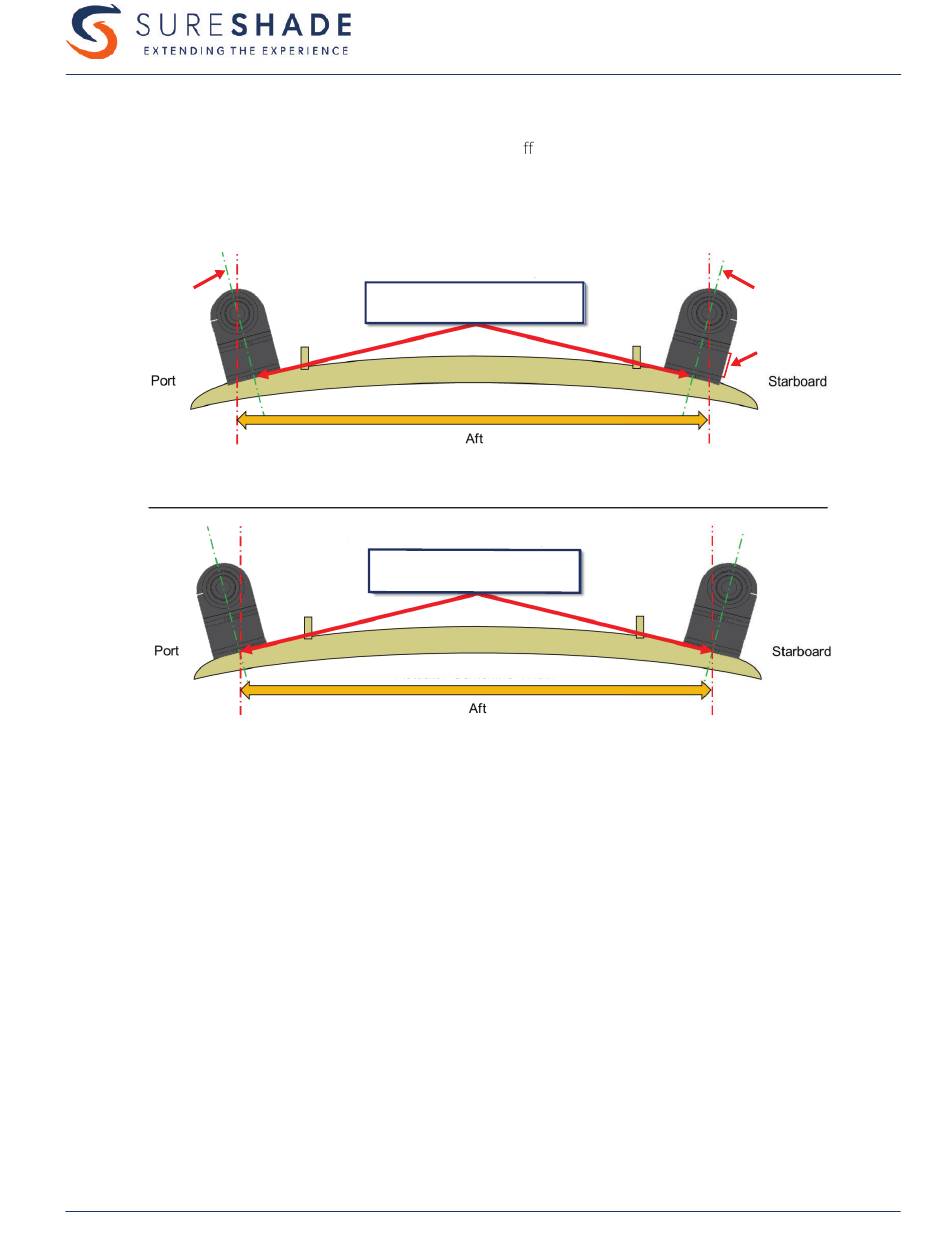

If your hardtop is curved, the mounting holes are di erent than shade centerline. To determine
mounting hole location for topside surface mount with curvature, see Figure 9A. The mounting holes
will ultimately be drilled narrower than shade centerline. Mark location of mounting holes with a
grease pencil.
Mounting Hole
Drill Line
© 2018 Rodan Enterprises LLC t/a SureShade®
Correct Placement of Mounting Brackets
Adjust placement of brackets
and mark holes here.
Shade Centerline Width
Figure 9A
Incorrect Placement of Mounting Brackets
DO NOT mark holes here.
Actuators will be too far apart.
Shade Centerline Width
Figure 9B
Figure 9 – Curved Surface Mount
21
INSTALLATION
Mounting Hole
Drill Line
Optional
Mounting Spacer
ATF Installation Guide
