2. SETTING THE MOUNTING CLAMPS
A. Disassemble the four mounting clamps by removing the two 1/4"-20 x 3/4" socket head screws in
each clamp and remove the top clamp. Set the screws and top clamps aside. (See Figure 5.)
N
OTE:
Place mounting clamps 6 to 12 inches from aft of hardtop. Spacing between forward and aft mounting clamps
should be no less than 26 inches. 30 inches or more is preferred when applicable. (See Figure 6.)
N
OTE:
Place actuator in clamps to aid in aligning and spacing mounting clamps.
B. Place the four bottom mounting clamps along the pre-determined lines on the hardtop. (See Figure 6.)
© 2018 Rodan Enterprises LLC t/a SureShade®

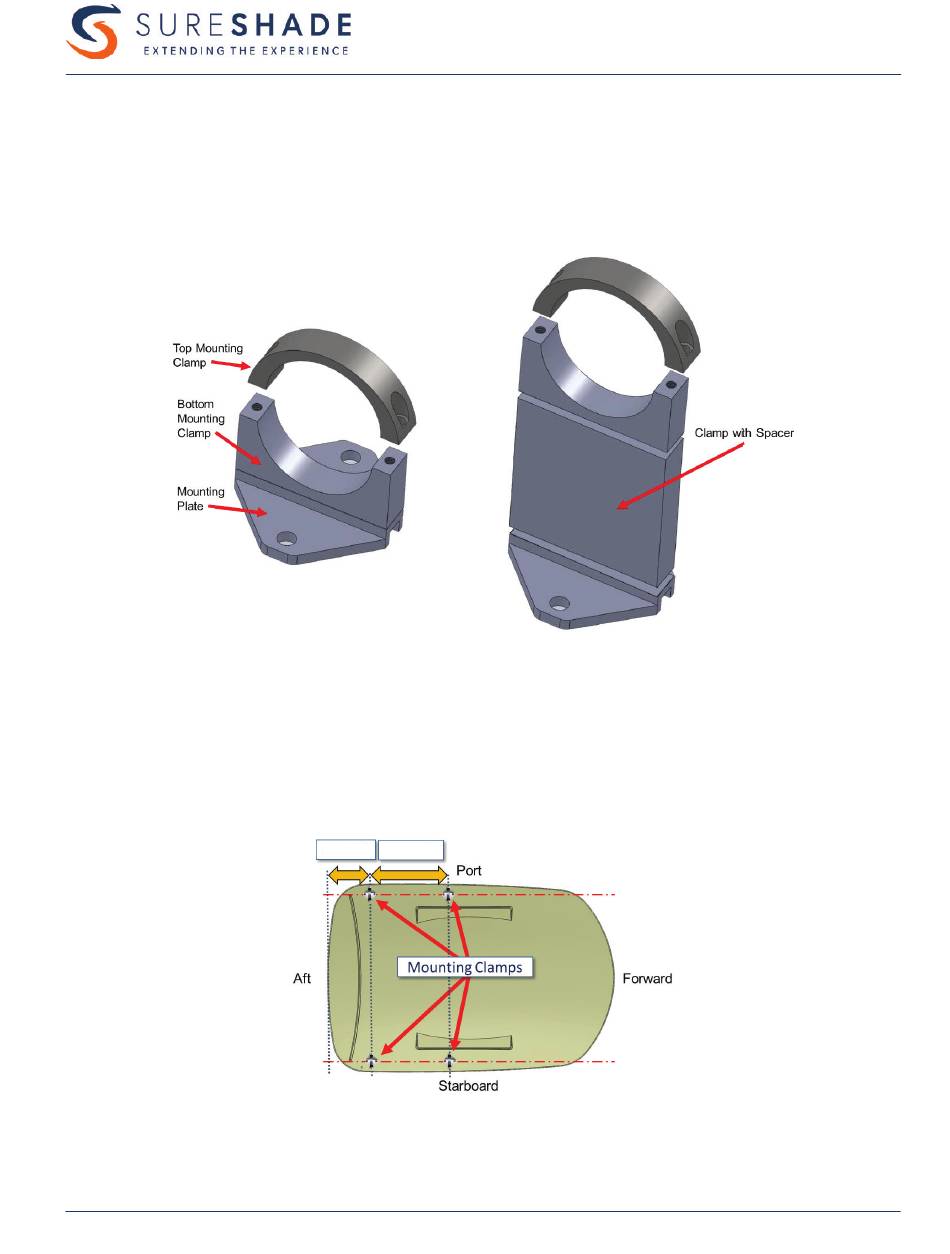

Figure 5 – Mounting Clamps (may include spacers depending on installation)
6" – 12"
>= 26"
Figure 6 – Mounting Clamp Position
19
INSTALLATION
ATF Installation Guide
