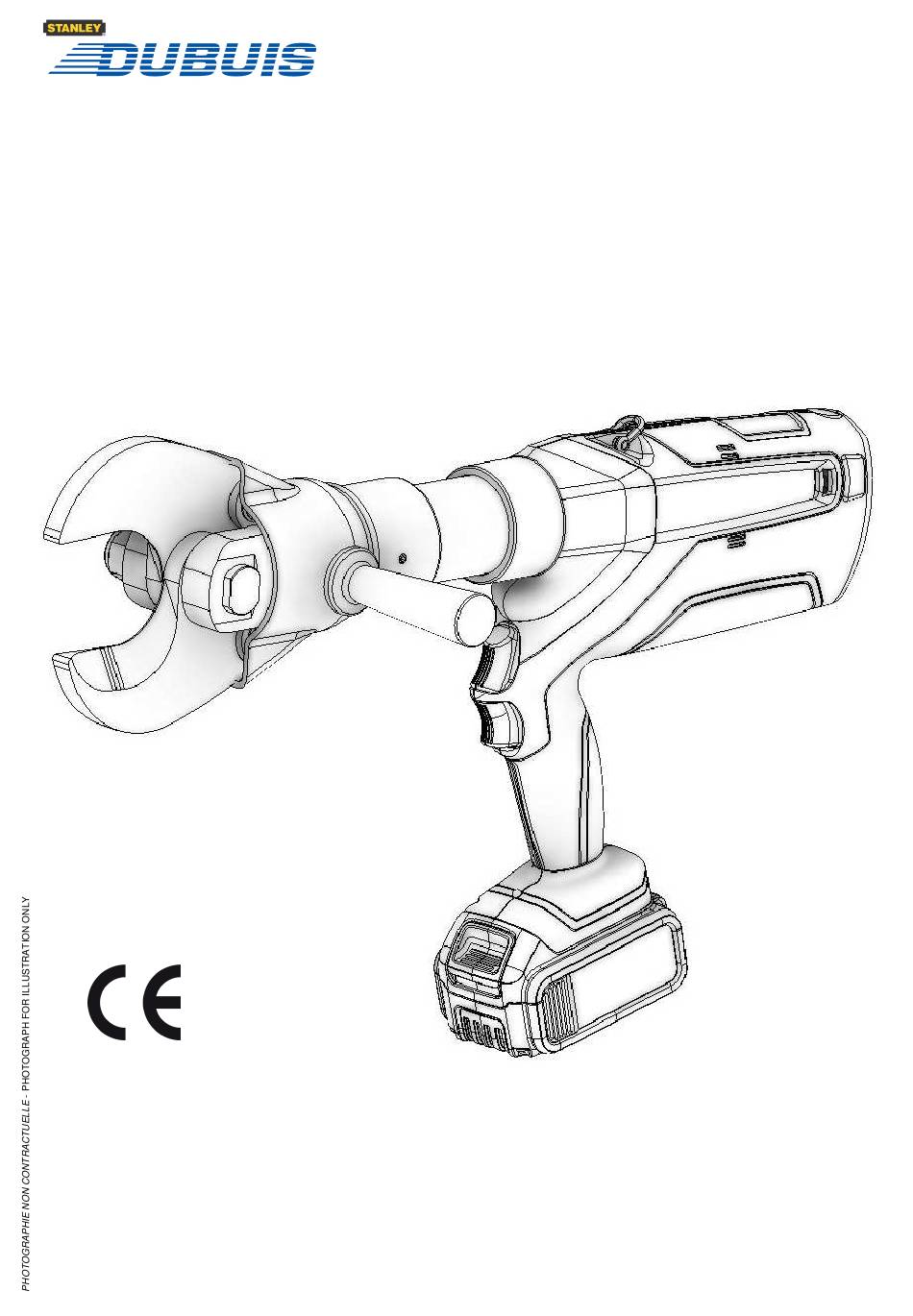

  • Page 1 COUPE-CÂBLES HYDRAULIQUE SUR BATTERIE ELECTRO HYDRAULIC CUTTING TOOL BCP065C MANUEL D’UTILISATION (NOTICE ORIGINALE) INSTRUCTION MANUAL...
  • Page 2 0915 - BCP065C - 2...
  • Page 3: Caractéristiques

    Français CARACTÉRISTIQUES Force ................................90kN Passage Maxi................................Ø65mm Batterie …………………………………………………………………………………........18VLi-ion Moteur ................................18V Dimensions (avec batterie) …........................………... 540x350x95 Masse (avec batterie) …..…..………………………………………………………………………………………..……………... 7,350kg Coupe ………..………….………..……………………………………….………….……… Multibrins cuivre/aluminium Niveau de puissance acoustique LwA ........................... 75 dB(A) La valeur pondérée de l’accélération efficace ……………………………………………………………..
  • Page 4: Maintenance - Entretien

    DUBUIS et STANLEY Hydraulic Tools (ci-après dénommé «Stanley»), sous réserve des exceptions prévues ci-dessous, garantie les nouveaux outils pour une période d'un an à compter de la date d'expédition de Stanley, qui sont exempts de défauts en pièces et / ou main-d'œuvre au moment de la livraison.
  • Page 5: Consignes De Sécurité

    Français CONSIGNES DE SÉCURITÉ COUPE CÂBLES : POUR TRAVAILLER SANS DANGER AVEC CET OUTILLAGE, IL EST IMPÉRATIF DE LIRE LE MODE D’EMPLOI ATTENTIVEMENT ET DE RESPECTER LES CONSIGNES QUI S’Y TROUVENT. LE NON-RESPECT DES CONSIGNES PRÉSENTES DANS CETTE NOTICE ENTRAÎNE L’ANNULATION DE LA GARANTIE L’outil est conforme aux normes de sécurité...
  • Page 6 Français CONSIGNES DE SÉCURITÉ INSTRUCTIONS DE SÉCURITÉ Attention ! : Afin de réduire le risque de décharge électrique, de blessure et d’incendie lors de l’utilisation d’outils électriques, observez les mesures de sécurité fondamentales suivantes. Lisez et observez ces instructions avant d’utiliser l’outil. Conservez ces instructions de sécurité. CHOIX DE L’OUTIL : Utilisez l’outil adéquat.
  • Page 7: Utilisation De L'outil

    Français UTILISATION DE L’OUTIL Glissez la batterie à fond dans l’outil Appuyer sur le bouton ON/OFF de l’outil. jusqu’au clic de verrouillage. Les LED s’allument (voir INDICATIONS LED). Introduire le câble dans la tête de l'outil. Avancer la lame mobile contre le câble en appuyant sur la gâchette. S'assurer que le câble soit positionné...
  • Page 8: Changement Des Lames

    Français CHANGEMENT DES LAMES Axes lames Écrou Avancer les lames afin de faire apparaitre Dévisser l’écrou avec une clé plate de 27 en maintenant l’axe avec une clé plate de 20. les axes de lames Retirer l’axe. Axes lames Circlips Lames Retirer les lames réf.78441.
  • Page 9: Indications Led

    Français INDICATIONS LED LED allumée pendant 1 seconde LED clignote LED allumée Appuyer sur le bouton marche ON/OFF. Mise en marche ON de l’outil Les 3 LED s’allument en VERT pendant 1 seconde. La lampe d’éclairage s’allume. VERT VERT VERT L’outil est prêt à...
  • Page 10 Français NOTES 0915 - BCP065C - 10...
  • Page 11: General Features

    English GENERAL FEATURES Force …………................................90kN Max. passage ................................. Ø65mm Battery ……………………………………………………………………………………………........18VLi-ion Motor ……………................................18V Dimensions (with battery) …........................………... 540x350x95 Masse (with battery) …..…..………………………………………………………………………………………..……………... 7,350kg Cutting ..……….………..……...………………………………………………..……...…. Multi-strand copper/aluminum Acoustic power level LwA ............................75 dB(A) The effective weighted acceleration ……………………………………………………………………….
  • Page 12: Maintenance

    DUBUIS and STANLEY Hydraulic Tools (hereinafter called “Stanley”), subject to the exceptions contained below, warrants new tools for a pe- riod of one year from the shipping date from Stanley, to be free of defects in material and/or workmanship at the time of delivery. Stanley will, at its option, repair or replace any tool or part of a tool, or new part, which is found defective upon examination by a Stanley authorized service out- let or by Stanley’s factories in Blois, France or Milwaukie, Oregon USA.
  • Page 13: Safety Instructions

    English SAFETY INSTRUCTIONS HYDRAULIC CUTTING TOOL: TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS IMPERATIVE TO READ CAREFULLY THE DIRECTIONS FOR USE AND TO FOLLOW THE INSTRUCTIONS IT CONTAINS. IF YOU DO NOT RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION MANUAL THE WARRANTY WILL BE CANCELLED.
  • Page 14 English SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Warning! In order to avoid any risk of electrical shocks, injuries and fire, please follow the enclosed safety instructions. Read and respect these instructions before using the machine. Keep this document. CHOICE OF TOOL: Use the appropriate tool. Do not use tools or adaptable devices of too low a power rating to undertake heavy work. Do not use tools for other purposes than the work for which they have been designed MAINTENANCE AND STORAGE: Store your tools in a safe place.
  • Page 15: Using The Tool

    English USING THE TOOL Slide the battery all the way into the Press the button ON/OFF tool. The LED light up tool until lock clicks. (see LED INDICATIONS). Slide the cable through the tool head. Push on the trigger to move forward the blades to the cable. Check that the cable is in the correct cutting position, and then push on the trigger, so the blades move regularly till the complete cutting of cable.
  • Page 16 English CHANGE THE BLADES Blades axis Axis Move the blades in order to appear blades axis. Unscrew the nut with 27mm open-end wrench and a 20mm open-end wrench for the axis. Remove the axis Blades axis Circlips Blades Remove the blades réf.78441. Remove the circlips with circlips pliers and then remove the blades axis Grease...
  • Page 17: Led Indications

    English LED INDICATIONS LED lighting for 1 second LED flashing LED lighting Press the button ON/OFF tool. Starting ON the tool The 3 LED lighting GREEN for 1 second. The front DEL lighting. GREEN GREEN GREEN The tool is ready for work. Press the button ON/OFF tool.
  • Page 18 English NOTES 0915 - BCP065C - 18...
  • Page 19 DÉCLARATION CE 0915 - BCP065C - 19...
  • Page 20 17-19 rue Jules Berthonneau - Z.I. de Villebarou CS73406 - 41034 BLOIS Cedex - France Té l . : + 3 3 ( 0 ) 2 5 4 5 2 4 0 0 0 - F A X : + 3 3 ( 0 ) 2 5 4 5 2 4 0 3 4 h t t p : / / w w w .
  • Page 21 DESIGNATION PRODUIT DOCUMENTATIONS COMMERCIALES BCP065C ET NOTICES TECHNIQUES REFERENCE DOCUMENTATION 0915 -BCP065C 150363 Ind : D VÉRIFICATION D'EVOLUTION APPROBATION Vérifier la conformité du logo : « 9001 2000 » AFAQ VERSION EDACTEUR ERIFICATEUR PPROBATEUR DIFFUSION ’ ’ OCUMENTATION COMMERCIAL OMMERCIAL OMMERCIAL UREAU D ETUDES...
