Leviton UPB Installation Instructions And User Manual

WARNINGS AND CAUTIONS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit breaker or
fuse and test that power is off before wiring!
• If you are unsure about any part of these instructions, consult an electrician.
• SAVE THESE INSTRUCTIONS.

OVERVIEW

The Leviton UPB™ Appliance Module (Figure 1) is a plug-in device that incorporates the UPB™ two-way powerline communication technology, which gives it the ability to be
remotely controlled by UPB™ compatible controllers. The Appliance Module has one UPB™ controllable outlet that can sense the load's local on/off switch (switch trigger) to turn
the load on even after it was turned off using UPB™ control.
NOTE: The switch trigger feature is disabled by default; it may not work for all types of loads (e.g. fluorescent lighting loads).
The Leviton UPB™ Appliance Module is also capable of transmitting UPB™ messages when the local load switch is used to turn the load on or off.
Each appliance module can be configured to custom fit an individual's lifestyle and desires.

INSTALLATION INSTRUCTIONS

The Leviton UPB™ Appliance Module is simply plugged into a standard wall outlet.

LOAD INFORMATION

The total load of the UPB™ controlled outlet must not exceed 15 Amps or ½ Horsepower.

SWITCH TRIGGER OPERATION

The Appliance Module can be configured to sense the load's local on/off switch (switch trigger) to turn the
load on even after it was turned off via UPB™ control. By default, the Appliance Module has the switch
trigger operation disabled.
NOTE: This feature may not work for all types of loads (e.g. fluorescent lighting loads).

OPERATION

The Leviton Appliance Module has many configurable items that can be set using the UPB™ UPStart
configuration software. The following describes the operation of the Leviton Appliance Module in its factory
default configuration.

LED INDICATOR

The Leviton UPB™ Appliance Module comes equipped with a multi-color LED indicator that is normally lit
to blue when the load is off. The LED will turn off when the load is turned on.

TEST MODE

The Appliance Module's controlled outlet can be tested using the Test Mode. The Appliance Module can be
put into test mode by the following steps:
Step Operation
1) Press and hold the pushbutton for at least 3 seconds to enter Test Mode.
2) The Leviton UPB™ Appliance Module will continuously blink its LED magenta to indicate that it is
in Test Mode. Note: the appliance module will automatically exit Test mode after 5 minutes.
3) Press the pushbutton 1 time to turn the UPB™ controlled outlet on and off.
4) Press and hold the pushbutton for at least 3 seconds to exit Test Mode.

SETUP MODE

To configure the Leviton UPB™ Appliance Module using an Leviton controller or a PC running the UPB™ UPStart configuration software, it must be put into Setup Mode as follows:
Step Operation
1) Press the pushbutton switch quickly 5 times.
2) The Leviton UPB™ Appliance Module will cycle the load one time and blink its LED blue to indicate that it is in Setup Mode. Note: the appliance module will automatically exit
Setup mode after 5 minutes.
© 2013 Leviton Mfg. Co., Inc.
UPB APPLIANCE MODULE
TM
Cat. No. 60A00-1
Installation Instructions and User's Guide
INSTALLATION
WARNINGS AND CAUTIONS
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.
• Use this device with copper or copper-clad wire only.
• For indoor use only.
For Technical Assistance Call: 800-824-3005 - www.leviton.com
Pushbutton
UPB Controlled
Outlet

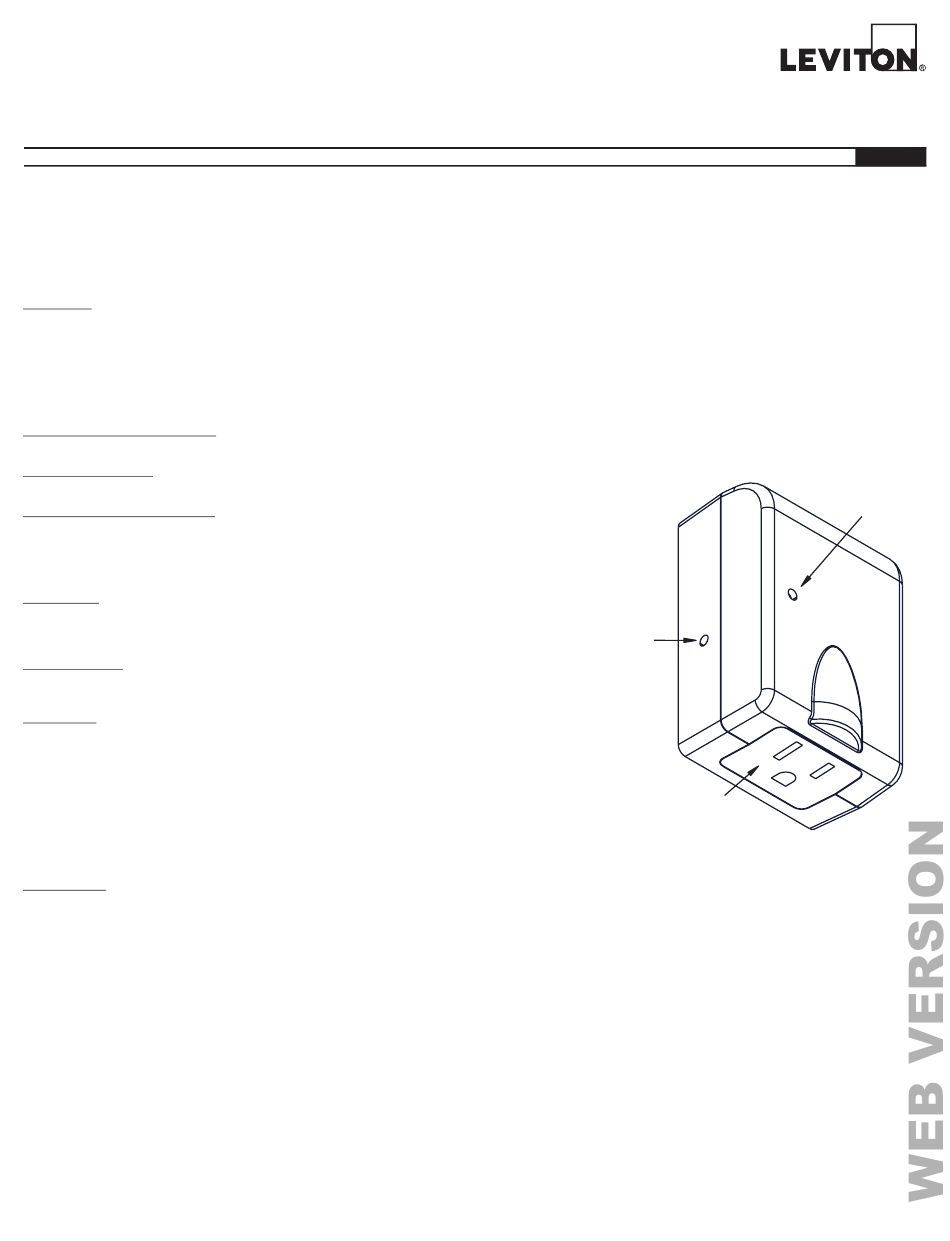

Figure 1 - Leviton UPB™ Appliance Module
DI-022-HL601-05A
AR2253
(60I00-1)
ENGLISH
LED
