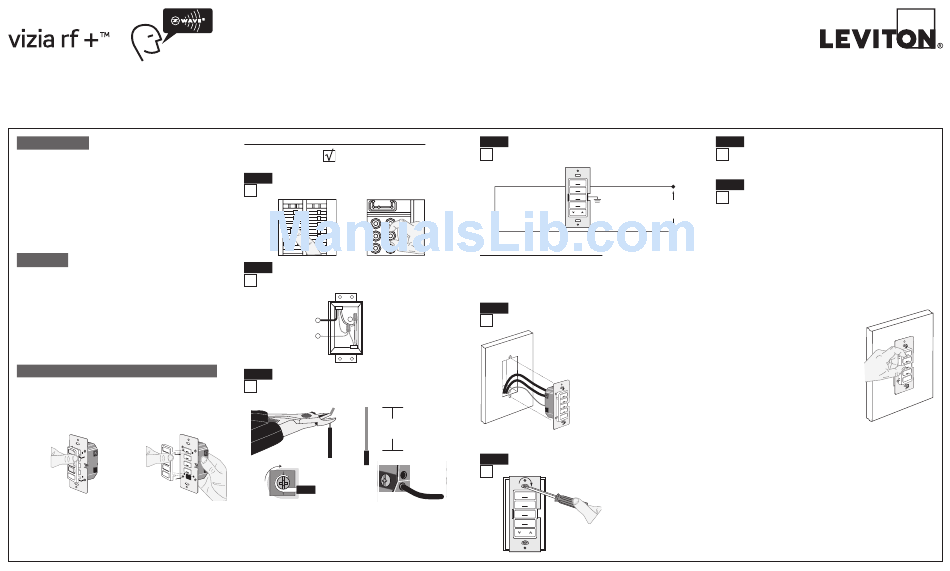

Leviton VRCS4-1L Vizia RF + Installation Instructions

WARNINGS AND CAUTIONS :
• ON/OFF LED for remote load status.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF + VRCS4 controller does not control the load, but provides scene applications to operate with Vizia RF +
TM
• Recommended minimum wall box depth is 2-1/2".
INTRODUCTION
Leviton's Vizia RF + TM components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control
of your lighting. Using RF technology allows Leviton to provide the
greatest signal integrity possible. Each module in Leviton's Vizia RF +
component line is a Z-Wave ® enabled device. In a Z-Wave
each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device is
reached. This ensures that the signal is received by its intended device
by routing the signal around obstacles and radio dead spots. The
4-Scene Controller is compatible with any Z-Wave enabled network,
®
regardless of the manufacturer and can also be used with other devices
displaying the Z-Wave ® logo.
FEATURES
• This is a Z-Wave ® Controller
• Scene control without traveler wires
• Can call 4 scenes
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave ® enabled devices
Tools needed to install your 4-Scene Controller:
Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters
Changing the color of your 4-Scene Controller:
Your 4-Scene controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Push in line up tabs
side at tab and press in
to release side to attach
After frame is removed, remove existing push buttons and replace them
with desired color change push buttons. To change the DIM/BRIGHT
button, before mounting frame, press out DIM/BRIGHT button (bottom)
from back of frame and press in from front of frame new DIM/BRIGHT
button. To make IR capable, replace with a DIM/BRIGHT button that has
the IR window.
dimmers/switches.
TM
INSTAllING YOUR 4-SCENE CONTROllER
NOTE: Use check boxes when Steps are completed.
WARNING:
TO AVOID FIRE, SHOCK OR DEATH; TURN
Step 1
TM
OFF POWER at circuit breaker or fuse and test that power is off
® network,
before wiring!
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
OFF ON OFF ON
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
1. Line (Hot)
2. Neutral
3. Ground
2
1
3
Preparing and connecting wires:
Step 3
This 4-Scene controller can be wired using side wire terminal
Pliers
screws or through backwire openings. Choose appropriate wire
Ruler
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept Back wire openings use #14-12 AWG
#14 AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).

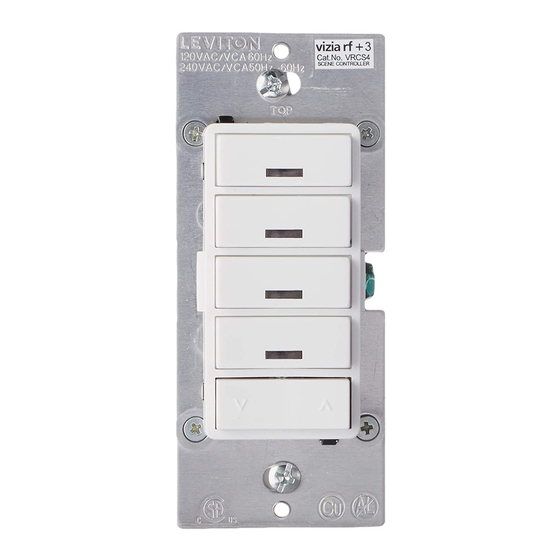

4-Scene Controller
Cat. No. VRCS4-1L
120VAC, 60Hz
INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• Can call up four (4) scene ON/OFF with advanced Programming Remote (see VRCPG).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
4-Scene Contr oller
WH
WIRING 4-SCENE CONTROllER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
Testing your 4-Scene Controller prior to
Step 5
mounting in wall box:
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
4-Scene Controller Mounting:
Step 6
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
:
Restore Power:
Step 7
Restore power at circuit breaker or fuse.
Installation is complete.
Including 4-Scene Controller into Z-Wave
Hot (Blac k)
BK Step 8
Network:
Green
Ground
Line
120VAC , 60Hz
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet.
Neutral (White)
• 4-Scene controllers incuded into a Z-Wave
updated after you have included all other devices.
• If using the VRCPG Install Checklist feature, go to step C.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advanced
Settings. Press the center button to select Network. Press the center
button to <Include Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
4-Scene controller into programming mode.
C) To access Program mode, press and hold
buttons 1 and 3 (refer to figure). Wait
• Position all wires to provide room in 5 seconds until the LED turns Amber.
outlet wall box for device.
Release the buttons and the LED will blink
Amber. You are now in Programming mode.
• Ensure that the word "TOP" is facing up
NOTE: If the LED on the 4-scene controller
on device strap.
turns solid Red while including, there has
• Partially screw in mounting screws in
been a communication error.
wall box mounting holes.
D) While standing close to the 4-Scene
NOTE: Dress wires with a bend as
controller (approximately 1 ft.), press the
shown in diagram in order to relieve
center button on the Programmer/Remote
stress when mounting device.
to <Include> device in the network.
• Restore power at circuit breaker or fuse.
NOTE: If the LED on the 4-scene controller
• LED should turn ON.
turns solid Red while including, there has
If lED does not turn ON, refer to the
been a communication error.
TROUBlESHOOTING section.
NOTE: Only one device may be included at any time.
E) The Primary Programmer/Remote will assign a Home ID, Node ID,
and Name for this device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
NOTE: You may name or edit your device at this time.
F) The 4-Scene controller is now installed in the network.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
