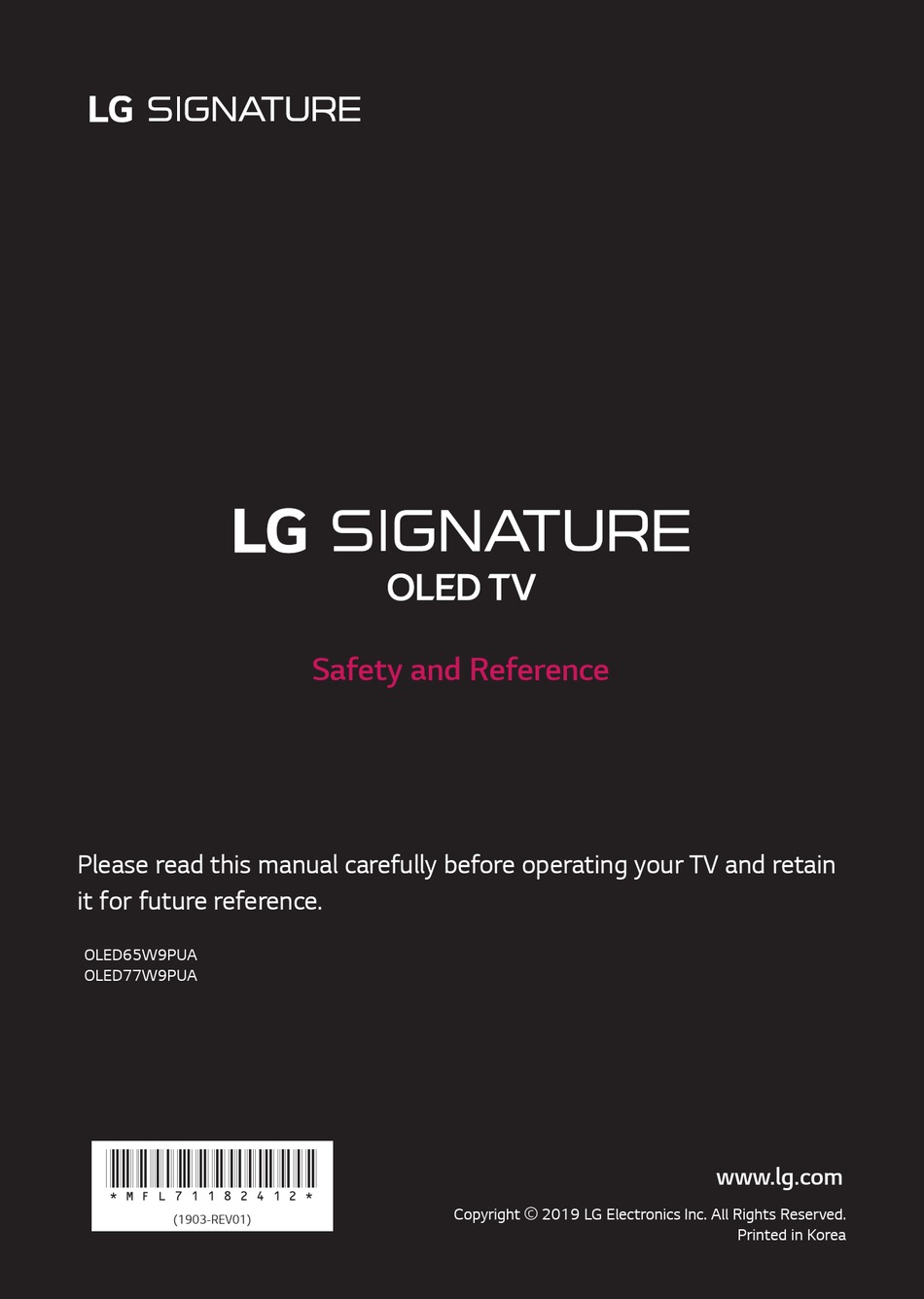

Please read this manual carefully before operating your TV and retain
it for future reference.
OLED65W9PUA
OLED77W9PUA
*MFL71182412*
(1903-REV01)
Safety and Reference
Copyright
2019 LG Electronics Inc. All Rights Reserved.
www.lg.com
Printed in Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLED65W9PUA and is the answer not in the manual?

Questions and answers

Related Manuals for LG SIGNATURE OLED65W9PUA

Summary of Contents for LG SIGNATURE OLED65W9PUA

  • Page 1 Safety and Reference Please read this manual carefully before operating your TV and retain it for future reference. OLED65W9PUA OLED77W9PUA *MFL71182412* www.lg.com Copyright 2019 LG Electronics Inc. All Rights Reserved. (1903-REV01) Printed in Korea...

  • Page 2: Important Safety Instruction

    Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •...
  • Page 3 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials CAUTION while unit is plugged in.
  • Page 4 • Grounding (Except for devices which are not grounded.) • Batteries - TV with a three-prong grounded AC plug must be connected to - Store the accessories (battery, etc.) in a safe location out of the a three-prong grounded AC outlet. Ensure that you connect the reach of children.

  • Page 5: Optional Extras

    Preparing Optional Extras Optional extras can be changed or modified for quality improvement • When the TV is turned on for the first time after being shipped without any notification. Contact your dealer for buying these items. from the factory, initialization of the TV may take approximately These devices work only with certain models.

  • Page 6: Lifting And Moving The Tv

    Lifting and moving the TV •  Avoid touching the screen at all times, as this may result in damage to the screen. •  Do not place the product on the floor with its front facing When moving or lifting the TV, read the following to prevent the TV down without padding.
  • Page 7 Provided item Wall mount Punching Guide Wall • When installing the wall mount, check the positions of the wooden Wall mounting screw studs using a stud finder. Then, fasten the screws on at least two Wall mounting anchor separate studs before proceeding. Ø5 x L65 Stud Wall mounting screw for wood...

  • Page 8: Tools You Will Need

    Tools you will need •  When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables • Phillips head + driver (manual or motorized) / on the back of the TV. Ø...

  • Page 9: Other Connections

    Using the kensington security Other connections system (optional) Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. (For OLED65W9*) The Kensington security system connector is located at the rear of HDMI the Companion Box (AV Box).

  • Page 10: Using Button

    Using Button • If you connect a gaming device to the TV, use the cable supplied with the gaming device. • Refer to the external equipment’s manual for operating You can simply operate the TV functions, using the button. instructions. •...
  • Page 11 Using Magic Remote To use the button, press and hold for more than 1 second. Control (POWER) Turns the TV on or off. (STB POWER) You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV. The descriptions in this manual are based on the buttons on the remote Number buttons Enters numbers.

  • Page 12: Registering Magic Remote Control

    Troubleshooting Registering Magic Remote Control How to register the Magic Remote Control Cannot control the TV with the remote control. •  Check if anything such as tape has been placed over the receiver. To use the Magic Remote, first pair it with your TV. • ...
  • Page 13 Generated Sound •  Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. • Electrical circuit humming/panel buzzing A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product.

  • Page 14: Specifications

    Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &...

  • Page 15: Open Source Software Notice Information

    Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to...
  • Page 16 Important Information for Information on Functions Supporting Image Quality in Preventing Image Retention Relation to Temporary Image Retention OLED is a self-emissive technology, which brings many significant benefits to image quality and performance. As with any self-emitting •  OLED TV offers a function called Pixel Refresher, which helps to display, it is possible for users of OLED TVs to experience temporary prevent temporary image retention.
  • Page 17 Regulatory...
  • Page 18 WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set.

  • Page 19: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 20 LG Customer Information Center Supplier's Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Responsible Party LG Electronics USA, Inc. 1-800-984-6306 Address 1000 Sylvan Ave Englewood 1-888-542-2623 CANADA Cliffs, NJ 07632 Register your product Online! (201)266-2215 www.lg.com The model and serial numbers of the Product are located on the back and on one side of the Product.

  • Page 21: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com P/NO : MFL71445401 (1901-REV00)

  • Page 22: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 23 EXTERNAL CONTROL DEVICE SETUP EXTERNAL CONTROL DEVICE SETUP • Image shown may differ from your TV. Connect the USB to Serial(RS-232C) converter/RS-232C(Serial) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. Note: The type of control port on the TV can be different between model series.
  • Page 24 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...

  • Page 25: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...

  • Page 26: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 28 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 29 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 32 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.

  • Page 34: Network Settings

    SMART TV Quick Setup Guide * Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending on the OS(Operating System). * App icon positions may vary on the platform, depending on the software version. Network Settings 4 If the connection is successful, the "[Connected (Settings) on the remote to...

  • Page 35: Troubleshooting Network Problems

    Troubleshooting Network Problems 1 Press the (Settings) on the remote to Check the AP (Router) or consult your Internet access the settings menu. Point the ( ) [All service provider. Settings] icon and select by pressing the Wheel (OK) button on the remote. When X appears next to Gateway: Unplug the power cord of the AP (Router) and All Settings...

  • Page 36: Updating The Tv Firmware

    SmartShare Connection to Smartphone 1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones). 3 Enable your smartphone to share content files with other devices.
  • Page 37 (1905-REV01) Printed in Korea FRANÇAIS Guide de configuration rapide Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement. OLED77W9PUA OLED65W9PUA OLED65W9* OLED77W9* x 5 (+2) x 8 (+2) x 5 (+2) x 8 (+2) (Ø5 x L65)
  • Page 38 (57.4) (57,4) (3.3) (3,3) (8.1) (8,1) (28.8) (28,8) (11.0) (11,0) 1,446 1 446 3.85 3,85 1,260 1 260 10.0 10,0 OLED65W9PUA Head 515 W (56.9) (56,9) (32.4) (32,4) (0.1) (0,1) (14.7) (14,7) (49.6) (49,6) (3.0) (3,0) (7.7) (7,7) (22.0) (22,0) (5.0)
