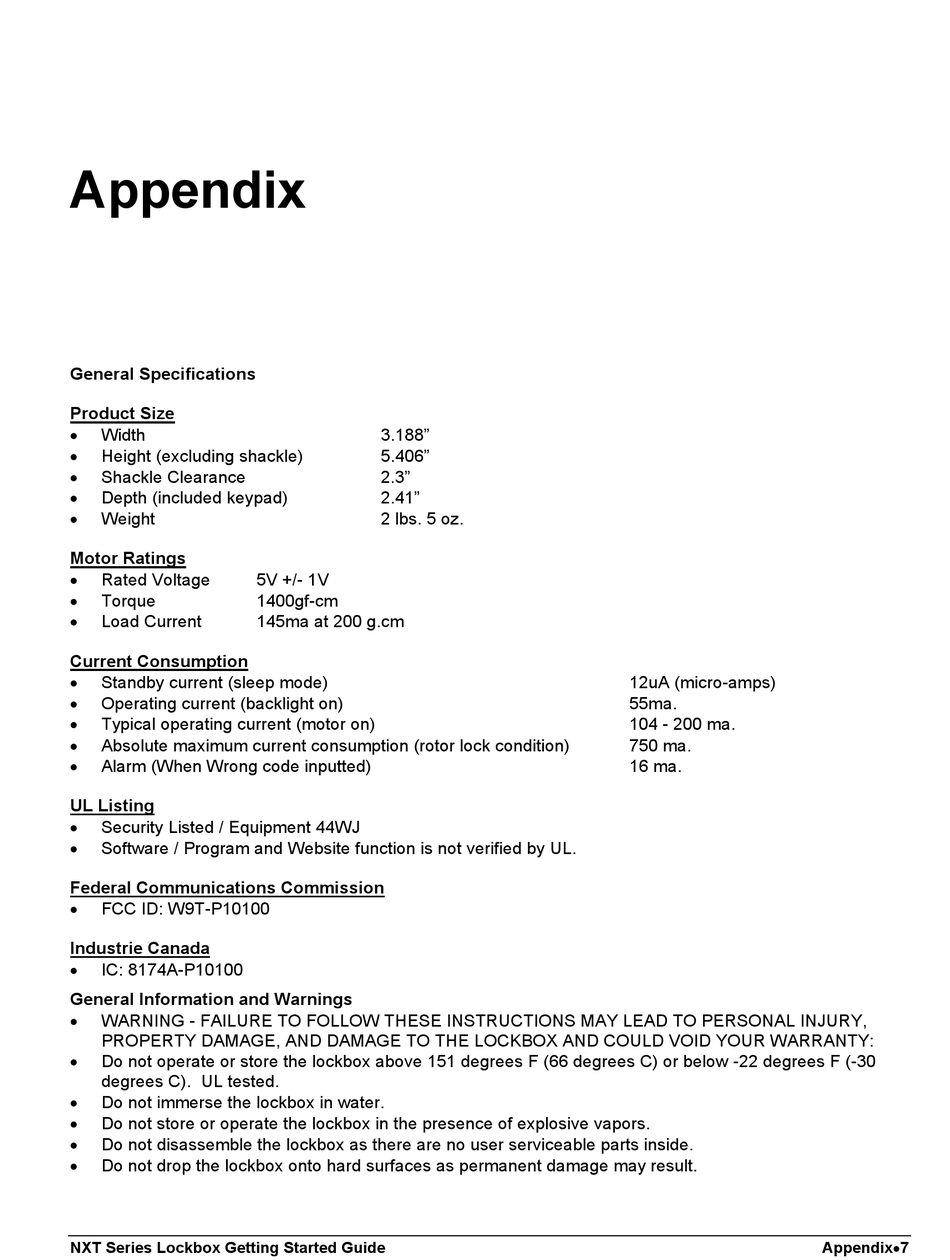

Appendix

General Specifications
Product Size

Width

Height (excluding shackle)

Shackle Clearance

Depth (included keypad)

Weight
Motor Ratings

Rated Voltage

Torque

Load Current
Current Consumption

Standby current (sleep mode)

Operating current (backlight on)

Typical operating current (motor on)

Absolute maximum current consumption (rotor lock condition)

Alarm (When Wrong code inputted)
UL Listing

Security Listed / Equipment 44WJ

Software / Program and Website function is not verified by UL.
Federal Communications Commission

FCC ID: W9T-P10100
Industrie Canada

IC: 8174A-P10100
General Information and Warnings

WARNING - FAILURE TO FOLLOW THESE INSTRUCTIONS MAY LEAD TO PERSONAL INJURY,
PROPERTY DAMAGE, AND DAMAGE TO THE LOCKBOX AND COULD VOID YOUR WARRANTY:

Do not operate or store the lockbox above 151 degrees F (66 degrees C) or below -22 degrees F (-30
degrees C). UL tested.

Do not immerse the lockbox in water.

Do not store or operate the lockbox in the presence of explosive vapors.

Do not disassemble the lockbox as there are no user serviceable parts inside.

Do not drop the lockbox onto hard surfaces as permanent damage may result.
NXT Series Lockbox Getting Started Guide
3.188"
5.406"
2.3"
2.41"
2 lbs. 5 oz.
5V +/- 1V
1400gf-cm
145ma at 200 g.cm
12uA (micro-amps)
55ma.
104 - 200 ma.
750 ma.
16 ma.
