Sentrilock NXT-M Installation Manual

Lockbox
Hide thumbs Also See for NXT-M:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

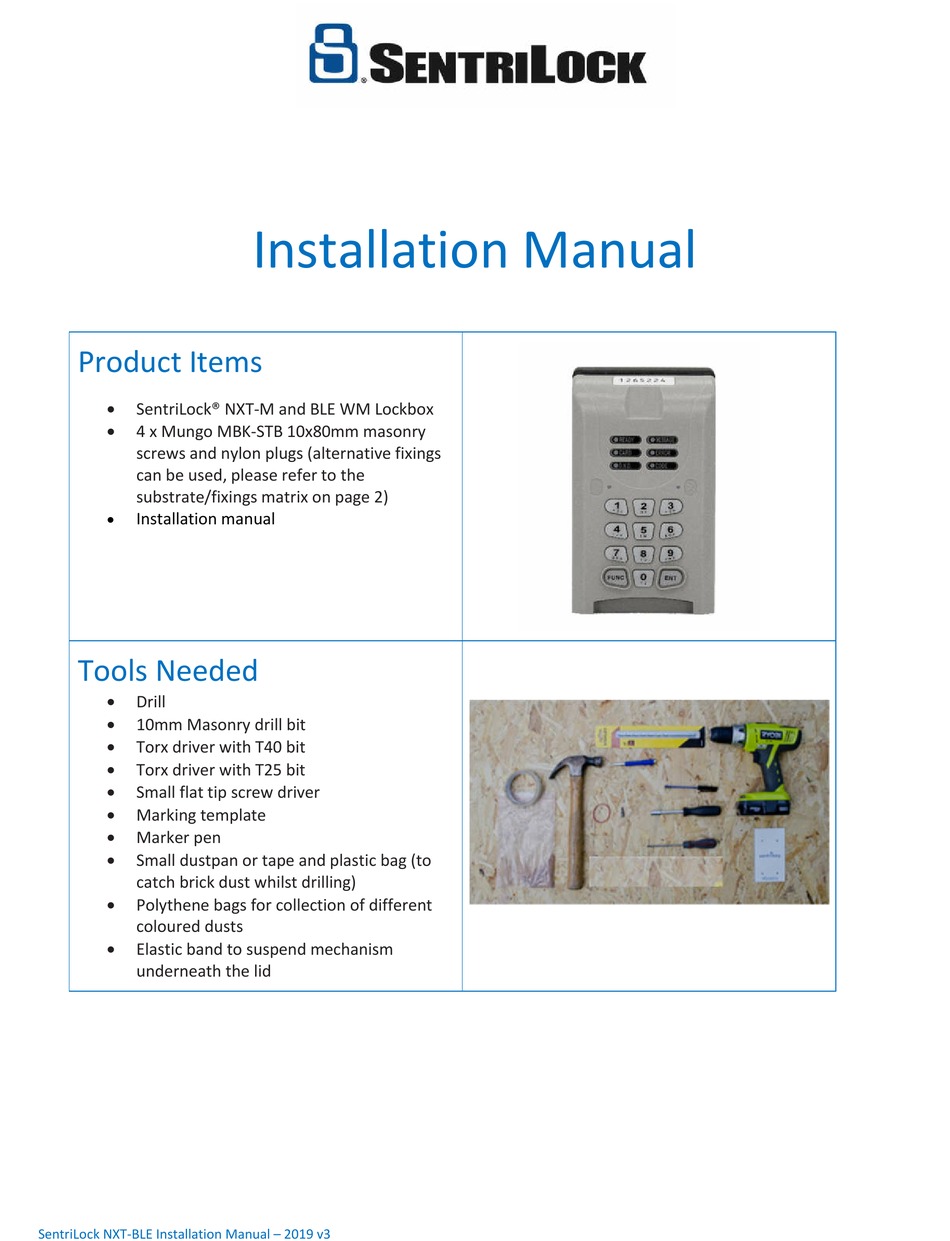

Product Items
SentriLock® NXT-M and BLE WM Lockbox
4 x Mungo MBK-STB 10x80mm masonry
screws and nylon plugs (alternative fixings
can be used, please refer to the
substrate/fixings matrix on page 2)
Installation manual
Tools Needed
Drill
10mm Masonry drill bit
Torx driver with T40 bit
Torx driver with T25 bit
Small flat tip screw driver
Marking template
Marker pen
Small dustpan or tape and plastic bag (to
catch brick dust whilst drilling)
Polythene bags for collection of different
coloured dusts
Elastic band to suspend mechanism
underneath the lid
SentriLock NXT-BLE Installation Manual – 2019 v3
Installation Manual
