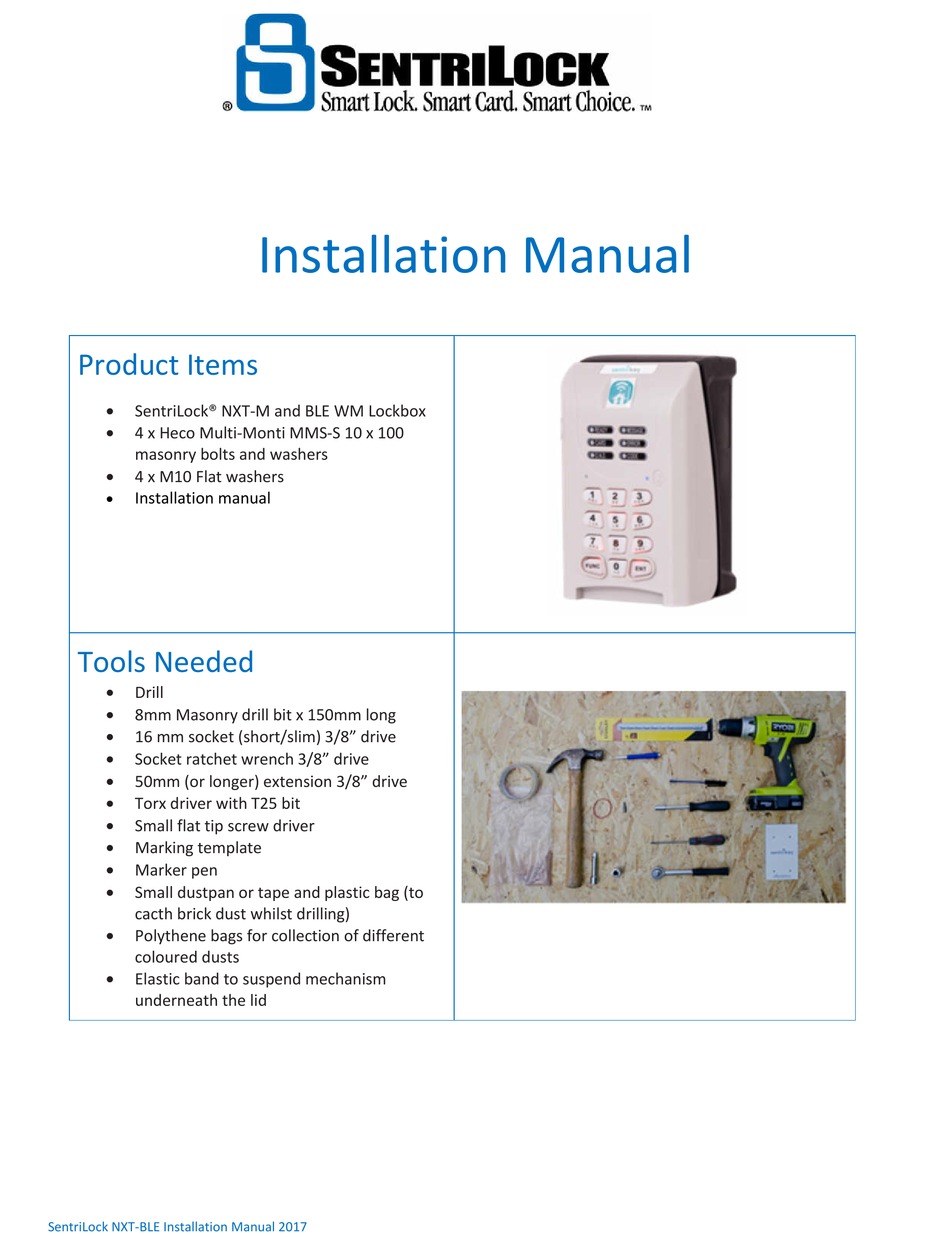

Product Items
SentriLock® NXT-M and BLE WM Lockbox
4 x Heco Multi-Monti MMS-S 10 x 100
masonry bolts and washers
4 x M10 Flat washers
Installation manual
Tools Needed
Drill
8mm Masonry drill bit x 150mm long
16 mm socket (short/slim) 3/8" drive
Socket ratchet wrench 3/8" drive
50mm (or longer) extension 3/8" drive
Torx driver with T25 bit
Small flat tip screw driver
Marking template
Marker pen
Small dustpan or tape and plastic bag (to
cacth brick dust whilst drilling)
Polythene bags for collection of different
coloured dusts
Elastic band to suspend mechanism
underneath the lid
SentriLock NXT-BLE Installation Manual 2017
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXT-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Sentrilock NXT-M

  • Page 1 Installation Manual Product Items SentriLock® NXT-M and BLE WM Lockbox  4 x Heco Multi-Monti MMS-S 10 x 100  masonry bolts and washers 4 x M10 Flat washers  Installation manual  Tools Needed Drill  8mm Masonry drill bit x 150mm long ...
  • Page 2 Installation Manual Before Starting The SentriLock® NXT-M and BLE WM Lockboxes are designed to be mounted directly to a building or other secure structure. The Lockboxes have been certified to Loss Prevention Standard (“LPS”) 1175, Level 2 when mounted in brick and when including render of up to 20mm thickness, using the supplied Heco Multi-Monti MMS-S 10 x 100 masonry bolts and M10 flat washers.
  • Page 3 Leave the lockbox in the open state while installing. Using a T25 Torx screw driver, remove the single center fastener bolt that retains the metal Security Plate and Latching Mechanism. Set aside for re-assembly. SentriLock NXT-BLE Installation Manual 2017 Page 3 of 8...
  • Page 4 This can ensure it is kept out of the way while screwing the Lockbox to the wall Carefully remove the metal Spacer Plate. Use a flat blade screwdriver if necessary. Set aside for re-assembly. SentriLock NXT-BLE Installation Manual 2017 Page 4 of 8...
  • Page 5 Sweep brick dust into a polythene bag for use during deinstallation when filling holes and colouring filler. SentriLock NXT-BLE Installation Manual 2017 Page 5 of 8...
  • Page 6 Re-install the metal Security Plate and the single centre bolt that retains the mechanism box. Torque this fastener to 40.32 kg/cm (35 in/lbs). SentriLock NXT-BLE Installation Manual 2017 Page 6 of 8...
  • Page 7 The latches should retract slightly the first time and then return to the extended position. Test the unit with the door in the open position until you are satisfied the latching system is functioning properly. SentriLock NXT-BLE Installation Manual 2017 Page 7 of 8...
  • Page 8 Installation Manual SentriLock NXT-BLE Installation Manual 2017 Page 8 of 8...
