Summary of Contents for Gate Easy SoftBack 56-270

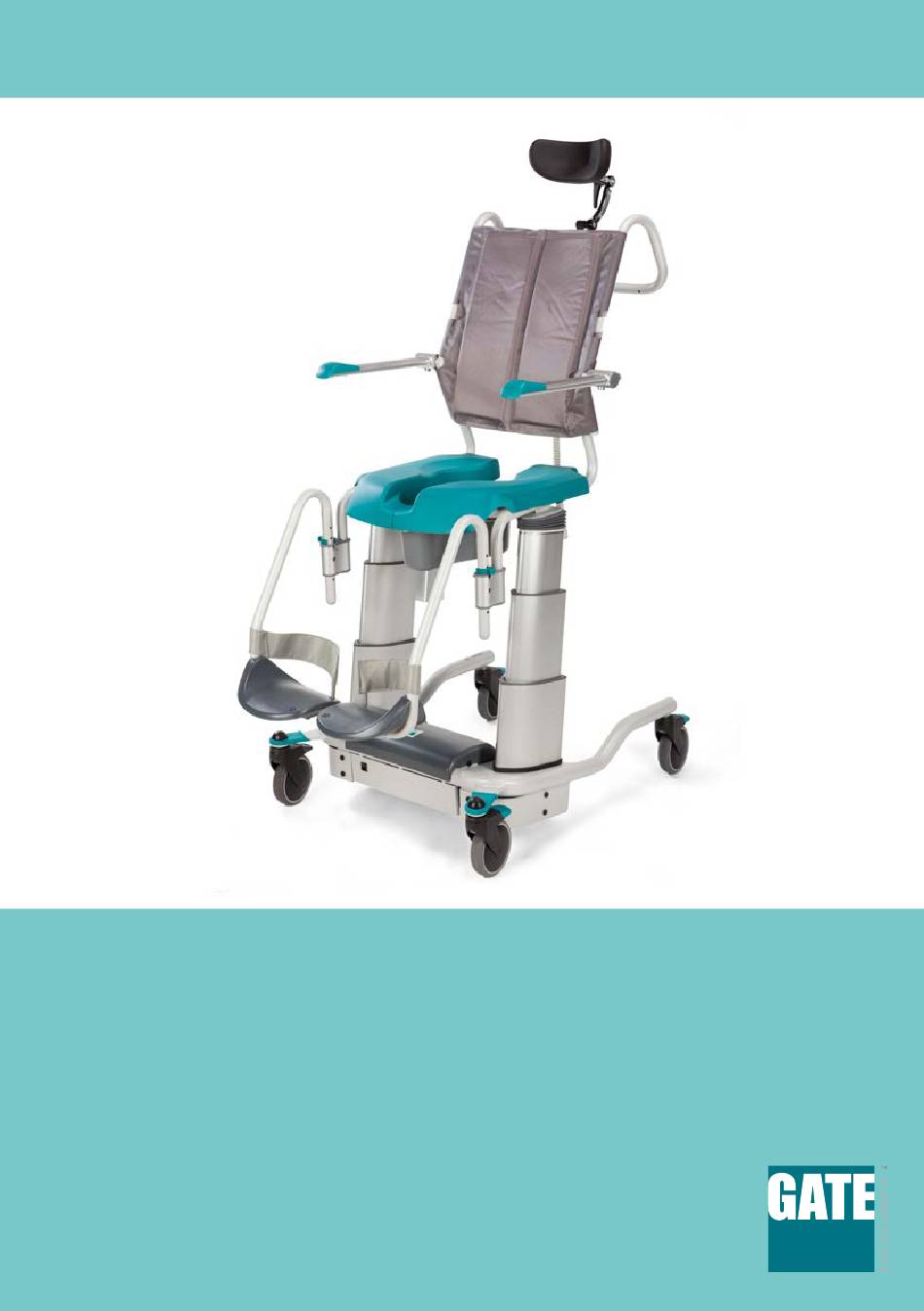

- Page 1 Instructions for use EASY Hygiene chair EASY SoftBack 56-270...
- Page 2 • • • Generell skötselinstruktion Åtgärd Dear customer, Thank you for choosing a rehabilitation aid from GATE Rehab! We hope our product meets or exceeds your expectations. • Torka av gåbord och armstödsplattor vid behov – använd tvållösning These Instructions for Use contain the information users of the product need to know for •...
- Page 3 Depending on the setting, the foot rest may touch the floor or the chair frame. Be aware! The staff at GATE Rehab hope you enjoy extensive use of your new hygiene chair. Before you begin using your chair, the battery must be activated. Do this by pressing...
- Page 4 Changing seat height and tilt angle Normal up/down; Rapid up/down. NOTE! The seat has Rapid Rapid down a soft start for around 5 sec. before the correct speed is achieved. Make sure the footrest does not touch the floor Down when the seat is at lower levels –...
-
Page 5: Battery Charging
Battery charging Charge the battery by connecting the charger supplied to a wall socket and the remote control connector. A discharged battery takes around 12 hours to charge to 80% and 24 hours to reach 100% charge. While the battery is charging, the battery indicator will flash showing actual charge level. -
Page 6: Neck Support
Operate the buttons by pressing them with a pointed object (not sharp). When delivered from GATE, the battery is switched off. Activate the battery by pressing the On button or connecting the charger to the remote control. - Page 7 Driving the chair We recommend using the handlebar when- ever the chair must be moved (with/without a patient). The handlebar is designed so that the chair can be moved forwards and turned (see fig. 12) easily and with the use of little force.
- Page 8 Sanitary pan Footrest / Heel restraint The sanitary pan is slid into position from The foot rest can be easily set to the behind between the seat and wire guides preferred height, swung aside (lift/swing) or as shown in fig. 10. removed (lift away).
- Page 9 Calibration should NOT be done while user is in the chair! Note that all three actuators move during the calibration phase. If not, stop calibration immedi- ately and contact customer service/GATE (or your local dealer).
- Page 10 If charging is not indicated, proceed to 2. service at GATE. Warranty We provide a two-year warranty against any manufacturing defects (does not apply to wear parts or battery). The battery is subject to 6 months' warranty for manufacturing defects.
-
Page 11: Maintenance
Maintenance The chair is made from stainless steel/powder coated tubing and aluminium. Exposed, unpainted parts are made of aluminium or stainless steel. Make sure the product feels firm and stable – no fasteners may be loose. Damaged or defective parts should be replaced as soon as possible. Cleaning, general •... - Page 12 CE marked according to MDD 93/42/EEC. 40/5000. Tested/Approved according to SS-ISO 17966: 2016. (Expected lifetime = 5,3 years.) Would you like to know more? Contact us at: tel +46 (0)371-318 00 Gate Rehab Development AB Industrigatan 2 | S-333 75 Reftele SWEDEN info@gaterd.com | www.gaterd.com...
