Summary of Contents for Gate Amfibi Double HighBack 56-275

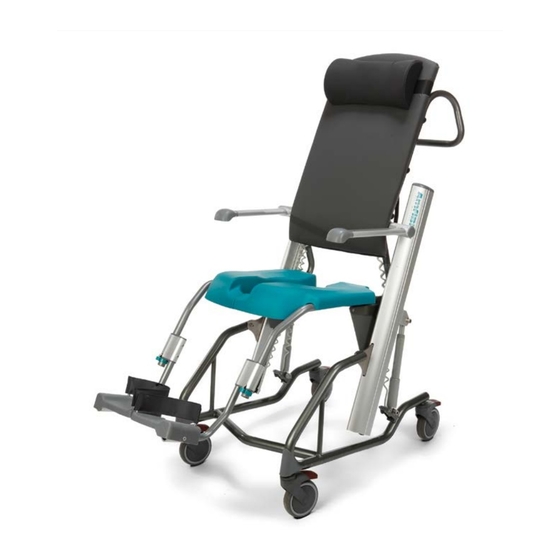

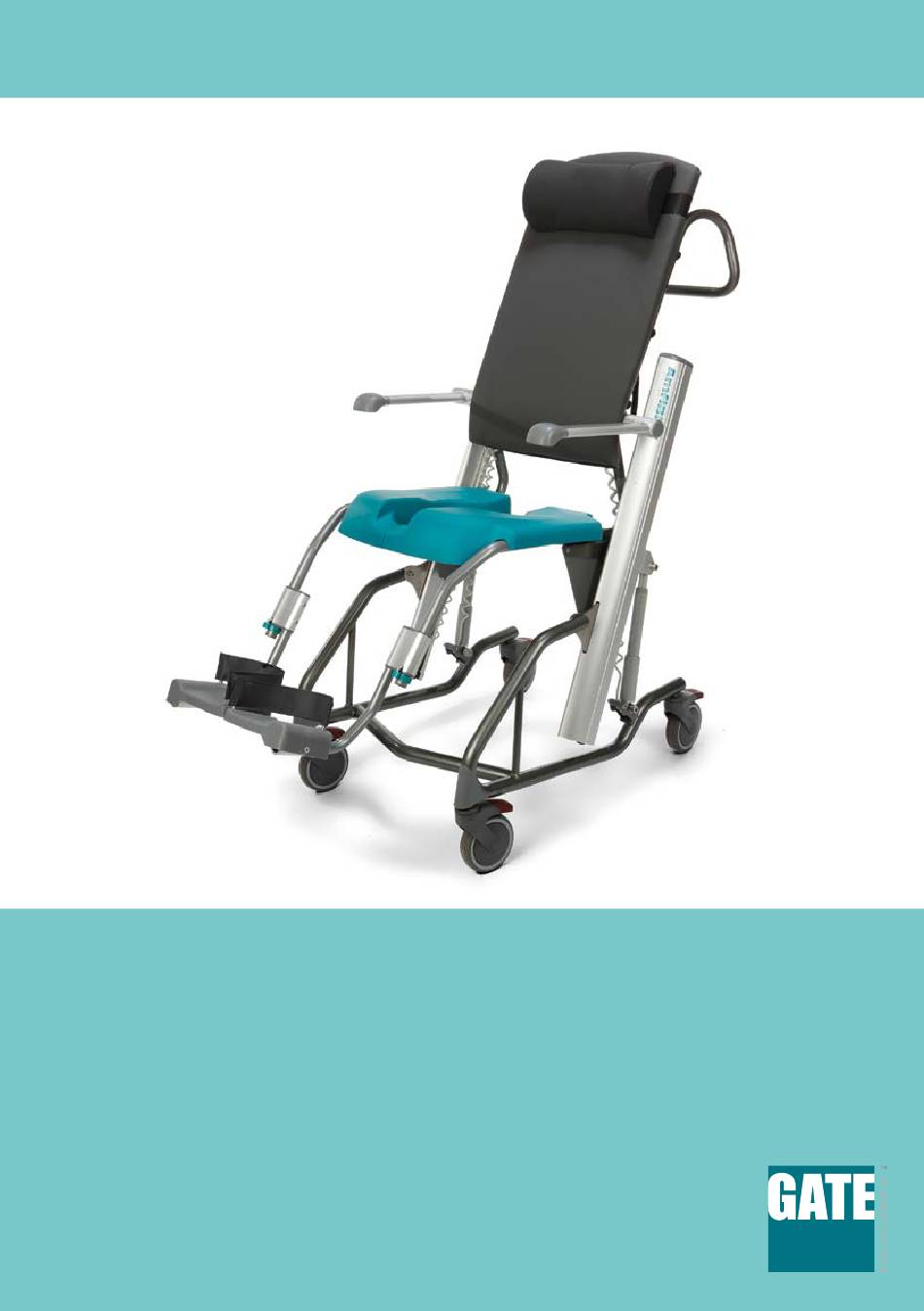

- Page 1 Instructions for Use Amfibi ™ Hygiene chair Amfibi Double HighBack 56-275...
- Page 2 1. Uttag för batterikontakt 2. Uttag för stickpropp Laddning av batteri (OBS! För att IP-klassning ska gälla så ska stickpropp ALLTID vara ansluten till styrbox) Laddning av batteri ska ske då gåbordet inte 3. Uttag för fjärrkontroll används. (Batteriet kan aldrig överladdas.) 4.
- Page 3 Övriga instruktioner • • • Kopplingsschema Styrbox Laddning Batteri Manoeuvring the chair When raising and lowering the seat use the "up" and "down" buttons. The tilt function is controlled by the "forwards" and "backwards" Forwards buttons. Down 1. Uttag för batterikontakt 2.
- Page 4 Tip protection – backwards (Accessory) ktioner • • • Laddning Batteri Amfibi Double is fitted with tip protection that must always be in position/deployed when- ever the chair is reclined backwards. This ensures that the chair cannot tip backwards in unfavourable load circumstances.
- Page 5 Adjustment of the Sanitary pan neck support The sanitary pan is slid into position from Adjust the neck rest by sliding it up or behind between the seat and wire guides down to the desired position. Other neck as shown in figure 7. rest sizes are available as options.
- Page 6 Locking the armrests “Driving” the chair The armrest is locked in the We recommend using the handlebar extended position. whenever the chair must be moved (with/ To lift the armrest, pull out the pin without a patient). The handlebar is (1) and raise the armrest (2).
- Page 7 Övriga instruktioner • • • Battery installation/removal Kopplingsschema Styrbox Laddning Batteri The battery is usually located in the control box and is held in place magnetically. Battery removal: Twist the battery 90° – pull it out. Installation: Slide the battery into the control box.
- Page 8 CE marked according to MDD 93/42/EEC. Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.com | www.gaterd.com...
