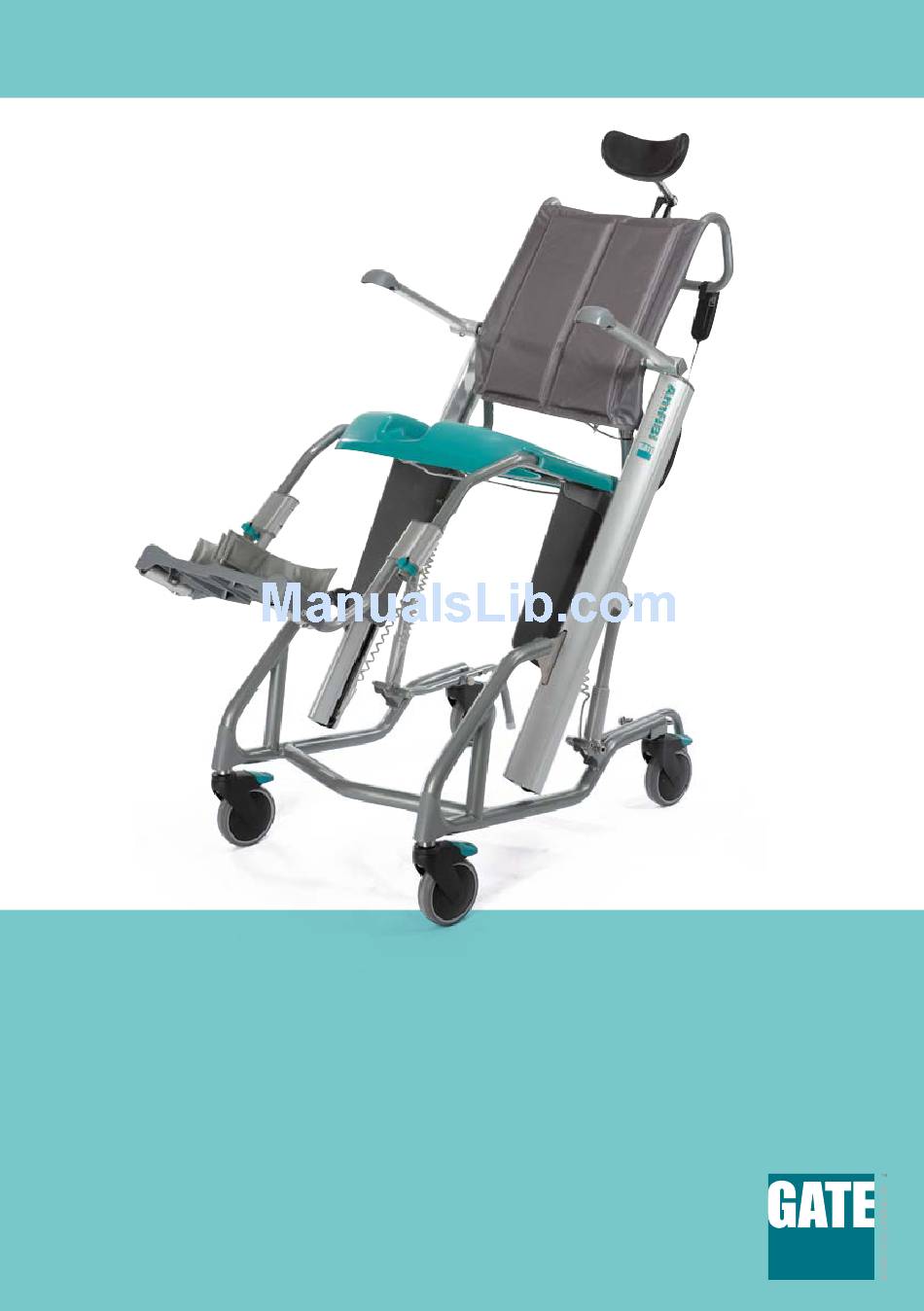

- Page 1 Technical Manual Amfibi ™ Hygiene chair Amfibi Double 56-203DB...
- Page 2 Ratt för fastsättning av nackstöd Ryggstöd Reglage för lutning Parts list Armstöd med glidskydd Armstödspropp Handlovsstöd Bult för låsning/armstöd 56-211-ALU Neck support 58-221 Seat frame Uppsamlingskärl 58-220 Rear frame 58-211 Pinch protection (L/R) Lock 56-256 Armrest (L/R) 58-222 Lower frame Gaskolv för lutning Fästförband för gaskolv 57-288-1...
- Page 4 Spare parts Part no. Description 56-205 Shower seat 56-257-L/R Footrest for adjustable-angle leg support 56-258-DOUBLE Adjustable backrest (foam) 57-752-1 Shrink tubing 1m Accessories Part no. Description 56-205 Shower seat 56-206 Soft seat 56-209 Sanitary pan with lid 56-211-ALU Neck support 56-212-DOUBLE Restraint (52 cm) 56-212...
- Page 5 Cleaning and maintenance Maintenance should be carried out at least once a year. Check/Defect Action Castors Swivel bearings damaged or stiff ......Replace complete wheel. Wheel stiff ..............Clean wheel. If necessary remove wheel, grease the slide bearing with waterproof and tighten the bolt. Tread damaged ............
- Page 6 Technical specifications Materials Aluminium, Plastic ( PP, PP/GS, PA, PA/GS, TPE ) Steel (carbon steel, stainless steel) Frame, ED+Powder Coating (polyester) Electrical system Actuator Up/Down Tilt-function Voltage Gearing Pitch 2 mm Lifting power 1070N 900N Traction 1070N 900N Interlock on lift 17 500N 17 500N Speed w/o load...
- Page 7 We provide two years warranty against manufacturing faults and five years corrosion warranty on frame parts (does not apply to wear parts). For further information or enquiries please contact: Gate Rehab Development AB Isberga Säteri, 333 91 Smålandsstenar, Sweden Tel +46 (0)371-31800 info@gaterd.se...
- Page 8 R I VÅRDEN RTNER I VÅRDEN CE marked according to MDD 93/42/EEC. Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.se | www.gaterd.se YOUR HEALTHCARE PARTNER...
