Summary of Contents for Gate Easy TILT/Gas 56-270

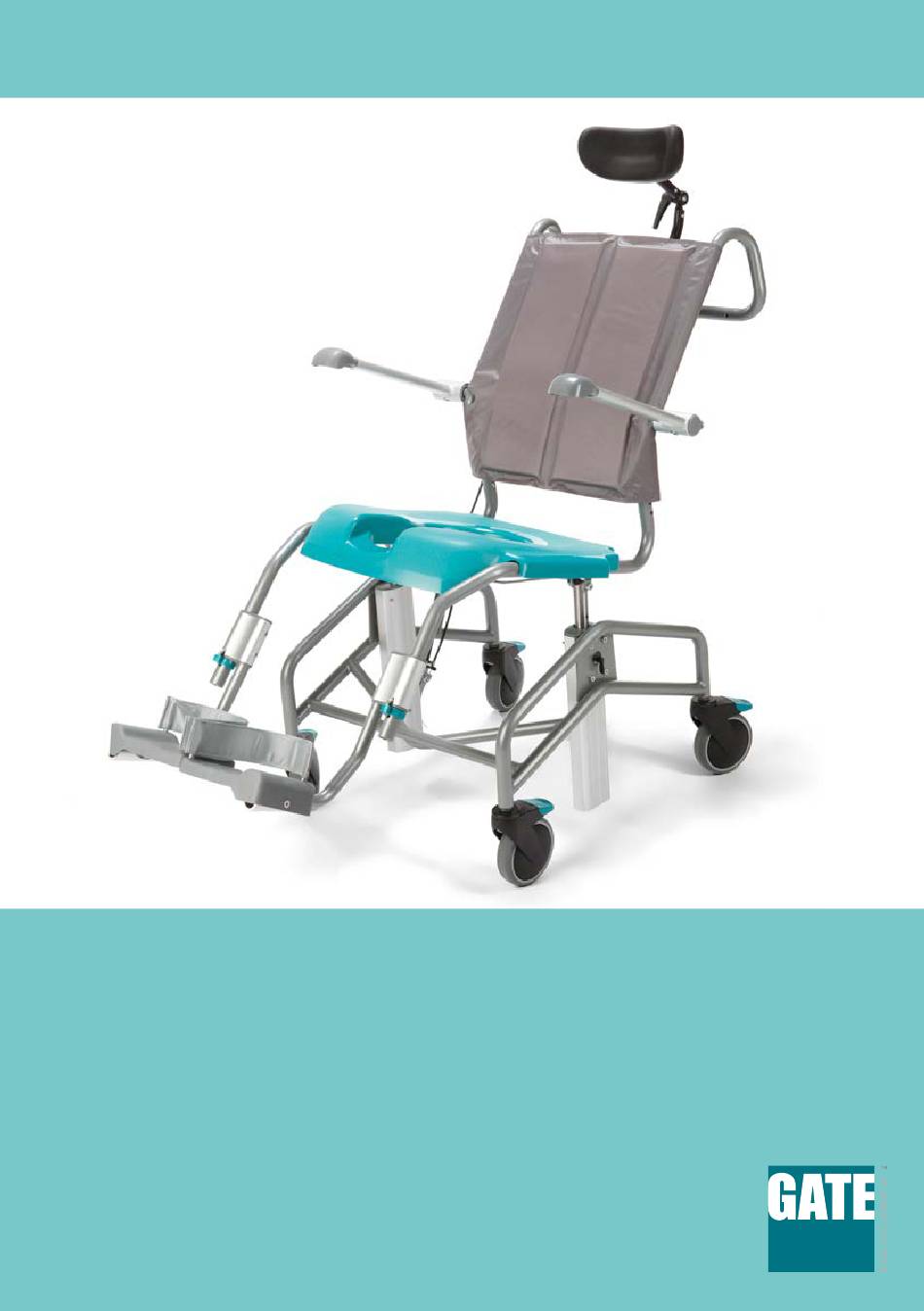

- Page 1 Instructions for use Easy TILT Hygiene chair Easy TILT/Gas 56-270 Easy TILT/El 56-271...
- Page 2 Congratulations on obtaining a Bure Walker! These instructions provide important information on how to use the walker and how to maintain it.. All of us here at GATE Rehab Development hope you enjoy using your new product. 1. Uttag för batterikontakt If you have any comments, questions or points of view, please contact us on: 2.
-
Page 3: Height Adjustment
Height adjustment EASY has a simple height adjustment mechanism. The mechanism consists of toggle locks on either side. The locks have two positions – open and locked. <OPEN> <LOCKED> Övriga instruktioner • • • To change seat height: Kopplingsschema Styrbox Laddning Batteri 1) Flip the toggle locks to the <Open>... - Page 4 Manoeuvring the chair- Tilt/Gas Push the handle; tip the chair forward or rearward 1. Uttag för batterikontakt as desired. Release the handle when the chair is in 2. Uttag för stickpropp Laddning av batteri (OBS! För att IP-klassning ska gälla så ska the desired position.
- Page 5 Foot support / heel restraint a) The foot support can be adjusted in height by removing the clips (see figure 9) and moving the foot support to the desired height (make sure to replace the clips). b) The foot support can be swung to the side by grasping it at arrow B and lifting/swinging.
- Page 6 Installing seat with the rear opening (accessory) The seat comprises two halves that are snapped in place with the aid of clamps on the seat’s underside. Locking the armrests Driving the chair The armrest is locked in the extended We recommend using the handlebar position.
- Page 7 Övriga instruktioner • • • Battery installation/removal - Only Easy Tilt/EL Kopplingsschema Styrbox Laddning Batteri The battery is usually located in the control box (in a bag behind the back strap) and is held in place magnetically. Battery removal: Twist the battery 90° – pull it out.
-
Page 8: Maintenance
8. Height adjustment mechanism – check that the seat can be locked on both sides regardless of height. Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.se | www.gaterd.se YOUR HEALTHCARE PARTNER...
