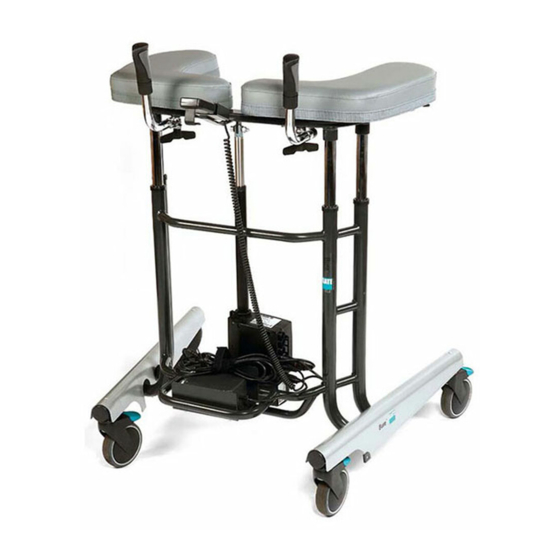

Bure XL Bure XL was designed for the bigger, heavier patient and therefore provides extra space and strength. Because extra powerful aids are required in the care and nursing of heavier patients, Bure XL is always supplied with electric drives. -
Page 4: Parts List
BUR E XL 1. Parts list Armrest End bushing/plastic Knob Wheel Plastic washer Bolt Washer Washer Handle and grip Protective plate (left/right) Clamp Knob Upper frame Remote control Holder/remote control Battery Control box Chromium-plated tube Actuator (raise/lower) Attachment bolt Bolt, washer (2 pcs), Washer nut (attachment at bottom and End bushing... - Page 5 TEC HN I CAL MANU AL G ATE RD .SE...
-
Page 6: Spare Parts
3. Accessories Part no. Description 56-334 Drip holder 56-335 Attachment for drip holder 56-336 Oxygen holder 56-337 Side support, adjustable 56-338 Drip rod complete with attachment 56-386 Footplate, Bure XL (plate) 56-389 Soft basket with attachment G ATE RD .SE... -
Page 7: Other Instructions
TEC HN I CAL MANU AL 4. Other instructions Control box wiring 1. Battery terminal socket. 2. Plug socket. (NOTE: Plugs must ALWAYS be connected to the control box for IP classification to be valid.) 3. Remote control socket. 4. Socket for the raise/lower actuator. NOTE: Make sure that plugs are connected to the correct sockets otherwise the actuators may be damaged. -
Page 8: Safety Instructions
(metals, plastics, electronics) should be recycled). 9. Warranty We provide two years warranty against manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Gate Rehab Development AB Industrigatan 2, S-330 21 Reftele tel 0371-318 00 info@gaterd.se A DIRECT HEALTHCARE GROUP COMPANY G ATE RD .SE... -
Page 9: Technical Specifications
TEC HN I CAL MANU AL 10. Technical specifications “LIFT” denotes suitable handhold for lifting the walker NOTE: At least two people are required for lifting. Product weight: 29 kg Max user weight: 240 kg G ATE RD .SE... - Page 10 BUR E XL G ATE RD .SE...
- Page 11 TEC HN I CAL MANU AL G ATE RD .SE...
- Page 12 A DIRECT HEALTHCARE GROUP COMPANY Gate Rehab Development AB Industrigatan 2 Reftele, Sverige S-330 21 T: 0371-318 00 F: 0371-318 01 E: info@gaterd.se LIT-00110 Issue 1 Date: January 2020 G AT E R D . S E...
