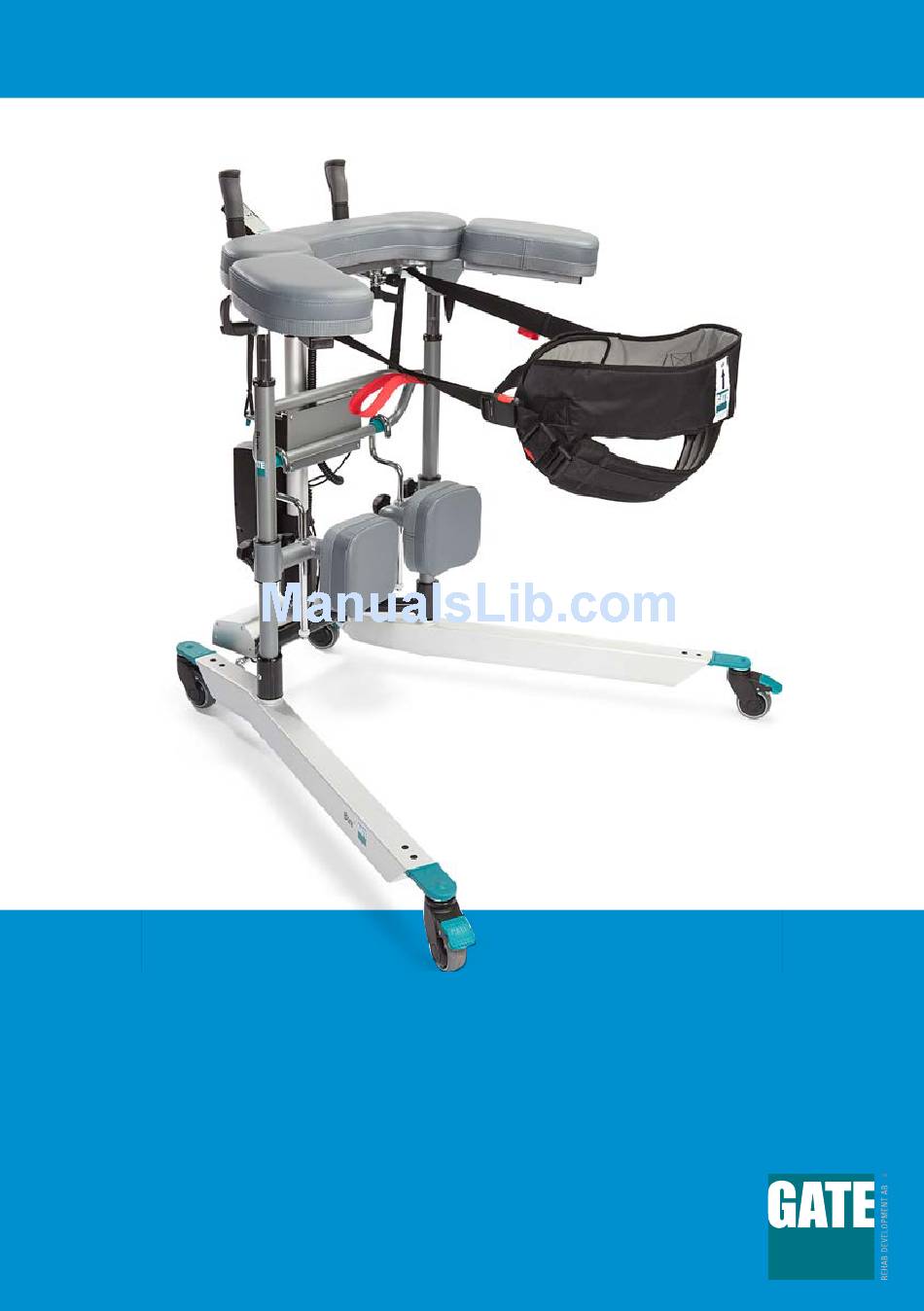

- Page 1 Technical manual digital Bure Rise & Go ™ Walker with stand-up aid and electrically driven frame width adjustment Bure Rise & Go DB 56-309...
- Page 3 Replacement parts list 1a 58-306-L Armrestpad left 14 58-302 Bearing (x2) Cross section 1b 58-305 Armrestpad center 15 58-353 Turn axle, beam 1c 58-306-R Armrestpad right 16 57-776 Cover, Wheel 2a 58-363 Frame/Armrest center 57-775 Washer, wheel 2b 58-304-L/-R Frame/Armrest center 17 58-360 Cover, Wheelplate (PA) (left/right)
- Page 4 Electrical system – Technical data Widening Actuator Lift Producer T-Motion T-Motion Voltage Push 2000N 1000N Pull 2000N 1000N 1000N Selflocking push 1000N 2,8 A Current 4,6 A Black Colour Black 400mm 55mm Stroke Mounting dim 605mm 167mm Encapsulation IP66 IP66 IEC 60601-1 3rd revision Controlbox + Battery Producer...
- Page 5 Control box wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE! Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. Socket for the height adjustment actuator.
- Page 6 Charge the battery. Contact customer services. Frame parts There is no mechanical damage. If damage is present, contact GATE’s customer services. There are no scratches. Touch up as necessary. End plugs/lower frame fitted.
- Page 7 Warranty We provide two years’ warranty for manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Gate Rehab Development AB Industrigatan 2, SE-330 21 Reftele, Sweden Tel: +46 (0)371 31800 info@gaterd.com...
- Page 8 CE marked according to MDD 93/42/EEC SE Patent No. SE534997. Patent pending in other countries Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.se | www.gaterd.se YOUR HEALTHCARE PARTNER...
