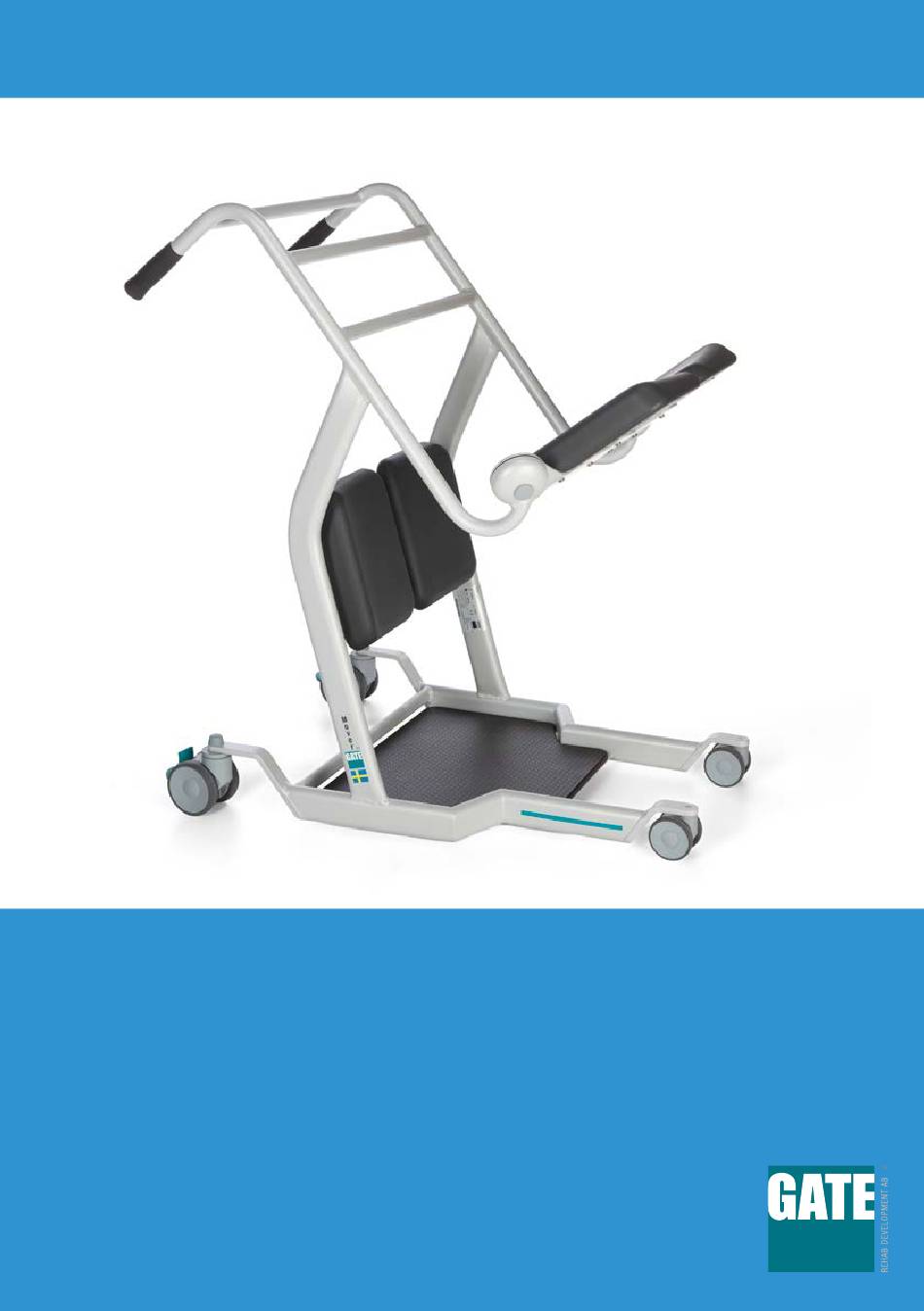

- Page 1 Operating instructions Mover Aqua Transfer platform Mover 53-301...
- Page 2 General information Thank you for purchasing this transfer platform from GATE. Please read these operating instructions carefully and contact us if you have any questions about the use or maintenance of the "Mover – Transfer Platform". Foreword Please read the full instructions before using the product. It is important to under- stand the information in the operating instructions so the product can be correctly used and maintained.
-
Page 3: Intended Use
Intended use The Mover – Transfer Platform is a mobile transfer platform with a safe working load of 180 kg. The product is intended for indoor use on flat surfaces for moving care recipients and residents at hospitals, nursing homes or in home healthcare. The product is only intended to be used for care recipients who are able to stand up without assistance or who can stand with minimal assistance. -
Page 4: Safety Instructions
ID labelling 53-301 Mover Aqua 1. Article number 2. Product name 3. Date of manufacture 180 Kg 4. Maximum user weight 5. Serial number 6. EAN code riga instruktioner • • • plingsschema Styrbox Laddning Batteri Safety instructions ag för batterikontakt ag för stickpropp Laddning av batteri För att IP-klassning ska gälla så... -
Page 5: Product Description
Product description Handlebars/handles for manoeuvring Upper crossbar/handle Middle crossbar/handle Lower crossbar/handle Hinged half-seats/seat cushions Shin support Front castors with no brake Step Rear castors with full brake... - Page 6 How to use the "Mover" Turn the cushions 1) Hold the half-seat by the handle in the upper corner. 2) Turn the half-seat either away from the moving area or to a position underneath the care recipient Pull and release the brakes on the rear castors 1) Lock the brakes 2) Release the brakes...
- Page 7 How to use the "Mover" How to carry out a move/transfer. 1. The steps shown below are for a transfer from one chair/wheelchair/bed/toilet to another, but it is done in the same way regardless of whether the movement/transfer is carried out from a chair, bed, wheelchair or toilet. 1) Fold up the two half-seats.
- Page 8 How to carry out a move/transfer, continued 5) Fold down the two half-seats. 6) Ask the care recipient to sit down. Release the brakes and move the care recipient. Please note: The care recipient should be seated during movement. 2. To carry out a transfer to a chair/wheelchair/bed/toilet, you carry out the above steps in reverse order.
-
Page 9: Care And Maintenance
Care and maintenance Preventive maintenance schedule If the product, when checked, has faulty/broken parts, it must not be used until the faulty parts have been replaced. Action/Checks Before each use Annual overhaul Carry out a general inspection -test the product's functions. -
Page 10: Technical Specifications
Technical Specifications Pos. No. Art. number Description 53-341 End screw M10, Ø30 mm 53-342 Screw, Knee support plate (x4) 53-344 Rubber handle, L=92 mm (x2) 53-311 Step Aqua 53-336 Screw, Seat plate (x3) 53-337 Screw, step (x4) 53-338 Washer, seat plate (x3) 53-339 Locknut, M10 53-340... - Page 11 Technical specifications...
- Page 12 Dimensions Product weight = 28 kg 940 mm 960 mm Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-333 75 Reftele info@gaterd.com | www.gaterd.com WE DO BETTER.
