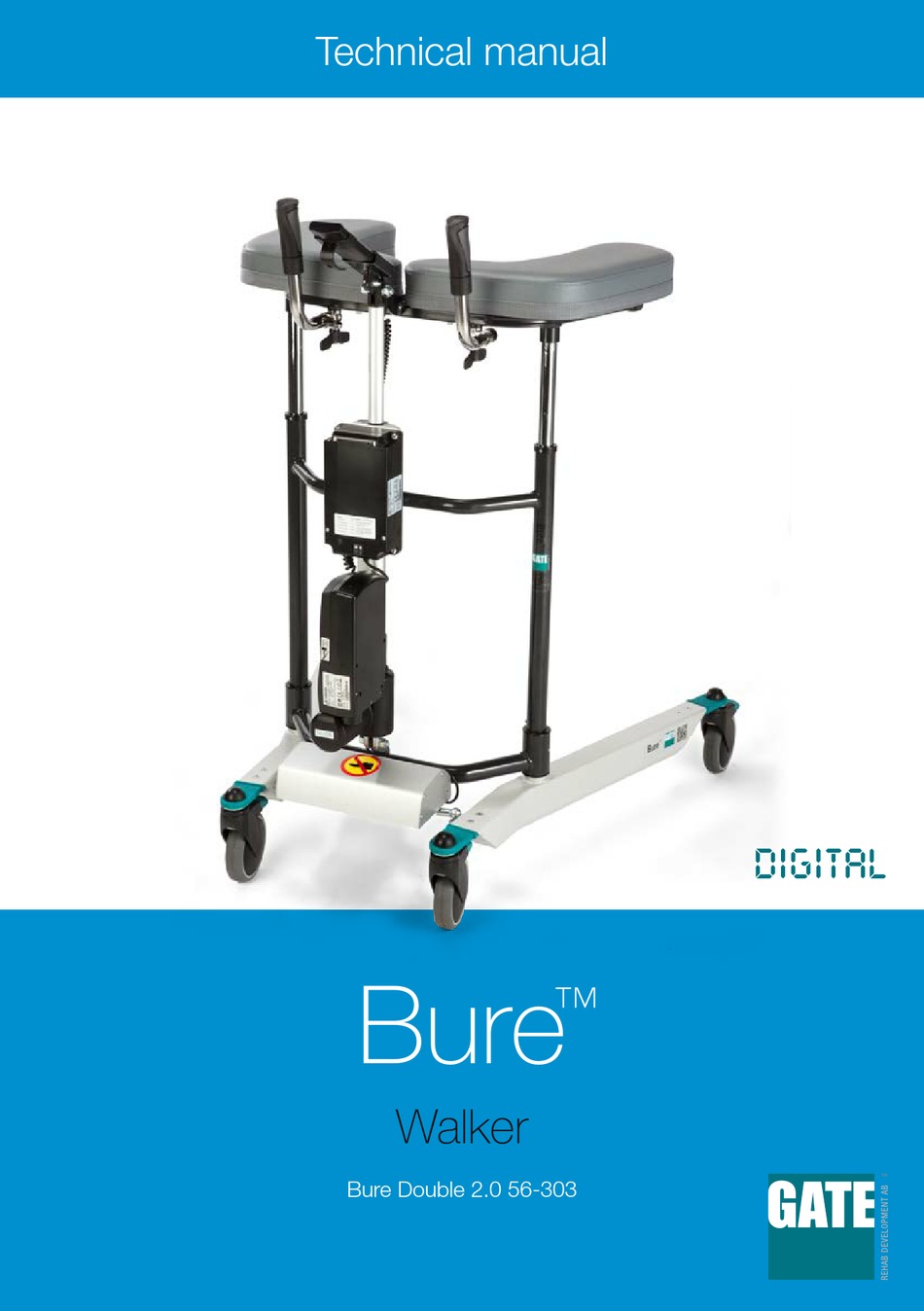

- Page 1 Technical manual digital Bure ™ Walker Bure Double 2.0 56-303...
- Page 3 Replacement parts list 57-306 Armrestpad left 11 58-378 Actuator, widening 57-305 Armrestpad right (TiMotion) 12 58-364 Circular plate 58-365 Frame/Armrest 57-041-3 Holder, Remote- 13 58-352 Cross section control (TH7) 14 58-302 Bearing (x2) Cross section 57-369 Clamp/Battery (alu) 57-370 Plate Clamp/Battery 15 58-353 Turn axle, beam (alu)
- Page 4 Electrical system – Technical data Widening Actuator Lift Producer T-Motion T-Motion Voltage Push 2000N 1000N Pull 2000N 1000N 1000N Selflocking push 1000N 2,8 A Current 4,6 A Black Colour Black 400mm 55mm Stroke Mounting dim 605mm 167mm Encapsulation IP66 IP66 IEC 60601-1 3rd revision Controlbox + Battery Producer...
- Page 5 Control box wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE! Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. Socket for the height adjustment actuator.
- Page 6 Charge the battery. Contact customer services. Frame parts There is no mechanical damage. If damage is present, contact GATE’s customer services. Touch up as necessary. There are no scratches. End plugs/lower frame fitted.
- Page 7 Warranty We provide two years’ warranty for manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Gate Rehab Development AB Industrigatan 2, SE-330 21 Reftele, Sweden Tel: +46 (0)371 31800 info@gaterd.com...
- Page 8 CE marked according to MDD 93/42/EEC SE Patent No. SE534997. Patent pending in other countries Would you like to know more? Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.se | www.gaterd.se YOUR HEALTHCARE PARTNER...
