84

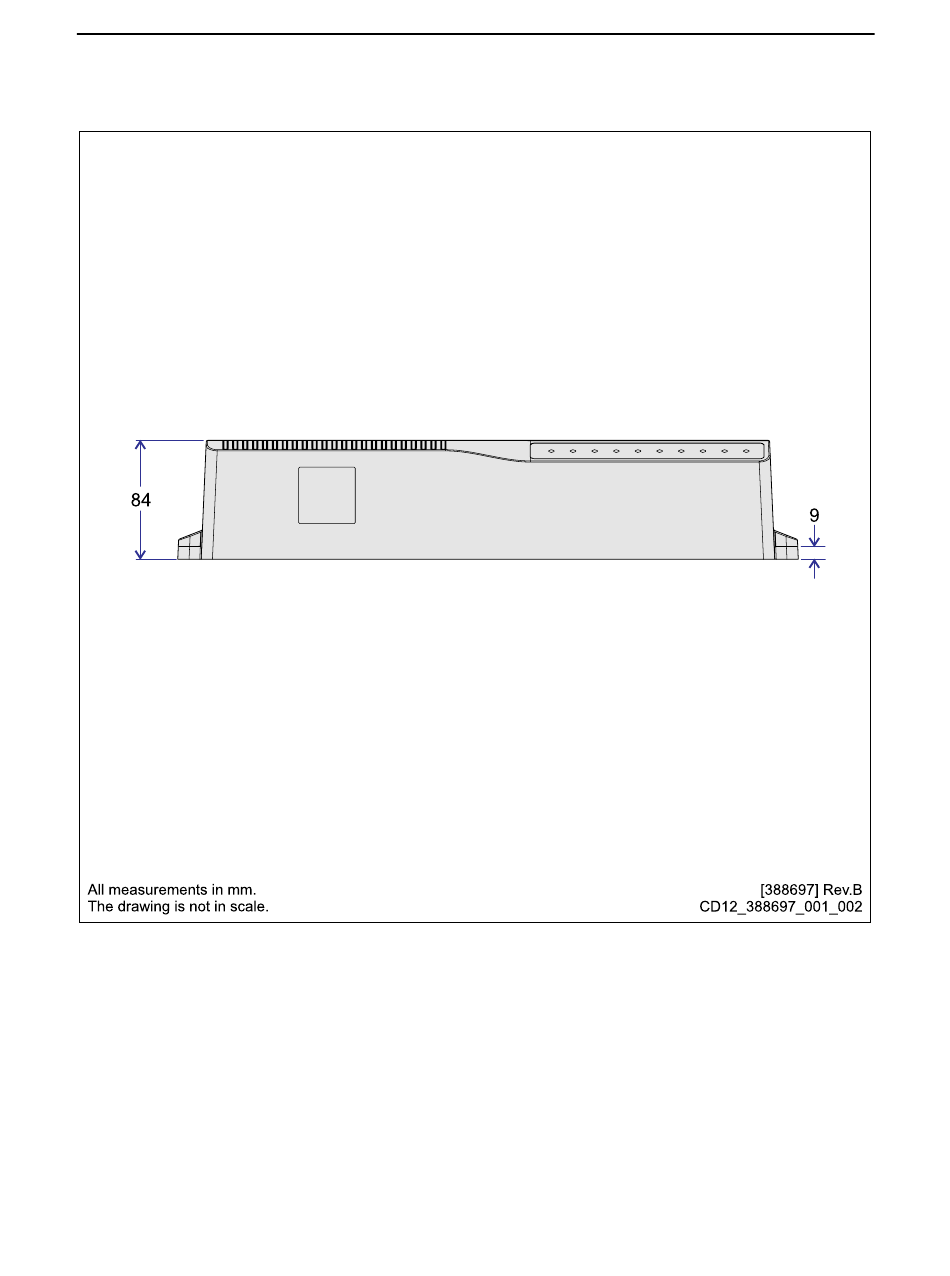

All measurements in mm.
The drawing is not in scale.
Related topics
Wide Band Transceiver (WBT) description, page 20
Basic items provided with a standard delivery, page 27
Installing the Wide Band Transceiver (WBT) using the integrated brackets, page 57
Installing the Wide Band Transceiver (WBT) in a 19" rack, page 59
Weight and outline dimensions, page 219
394149/C
Drawing file
9
[388697] Rev .B
CD12_388697_001_002
