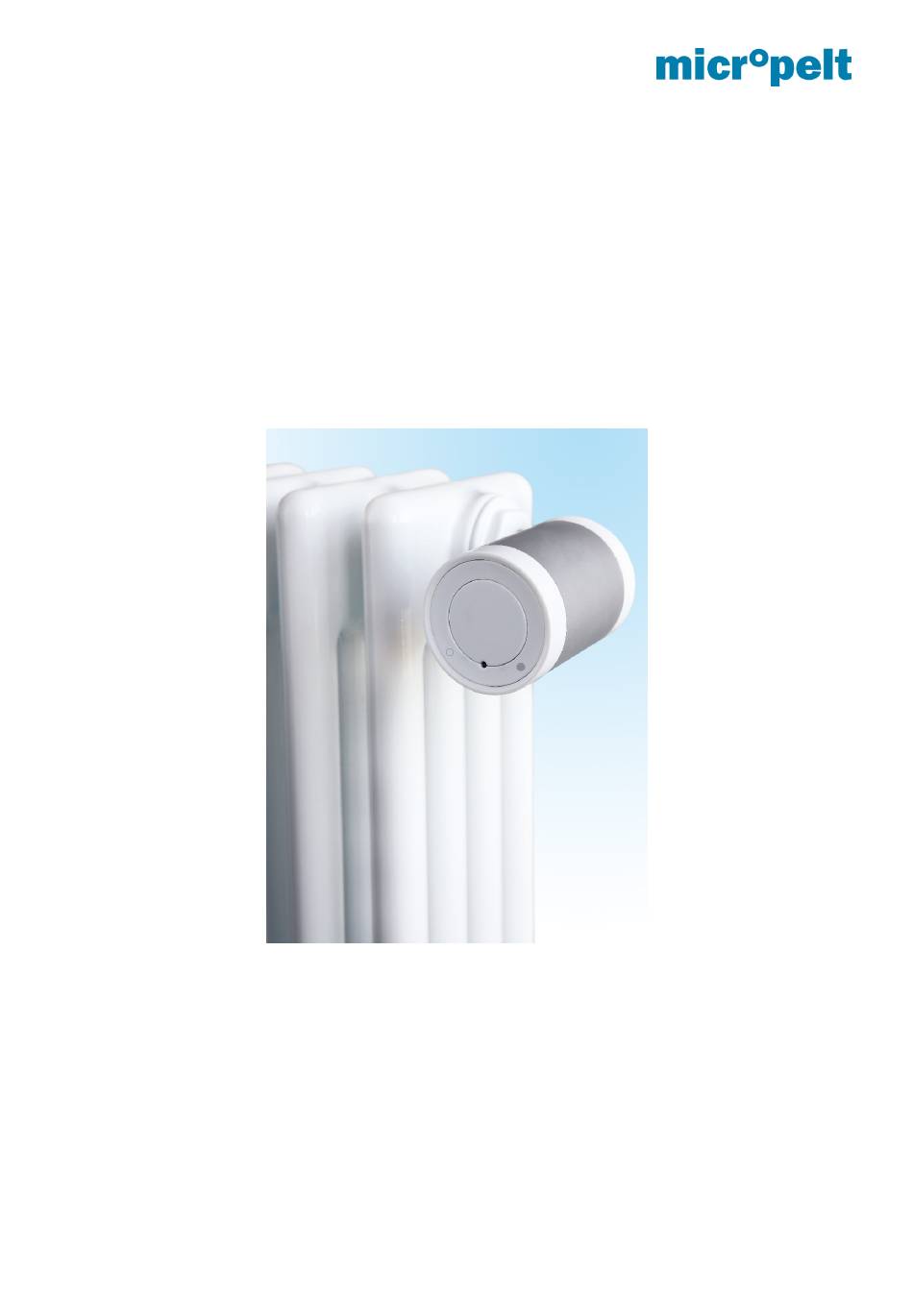

- Page 1 Wireless heating valve actuator MVA004 EnOcean User manual and device specification Annex: List of adapters and theft protection August 2017 Author: EH4; Germany; Brand: Micropelt - Document number 1DSMVA004_0817v11e...
-
Page 2: Table Of Contents
MVA004 User manual and device specification INDEX INDEX Document history Use and safety recommendations System description Energy harvesting User Control – Quick overview table Installation with Manual Pairing ... -
Page 3: Document History
MVA004 User manual and device specification Document history Date Description Version Status 06.04.2017 First release 0817_v2e Released 01.05.2017 Added section 5.5 Remote Commissioning 0817_v3e Released Added Section 9 and 10 24.05.2017 Minor changes 0817_v4e Released 03.06.2017 Added ReCom commands table 0817_v4e Released Added DO example descriptions... -
Page 4: Use And Safety Recommendations
MVA004 User manual and device specification Use and safety recommendations The metallic part of the unit’s housing serves as a heat sink. Be sure that the air circulation around it is not obstructed by furniture, curtains, plants, or other objects. ... -
Page 5: System Description

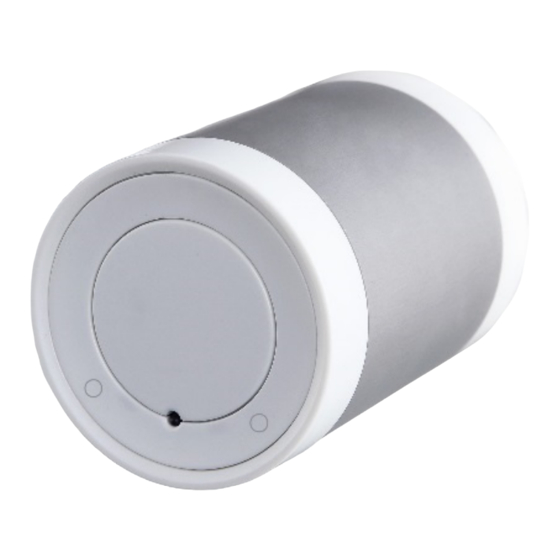

MVA004 User manual and device specification System description This document defines the properties of Micropelt’s battery free thermostatic radiator valve MVA004. The unit is directly mounted onto radiator valve bodies (M30x1,5 thread), where it controls the room temperature, based on signals of a central controller. It is radio-controlled and powered by energy harvesting, so it neither requires any cabling work nor does it consume batteries. - Page 6 5 seconds. It is strongly recommended to use script command sets (contact Micropelt for examples) and execute ReMan only for initial teach over the air (Link Table) and device configuration following its initial deployment.
-
Page 7: Energy Harvesting
MVA004 User manual and device specification Energy harvesting The actuator generates the necessary electrical energy for operation by means of a thermoelectric generator (TEG), which gains electrical energy from the temperature difference between radiator flow and room temperature. During the heating season, excess energy is accumulated in the internal storage for operation in transition periods and summer. -
Page 8: User Control – Quick Overview Table
MVA004 User manual and device specification User Control – Quick overview table The below tables provide a quick overview of the product functionality and the installation process. MORE DETAILED DESCRIPTION IN SECTION 8. 5.1 Installation with Manual Pairing Objective Button Action LED Activity Reasons for... - Page 9 MVA004 User manual and device specification controller / gateway 3x red motor immediately after RESET. (communication problems error, mounting error) August 2017 Page 8 of 23 1DSMVA004_0817v11e...
-
Page 10: Installation With Remote Commissioning
MVA004 User manual and device specification 5.1 Installation with Remote Commissioning Objective Button Action LED Activity Reasons for failure Mounting Mount the actuator before executing run-in sequence and normal operation Run-in 1 OR 2 Single-press (< 1 sec) Success: Single Motor or gear sequence and Unit executes run-in sequence;... -
Page 11: Notes On Radio Operation
MVA004 User manual and device specification Notes on radio operation Transmission range The radio transmission range is limited by both the distance between transmitter and receiver, and by interference. Indoors, building materials play an important role. Major reflections and signal losses are due to metallic parts, such as reinforcements in walls and metallized foils, which are used on thermal insulation products. -
Page 12: Eep A5-20-01 Description
MVA004 User manual and device specification EEP A5-20-01 description Bidirectional radio communication occurs periodically according to the EnOcean Equipment Profile “EEP A5- 20-01” (Battery Powered Actuator). Communication is triggered by the actuator. Protocol Data Overview Transmit mode from MVA to controller/ Receive mode from controller / gateway / gateway/ server server to MVA... -
Page 13: Description Of Individual Functions
MVA004 User manual and device specification Description of individual functions Based on section 7.2 7.2.1 Setpoint Selection (DB1.2, RCU to MVA004) Selection whether A5-20-01 and the actuator is used with Valve Position (Controller running in the room or building control system) or with its internal temperature control loop. 7.2.2 Valve position [%] and Set temperature [°C] in actuator mode (DB3, RCU to MVA004) The external radio partner transmits the temperature setpoint for the internal controller (0 ... - Page 14 MVA004 User manual and device specification DB0.7…DB0.0 = 0x08: Data telegram Radio protocol from server /controller /gateway to valve actuator VALVE POS: Example in HEX "0x05 0x77 0x00 0x08" DB3.7…DB3.0 = 0x05 = 5: new valve position is 5% ...
-
Page 15: Enocean Remote Management (Reman), Remote Commissioning (Recom)
MVA004 User manual and device specification EnOcean Remote Management (ReMan), Remote Commissioning (ReCom) 8.1 EnOcean Link Table MVA004 supports the following number of tech-in relationships: Inbound EnOcean Link Table: 0 Teach-in relationships (not existing) Outbound EnOcean Link Table: 3 Tech-in relationships Comments: MVA004 uses an outbound link table only, inbound relationships are not supported. -
Page 16: Recom Supported Standard Functions
MVA004 User manual and device specification 8.4 ReCom supported standard functions Remote Commissioning Mandatory Commands Bundle: Remote Commissioning Acknowledge Get Product ID Query & Response EnOcean Link Table Basic Commands Bundle Get Link Table Metadata Query & Response ... -
Page 17: Recom Supported Mva Internal Parameter
(0x00 … 0xFF) 0 … 255 = 10x Voltage READ ONLY Example 0x21 = DEZ 33 : 10 = 3,3Volt Please contact Micropelt to receive related xml (DDF) file with further technical details. August 2017 Page 16 of 23 1DSMVA004_0817v11e... -
Page 18: Dolphin View Do Command Examples
MVA004 User manual and device specification 8.6 Dolphin View DO command examples UNLOCK SYS_EX: C0 02 7F F0 01 FF FF FF FE Destination ID Default security-ID: 0xFFFFFFFE LOCK SYS_EX: 40 02 7F F0 02 FF FF FF FE Destination ID Default security-ID: 0xFFFFFFFE SET_CODE... -
Page 19: Extended Features And Functions
MVA004 User manual and device specification Extended features and functions Micropelt’s newest generation of wireless heating valve actuators integrate and support a number of features and functions that allow any time and over-the-air status check and monitoring. Internal sensor and performance data have been stored over a longer time period accessible through a serial data dump. -
Page 20: Product Id And Label
MVA004 User manual and device specification Product ID and label The MVA004 Product ID consists of the Micropelt manufacturer ID as well as the product reference number. All functions and properties are available electronically in the shape of the Device Description File (DDF). -
Page 21: Performance Data
MVA004 User manual and device specification Performance data Parameter Range Valve thread M 30 x 1,5 (adapter available for other types) Ambient operating temperature 0 to 40°C, max 70% rH Flow pipe temperature 75°C max Transportation & storage temperature -10 to +45°C, max 70% rH range Max pin stroke (calibration range) >... -
Page 22: Mechanical Interface To Radiator Valve
MVA004 User manual and device specification Mechanical Interface to Radiator Valve The MVA004 is designed to mount directly onto an M30 x 1.5mm radiator valve body. Several other valve types are supported by metallic adapter pieces. August 2017 Page 21 of 23 1DSMVA004_0817v11e... -
Page 23: Annex 1: List Of Adapters For Commonly Used Non-M30X1,5 Valve Bodies
MVA004 User manual and device specification Annex 1: List of adapters for commonly used non-M30x1,5 valve bodies Danfoss Series 2 Danfoss Series 3 (M20 x 1.0) (M23.5 x 1.5) Item no. 9703-24.700 Item no. 9704-24.700 Danfoss RA2000 Adapter Oventrop Item no. 9702-24.700 (M30 x 1.0) Item no. -
Page 24: Annex 2: Theft Protection
MVA004 User manual and device specification Annex 2: Theft protection Pls. contact Micropelt to receive more information about MVA‐DS01 theft protection solution. Stainless steel clamp with distance rings and security screw (requires special tool to open) August 2017 Page 23 of 23...
