- Page 1 Wireless heating valve actuator MVA005 EnOcean User manual and device specification EnOcean Equipment Profile A5-20-06 Annex: List of adapters and theft protection MAR2019 Autor: Micropelt - Eine Marke der EH4 GmbH - DokumentenNr.: MVA005_1DS_0319v2e.docx...
-
Page 2: Table Of Contents
MVA005 User manual and Datasheet INDEX INDEX Document history ERRATA Use and safety recommendations System description Picture MVA005 with dial for local control Energy-supply through thermal Energy Harvesting ... -
Page 3: Document History
MVA005 User manual and Datasheet Document history Date Description Version Status 31.08.2018 0818_v1e Released Transfer from released German version and first release English version 01.10.2018 0818_v1e Released Section 10: Product ID 0x004900000001 Added product label picture ... -
Page 4: Use And Safety Recommendations
Thank you for choosing our product. To operate the self-powered radiator actuator, please read this manual carefully. Keep the instructions for future reference. In case of questions, please contact: Micropelt - a brand of EH4 GmbH. Email: info@micropelt.com. Telephone +49 7665 932183 0 Use and safety instructions: ... -
Page 5: System Description
User manual and Datasheet System description This document defines the properties of Micropelt’s battery free, intelligent thermostatic radiator valve (iTRV). MVA005 is an 868MHz EnOcean wireless actuator, which is self-powered through thermal energy harvesting. It is used to single room control heating radiators with standard valve connection M30x1.5 (Section 13). - Page 6 MVA005 User manual and Datasheet on the room control unit. There will be no further tone signal to confirm the result of -1°C. Incorrect inputs will be displayed by an approx. 2 seconds long red LED signal. Failed attempts will require a waiting period of 2 seconds.
-

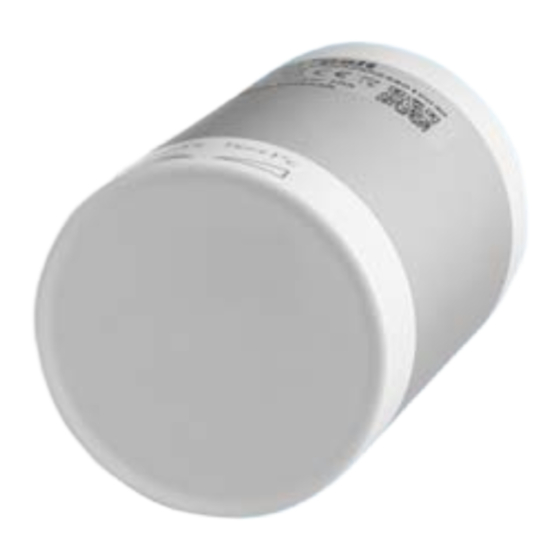

Page 7: Picture Mva005 With Dial For Local Control
MVA005 User manual and Datasheet The MVA005 is equipped with hard - and software functions to simplify installation, control and real-time monitoring. Apart from standard, manual 4BS teach-in are EnOcean Remote Commissioning (ReCom) operations available to teach and configure the device prior deployment or during operation. ReCom is operated with separate from 4BS and periodically transmitted SIGNAL (0x09) telegrams. -
Page 8: Energy-Supply Through Thermal Energy Harvesting
MVA005 User manual and Datasheet Energy-supply through thermal Energy Harvesting The actuator generates the necessary electrical energy for operation by means of a thermoelectric generator (TEG), which gains electrical energy from the temperature difference between radiator flow and room temperature. During the heating season, excess energy is accumulated in the internal storage for operation in transition periods and summer. -
Page 9: User Control - Quick Overview Table
MVA005 User manual and Datasheet User Control - Quick overview table 6.1 Installation with Manual Pairing (Teach-In) Objective Button Action LED or Tone Reasons for activity failure Pairing from Turn dial to Unit transmits a teach telegram After 5 Controller or mounting end position (1x green LED), connects with... - Page 10 MVA005 User manual and Datasheet inputs in one The temperature setpoint may cycle). be changed by up to +/- 5°C. Multiple local inputs within one Wait for 10 cycle time frame of 5 seconds seconds. are internally cumulated to one desired target value.
-
Page 11: Deactivation And Reset
MVA005 User manual and Datasheet 6.3 Deactivation and RESET Deactivate, Turn to end Green LED appears, than Success: No LEDs: Move to position release. After 5 mounting Left OR Right seconds 1x Try again and position, and hold for at 3x red LED indicates teach-in green LED hold the dial... -
Page 12: Installation Through Signal Telegram And Remote Commissioning
MVA005 User manual and Datasheet 6.4 Installation through SIGNAL telegram and Remote Commissioning In order to teach and configure the drive via ReCom, it is mandatory to change the default security code first! Objective Button Action LED or Tone Reasons for activity failure Change... -
Page 13: Remarks Remote Commissioning
MVA005 User manual and Datasheet Note: As long as the link table is not correctly described (no teach-in), the drive will remain in self-controlled mode at 21°C and does ignore any room controller. Local inputs / changes to the setpoint temperature on the dial are possible. -
Page 14: Flowchart Remote Commissioning
MVA005 User manual and Datasheet 6.6 Flowchart Remote Commissioning 6.6.1 Typical ReCom-procedure Signal Telegrams are transmitted: Wait for SIGNAL Telegram a. Instantly when device is activated from mounting position. To (RORG SIG) deactivate: Turn local control device to end position left or right and hold for 5 seconds until 1x green LED followed by 3x red LED. -
Page 15: Flowchart Manual Reset
MVA005 User manual and Datasheet 6.7 Flowchart Manual RESET User‐ input .. and release Turn Dial to left or right until its end position .. Activation local offset .. and hold After 5 sec 1x green LED Manual Teach & mounting position .. released Dial ..held After further 5 sec 1x green LED, release dial ... is in mounting position .. has valid zero reference * (no valid zero point reference) Device .. Motor moves to 50% position 2x red LED 2x red LED (Processor Restart) (Processor Restart) Motor moves to ... -
Page 16: Flowchart Teach-In, Mounting Position And Activation
MVA005 User manual and Datasheet 6.8 Flowchart Teach-In, Mounting position and activation User‐ input Activation local offset Turn Dial to left or .. and release right until its end position .. mounting position (off) Device is .. held in .. Activation .. normal operation Motor executes After 5 sec 1x green LED Local offset reference run Tone signal .. released 1x tone Manual Teach & Dial.. mounting position .. not mounted Device is ... -
Page 17: Notes On Radio Operation
MVA005 User manual and Datasheet Notes on radio operation Transmission range The radio transmission range is limited by both the distance between transmitter and receiver, and by interference. Indoors, building materials play an important role. Major reflections and signal losses are due to metallic parts, such as reinforcements in walls and metallized foils, which are used on thermal insulation products. -
Page 18: Enocean Equipment Profile Eep A5-20-06
MVA005 User manual and Datasheet EnOcean Equipment Profile EEP A5-20-06 Radio communication is periodically and bidirectional exclusively following the Micropelt designed and MVA005 customized EnOcean Equipment Profile EEP A5 20-06 (Harvesting-powered actuator with local temperature offset control (BI-DIR). Protocol data overview... - Page 19 MVA005 User manual and Datasheet 0: No open window detected Window open Window open DB0.4 1: Open window detected detection detection 0: Teach-in telegram DB0.3 LRN Bit LRNB Telegram type 1: Data telegram 0: Radio communication is stable Indicates radio Radio Com 1: Six or more consecutive radio DB0.2...
- Page 20 MVA005 User manual and Datasheet Temperature 0: Request ambient requested from the Temperature temperature DB1.1 actuator Selection 1: Request feed (DB1.7…DB1.0, temperature DIR-1, TMP) Enter standby 0: Normal operation DB1.0 Standby mode, refer to 1: Standby Appendix DB0.7… Not used Set to 0 DB0.4 0: Teach-in telegram...
-
Page 21: Description Of Individual Functions
MVA005 User manual and Datasheet Description of individual functions Pls. also refer to the officially published EEP A5-20-06 description and Table 8.1 8.2.1 Setpoint Selection (SPS) DIRECTION-2. Selection whether A5-20-06 and the actuator is used with Valve Position (Controller running in the room or building control system) or with its internal temperature control loop. -
Page 22: Summer Bit (Sb)
MVA005 User manual and Datasheet SIGNAL telegram cycle time can also be changed within the specified range through Remote Commissioning. Pls. refer to the DDF and Section 9.5. 8.2.5 Summer bit (SB) DIRECTION-2. The actuator receives the status bit summer mode from the external controller through Standard 4BS message. The valve closes while the radio communication interval is increased to once every 8 hours. -
Page 23: Radio Telegram Example
MVA005 User manual and Datasheet Radio telegram example DIRECTION-1 MVA005 to Control unit /Gateway MVA005 → Controller / Gateway 16AA6EE8 4 Byte: BYTE DB3.7-0 00010110 CV = Current valve opening = 22 % DB2.7-0 10101010 DB2.7 0 = Relative local offset 1 = Setpoint with local offset added DB2.6-0 0101010... -
Page 24: Enocean Remote Management (Reman), Remote Commissioning (Recom)
MVA005 User manual and Datasheet EnOcean Remote Management (ReMan), Remote Commissioning (ReCom) 9.1 EnOcean Link Table MVA005 supports the following number of tech-in relationships: Inbound EnOcean Link Table: 0 Teach-in relationships (not existing) Outbound EnOcean Link Table: 3 Tech-in relationships Comment: MVA005 uses an outbound link table only, inbound relationships are not supported. -
Page 25: Recom Standard Functions
MVA005 User manual and Datasheet 9.4 ReCom Standard Functions Remote Commissioning Mandatory Commands Bundle: Remote Commissioning Acknowledge Get Product ID Query & Response EnOcean Link Table Basic Commands Bundle Get Link Table Metadata Query & Response Get Link Table Query &... -
Page 26: Recom Internal Mva Parameter
User manual and Datasheet 9.5 ReCom internal MVA Parameter Pls. contact Micropelt for further details and device description file (DDF, xml). Description INDEX 0 = Ambient to Target Offset [K] The ambient to target offset parameter [K] is related to a function to correct the ambient temperature measured in the actuator. - Page 27 MVA005 User manual and Datasheet * Automatic mode: 2/5/10 Minutes based on measured Flow temperature and internal storage voltage Execute reference run 0x01 DEFAULT 0x00 Ambient to Target Offset (A) (0x00 … 0xFF) 0 … 255 Parameter MVA005 DEFAULT DEZ 56 = HEX 0x38 Temperature Control Gain „P“...
-
Page 28: Extended Features And Functions
User manual and Datasheet Extended Features and Functions Micropelt’s latest generation of wireless heating valve actuators integrate and support a number of features and functions that allow any time and over-the-air status check and monitoring. Internal sensor and performance data have been stored over a longer time period accessible through a serial data dump. -
Page 29: Product Id And Label
MVA005 User manual and Datasheet Product ID and Label The MVA005 Product ID consists of the Micropelt manufacturer ID as well as the product reference number. All functions and properties are available electronically as Device Description File (DDF). Device Manufacturer ID... -
Page 30: Performance Data
EnOcean EEP A5-20-06 (Valve Position or Setpoint Temperature) EnOcean Remote management & Yes (Section 9) Remote commissioning DDF (Device description file) (Pls. contact Micropelt) Life cycle status and monitoring capabilities (Section 8 Local offset control +/- 5°C (Section 4) Accuracy of ambient and flow +/- 0.5 ºC... - Page 31 MVA005 User manual and Datasheet Maximum radiated power +1.4 dBm (EN 300220-2:V3.1.1) Receiver Category 2 (EN 300 220-1 V3.1.1) Conformity MAR 2019 Page 30 / 33 MVA005_1DS_0319v2e.docx...
-
Page 32: Mechanical Interface To Radiator Valve
MVA005 User manual and Datasheet Mechanical Interface to Radiator Valve The MVA005 is designed to mount directly onto an M30 x 1.5mm radiator valve bodies. Other valve types are available, see next section 14 . MAR 2019 Page 31 / 33 MVA005_1DS_0319v2e.docx... -
Page 33: Annex 1: Adapter List
MVA005 User manual and Datasheet Annex 1: Adapter list In case of other valve body types, please get in touch with Micropelt: Email: info@micropelt.com Phone: +49 7665 932183 0 Danfoss Series 2 Danfoss Series 3 (M20 x 1.0) (M23.5 x 1.5) Item no. -
Page 34: Annex 2: Theft Protection
MVA005 User manual and Datasheet Annex 2: Theft protection Pls. contact Micropelt to receive more information about MVA‐DS01 theft protection solution. Stainless steel clamp with distance rings and security screw (requires special tool to open) MAR 2019 Page 33 / 33...
