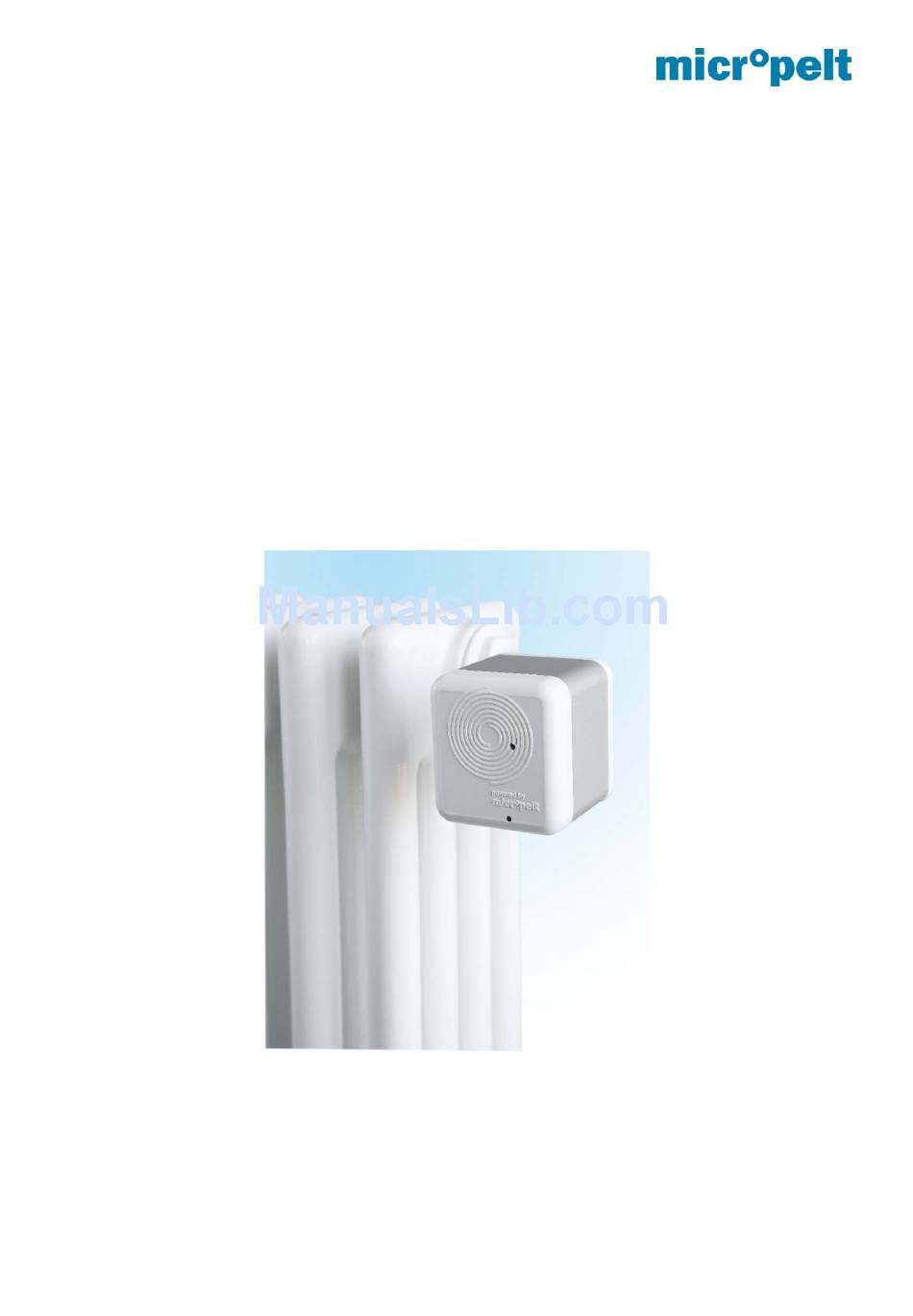

- Page 1 Wireless heating valve actuator MVA003 EnOcean User manual and device specification Annex: List of adapters and theft protection Preliminary May 2017 Author: EH4; Germany / Brand Micropelt - Document number 1DSMVA003_0217v7e...
-
Page 2: Table Of Contents
MVA003 User manual and device specification INDEX INDEX Introduction User Control – Quick overview table Installation with Manual Pairing Installation with Remote Commissioning Notes on radio operation Transmission range ... -
Page 3: Introduction
5 seconds. It is strongly recommended to use script command sets (contact Micropelt for examples) and execute ReMan only for initial teach over the air (Link Table) and device configuration following its initial deployment. -
Page 4: User Control – Quick Overview Table
MVA003 User manual and device specification User Control – Quick overview table The below tables provide a quick overview of the product functionality and the installation process. MORE DETAILED DESCRIPTION IN SECTION 8. 2.1 Installation with Manual Pairing Objective Action LED Activity Reasons for failure Pairing from mounting... - Page 5 MVA003 User manual and device specification sequence and enters normal operation. It assumes it is paired. For 10 minutes, it runs at a 10 second radio communication interval. RESET Push and hold the After 10 sec have User failed to press the from mounting position button for at least 10 elapsed and RESET is...
-
Page 6: Installation With Remote Commissioning
MVA003 User manual and device specification 2.2 Installation with Remote Commissioning Objective Action LED Activity Reasons for failure Mounting Pls. mount the actuator before executing run-in sequence and normal operation Run-in sequence Single-press push-button (< 1 Success: Single red Motor or gear error and normal sec) -
Page 7: Notes On Radio Operation
MVA003 User manual and device specification Notes on radio operation Transmission range The radio transmission range is limited by both the distance between transmitter and receiver, and by interference. Indoors, building materials play an important role. Major reflections and signal losses are due to metallic parts, such as reinforcements in walls and metallized foils, which are used on thermal insulation products. -
Page 8: Eep A5-20-01 Description
MVA003 User manual and device specification EEP A5-20-01 description Bidirectional radio communication occurs periodically according to the EnOcean Equipment Profile “EEP A5- 20-01” (Battery Powered Actuator). Communication is triggered by the actuator. Protocol Data Overview Transmit mode from MVA to controller/ Receive mode from controller / gateway gateway/ server / server to MVA... -
Page 9: Example Of A Radio Protocol
MVA003 User manual and device specification Summer Mode (DB_1.Bit_3) When the actuator receives the status message „Summer mode ON“ from the external radio master, then the valve opens and the transmit/receive interval is increased from 10 minutes to 8 hours. It is possible to wake up the iTRV through 1 x pressing the push button. -
Page 10: Enocean Remote Management (Reman), Remote Commissioning (Recom)
MVA003 User manual and device specification EnOcean Remote Management (ReMan), Remote Commissioning (ReCom) 5.1 EnOcean Link Table MVA003 supports the following number of tech-in relationships: Inbound EnOcean Link Table: 0 Teach-in relationships (not existing) Outbound EnOcean Link Table: 3 Tech-in relationships Comments: MVA003 uses an outbound link table only, inbound relationships are not supported. -
Page 11: Recom Supported Standard Functions
MVA003 User manual and device specification 5.4 ReCom supported standard functions Remote Commissioning Mandatory Commands Bundle: Remote Commissioning Acknowledge Get Product ID Query & Response EnOcean Link Table Basic Commands Bundle Get Link Table Metadata Query & Response ... -
Page 12: Recom Supported Mva Internal Parameter
(0x00 … 0xFF) 0 … 255 and divide by 10 READ ONLY Example 0x21 = DEZ 33 : 10 = 3,3Volt Please contact Micropelt to receive related xml (DDF) file with further technical details. Preliminary May 2017 Page 11 of 20... -
Page 13: Dolphin View Do Command Examples
MVA003 User manual and device specification 5.6 Dolphin View DO command examples UNLOCK SYS_EX: C0 02 7F F0 01 FF FF FF FE Destination ID Default security-ID: 0xFFFFFFFE LOCK SYS_EX: 40 02 7F F0 02 FF FF FF FE Destination ID Default security-ID: 0xFFFFFFFE SET_CODE... -
Page 14: Extended Features And Functions
MVA003 User manual and device specification Extended features and functions Micropelt’s newest generation of wireless heating valve actuators integrate and support a number of features and functions that allow any time and over-the-air status check and monitoring. Internal sensor and performance data have been stored over a longer time period accessible through a serial data dump. -
Page 15: User Control Description
MVA003 User manual and device specification User Control description 7.1 Installation with Manual Pairing Pairing / Teach-In, Mounting position and OFF Set the EnOcean controller or gateway to pairing mode. Then take the MVA003 from its packing and press the button at least twice within 2 seconds. MVA003 confirms successful pairing by a single flash of the red LED. -
Page 16: Installation With Remote Commissioning
MVA003 User manual and device specification 7.2 Installation with Remote Commissioning Attaching the unit to the radiator valve Take the MVA003 from its packing. It should be in mounting position, e.g. the plunger is moved fully inwards so that the unit can be attached to a radiator valve without force. Remove any existing thermostatic head that may be affixed to the radiator valve. -
Page 17: Product Id And Label
MVA003 User manual and device specification Product ID and label The MVA003 Product ID consists of the Micropelt manufacturer ID as well as the product reference number. All functions and properties are available as electronic Device Description File (DDF). Device... -
Page 18: Performance Data
MVA003 User manual and device specification Performance data Parameter Range Ambient operating temperature 0 to 40°C, max 70% rH Flow pipe temperature 75°C max Transportation & storage temperature -20 to +65°C, max 70% rH range Max pin stroke (calibration range) >... -
Page 19: Mechanical Interface To Radiator Valve
MVA003 User manual and device specification Mechanical Interface to Radiator Valve The MVA003UCL is designed to mount onto an M30 x 1.5mm radiator valve bodies. Several other valve types are supported by metallic adapter pieces. Preliminary May 2017 Page 18 of 20 1DSMVA003_0217v7e... -
Page 20: Annex 1: List Of Adapters For Commonly Used Non-M30X1,5 Valve Bodies
MVA003 User manual and device specification Annex 1: List of adapters for commonly used non-M30x1,5 valve bodies Danfoss Series 2 Danfoss Series 3 (M20 x 1.0) (M23.5 x 1.5) Item no. 9703-24.700 Item no. 9704-24.700 Danfoss RA2000 Adapter Oventrop Item no. 9702-24.700 (M30 x 1.0) Item no. -
Page 21: Annex 2: Theft Protection
MVA003 User manual and device specification Annex 2: Theft protection Pls. contact Micropelt to receive more information about MVA‐DS01 theft protection solution. Stainless steel clamp with distance rings and security screw (requires special tool to open) Preliminary May 2017 Page 20 of 20...
