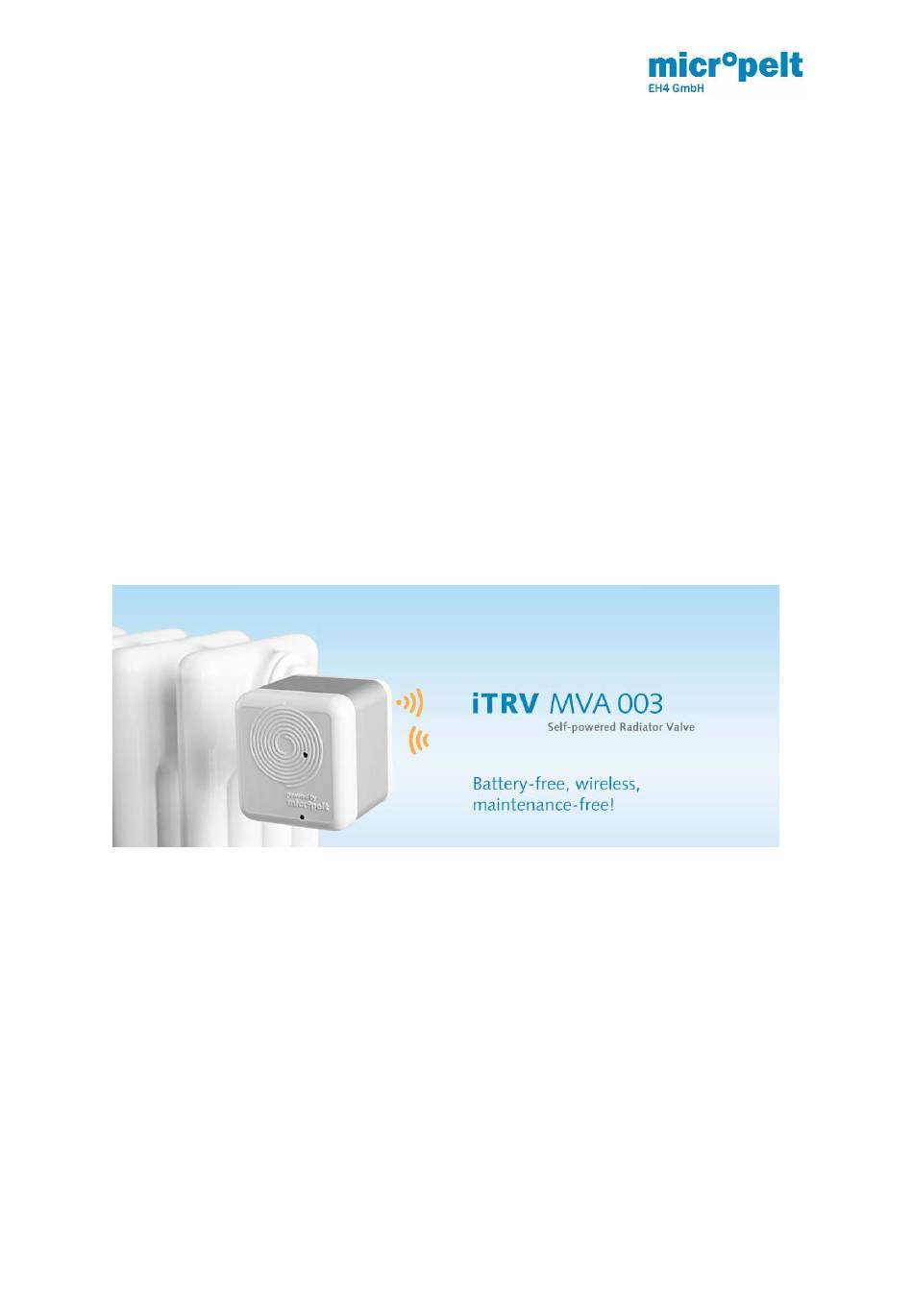

- Page 1 Wireless heating valve actuator MVA003E EnOcean User manual and device specification EnOcean Equipment Profile A5-20-01 Annex: List of adapters and theft protection Preliminary April 2019 Author: EH4; Germany / Brand Micropelt - Document number 1DSMVA003E_0419v9e...
- Page 2 MVA003E User manual and device specification INDEX INDEX Document history ERRATA Use and safety recommendations System description Energy harvesting User Control – Quick overview table Installation with Manual Pairing ...
-
Page 3: Document History
MVA003E User manual and device specification Document history Date Description Version Status 03/03/2017 First release Released 03/06/2017 Added ReMan/ReCom/DO File command examples Released 06/07/2017 Corrections in Sect. 8 Released 21/07/2017 Changed ReCom parameter Released 25/08/2017 Added BCAP DB2.4 to Energy storage DB2.5 Released 04/10/2017 Added HEX values in ReCom documentation... -
Page 4: Use And Safety Recommendations
Thank you for choosing our product. To operate the self-powered radiator actuator, please read this manual carefully. Keep the instructions for future reference. In case of questions, please contact: Micropelt - a brand of EH4 GmbH. Email: info@micropelt.com. Telephone +49 7665 932183 0 Use and safety instructions: ... -
Page 5: System Description

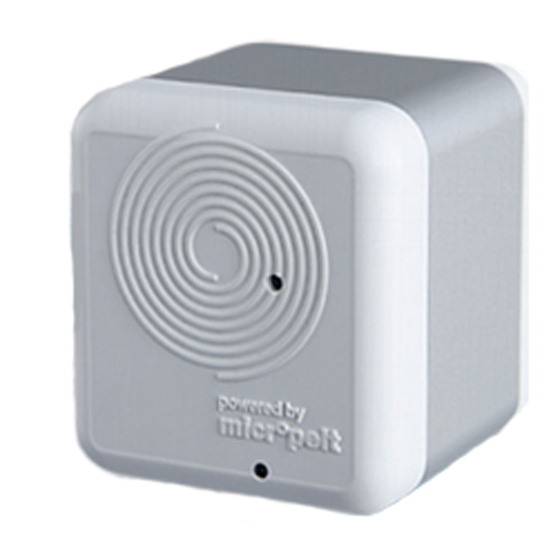

MVA003E User manual and device specification System description This document defines the properties of Micropelt’s battery free thermostatic radiator valve MVA003E. The unit is directly mounted onto the radiator valve bodies (standard valve connection M30x1.5), where it controls the room temperature, based on signals of a central controller. To operate the device, the unit must be paired with a compatible room controller or gateway unit supporting EEP A5-20-01. - Page 6 MVA003E User manual and device specification recommended. EEP A5-20-01 provide the option to reduce and minimize energy consumption through summer mode (SB bit) and 8 hours radio interval. Anti-freeze protection uses the ambient sensor and becomes active at <6°C. Flashing of the red LEDs in 0.5 second intervals signals a sensor error (short circuit or interruption). In this condition, normal operation is not possible.
- Page 7 MVA003E User manual and device specification Energy harvesting The actuator generates the necessary electrical energy for operation by means of a thermoelectric generator (TEG), which gains electrical energy from the temperature difference between radiator flow and room temperature. During the heating season, excess energy is accumulated in the internal storage for operation in transition periods and summer.
-
Page 8: User Control - Quick Overview Table
MVA003E User manual and device specification User Control – Quick overview table The below tables provide a quick overview of the product functionality and the installation process. 6.1 Installation with Manual Pairing Objective Action LED Activity Reasons for failure Pairing from mounting Press pushbutton twice Success: Single red Controller or gateway... - Page 9 MVA003E User manual and device specification RESET Push and hold the button After 10 sec have User failed to press the from mounting position for at least 10 seconds: elapsed and pushbutton long Unit moves the plunger RESET is triggered: enough fully in and sets inner stop Single red flash...
-
Page 10: Flowchart Manual Reset
MVA003E User manual and device specification 6.2 Flowchart manual RESET User‐ input Hold button for 10 seconds.. 1x red LED .. and release ... is in mounting position .. has valid zero reference * (no valid zero point reference) Device .. Motor moves to 50% position 2x red LED (Processor Restart) 2x red LED (Processor Restart) Motor moves to mounting position Motor moves to end position Motor executes reference run .. mounted .. not mounted correctly correctly Device ... - Page 11 MVA003E User manual and device specification 6.3 Installation with Remote Commissioning Remote Commissioning (ReCom) operations are possible in response to any communication cycle in which the MVA003E transmits a 4BS telegram. ReCom is started with a corresponding UNLOCK (security code must be correct) command and allows the further access to the device internal parameter. The ReCom time window is limited to max.
-
Page 12: Flowchart Remote Commissioning
MVA003E User manual and device specification 6.5 Flowchart Remote Commissioning Wait for 4BS Telegram MAX. TIME WINDOW TO UNLOCK = 1 SECOND UNLOCK 0x0001 Command sequence in any order SET LINK TABLE 0x0212 MAX. TIME WINDOW (Refer to Section 9) BETWEEN UNLOCK AND GET LINK TABLE 0x0211 LOCK = 8 SECONDS... -
Page 13: Notes On Radio Operation
MVA003E User manual and device specification Notes on radio operation Transmission range The radio transmission range is limited by both the distance between transmitter and receiver, and by interference. Indoors, building materials play an important role. Major reflections and signal losses are due to metallic parts, such as reinforcements in walls and metallized foils, which are used on thermal insulation products. -
Page 14: Eep A5-20-01 Description
MVA003E User manual and device specification EEP A5-20-01 description Bidirectional radio communication occurs periodically according to the EnOcean Equipment Profile “EEP A5-20-01” (Battery Powered Actuator). Communication is triggered by the actuator. Protocol Data Overview Transmit mode from MVA to controller/ Receive mode from controller / gateway / gateway/ server server to MVA... -
Page 15: Description Of Individual Functions
MVA003E User manual and device specification Description of individual functions 8.2.1 Setpoint Selection (DB1.2, RCU to MVA003E) Selection whether A5-20-01 and the actuator is used with Valve Position (Controller running in the room or building control system) or with its internal temperature control loop. 8.2.2 Valve position [%] and Setpoint temperature [°C] (DB3, RCU to MVA003E) Setpoint temperature °C: The external radio partner transmits the temperature setpoint for the internal controller (0 ... - Page 16 MVA003E User manual and device specification DB1.7…DB1.0 = 0x89 = 137: Internal temperature = 40*DB.1/255 = 40*137/255 = 21,5 °C DB0.7…DB0.0 = 0x08: Data telegram Radio protocol from Controller/Gateway to MVA valve actuator VALVE POS: Example in HEX "0x05770008" ...
- Page 17 MVA003E User manual and device specification DB2.1 0 = Window closed 1 = Open window detected DB2.0 0 = Actuator normal operation 1 = Actuator obstructed DB1.7-0 10001001 137 TMP = Ambient temperature from actuator = 21.5 ºC DB0.7-0 00001000 LRN Type DB0.7 0 = not used [no EEP &...
- Page 18 MVA003E User manual and device specification EnOcean Remote Management (ReMan), Remote Commissioning (ReCom) 9.1 EnOcean Link Table MVA003E supports the following number of tech-in relationships: Inbound EnOcean Link Table: 0 Teach-in relationships (not existing) Outbound EnOcean Link Table: 3 Tech-in relationships IMPORTANT NOTICE: MVA003E uses an outbound link table only, inbound relationships are not supported.
- Page 19 MVA003E User manual and device specification 9.4 ReCom supported standard functions Remote Commissioning Mandatory Commands Bundle: Remote Commissioning Acknowledge Get Product ID Query & Response EnOcean Link Table Basic Commands Bundle Get Link Table Metadata Query & Response ...
- Page 20 (0x00 … 0xFF) 0 … 255 = 10x Voltage READ ONLY Example 0x21 = DEZ 33 : 10 = 3,3Volt Please contact Micropelt to receive related xml (DDF) file with further technical details. Preliminary April 2019 Page 19 of 24...
-
Page 21: Product Id And Label
MVA003E User manual and device specification Product ID and label The MVA003E Product ID consists of the Micropelt manufacturer ID as well as the product reference number. All functions and properties are available as electronic Device Description File (DDF). Device... -
Page 22: Performance Data
EnOcean EEP and operating mode A5-20-01 Valve Pos. (%) or Setpoint Temperature (°C) EnOcean Remote management & Remote commissioning capability (Device description file/xml) Please contact Micropelt Life cycle status and monitoring capabilities Accuracy of internal ambient +/- 0.5 ºC temperature sensor... -
Page 23: Mechanical Interface To Radiator Valve
MVA003E User manual and device specification Mechanical Interface to Radiator Valve The MVA003E is designed to mount onto an M30 x 1.5mm radiator valve bodies. Several other valve types are supported by metallic adapter pieces. Preliminary April 2019 Page 22 of 24 1DSMVA003E_0419v9e... -
Page 24: Annex 1: List Of Adapters For Commonly Used Non-M30X1,5 Valve Bodies
MVA003E User manual and device specification Annex 1: List of adapters for commonly used non-M30x1,5 valve bodies Danfoss Series 2 Danfoss Series 3 (M20 x 1.0) (M23.5 x 1.5) Item no. 9703- Item no. 9704- 24.700 24.700 Danfoss RA2000 Adapter Oventrop Item no. -
Page 25: Annex 2: Theft Protection
MVA003E User manual and device specification Annex 2: Theft protection Pls. contact Micropelt to receive more information about MVA‐DS01 (used without Adapter) and MVA- DS02 (used with adapter) theft protection solution. Stainless steel clamp with distance rings and security screw (requires...
