Arcos Broach/Calcar Proximal Body Surgical Technique
20 |
Trochanteric Reattachment Technique
Preparing for Auxiliary Implant
Attachment (cont.)
Advance the appropriate size drill bit through the
plunger until the built-in stop bottoms out on the
cylindrical surface of the outrigger (Figure 40).
Note: It is not possible to drill through the bolt hole
on the claw trial, preparation must be performed
with the final implant in place.

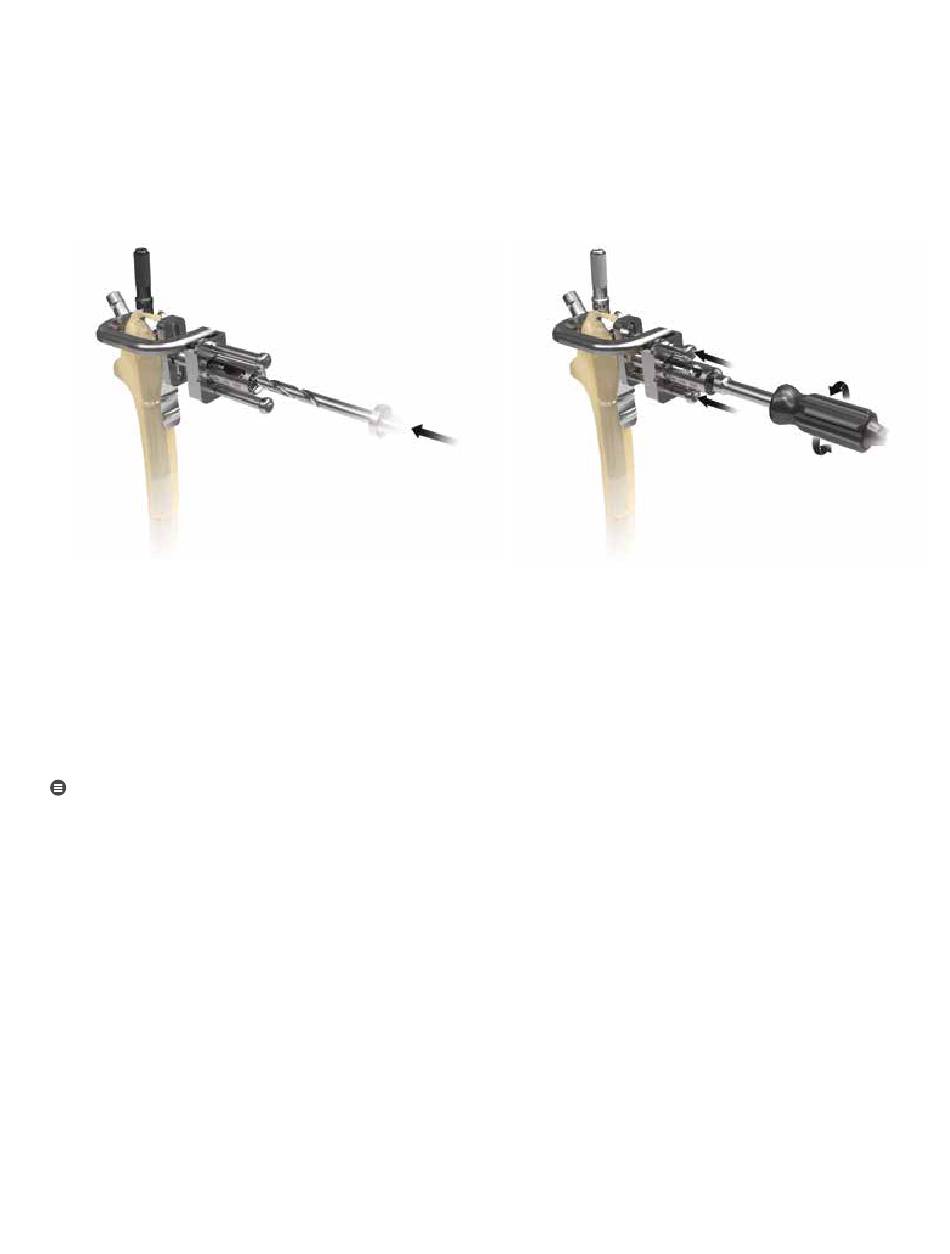

Figure 40 Figure 41
Compress the arms of the trochanteric bolt guide
tightly to the auxiliary implant and remove the
measurement plunger with the 5.0 mm hex driver
(Figure 41). Attach the 5.0 mm hex driver to the
T-handle and set to torque limiting position.
