EXTENDED WALL SUPPORT (EWSE)

1. Assemble the universal support collar on the chimney section as
shown on page 14 & 15 of the Excel installation instructions.

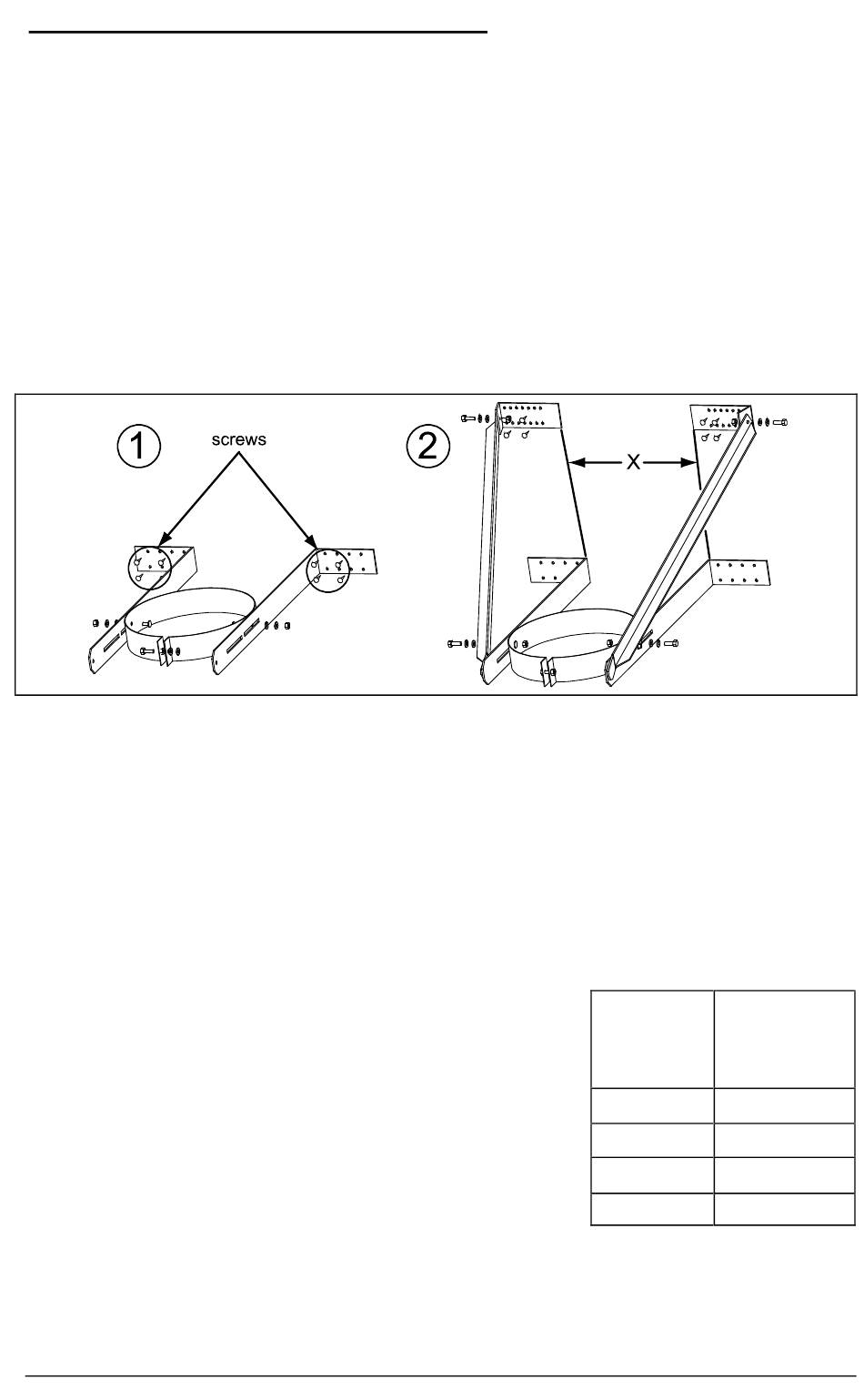

2. Attach the horizontal braces to the universal support collar as show in
the diagram below. Place the support collar at the desired distance
from the wall using the slots on the horizontal braces. The braces are
attached to the two elevator bolts that protrude from the sides of the
support collar.
Continue the installation in accordance with the instruction manual
on page 22, wall support, and replace instructions 6 and 8 on page 23
with the following:
6. The horizontal braces and support flange should be installed on the first
vertical chimney section above the Tee. Tighten the universal band
locking bolt just enough to hold the wall support in place.
8. Install the support horizontal braces on the external wall by using four
#10 x 3" or longer screws. Attach the diagonal braces and the wall
brackets to the horizontal braces. Install the brackets on the external
wall using #10 x 3" or longer screws. As mentioned previously, ensure
that the screws are anchored in the structural member and not only to
the wall sheeting. If the stud locations do not
line up properly you may wish to use a wall
channel (see instructions page 24). The wall
support brackets are slotted to allow them to
adjust in and out. Adjust the brackets so that
the chimney is a minimum of 2" from
combustible material and parallel with the wall.
Tighten the Wall Support collar around the
chimney, then secure it using 3 metal screws.
(continue the installation in accordance with the instruction manual at the
page 22 & 23)
EXCEL Canada
30
Maximum
Chimney height that
diameter can be
supported
5" Ø 23'
6" Ø 20'
7" Ø 17'
8" Ø 16'
