13. Put the roof flashing in place. Seal the joint between the roof and the
flashing with roofing pitch. For sloping roofs, place the flashing under
the upper shingles and on top of the lower shingles. Nail the flashing
to the roof using roofing nails. Place the storm collar over the chimney
just above the flashing. Caulk the joint between the chimney and
storm collar with silicone caulking.
14. Continue adding chimney sections until the required chimney height is
reached. See the drawing on page 7 to determine the correct height.
15. If the chimney extends more than 5' above the roof it should be
secured to the roof using a Roof Brace (ERB).
16. Fit the rain cap to the top of the chimney. Screw the four metal screws
provided through the straps and into the top chimney length. Install
the spark screen if you wish to have a spark screen.
17. FROM INSIDE. Slide the black portion of the Wall Radiation Shield
over the galvanized portion which was installed from the outside and
push it until it stops against the chimney. The black interior portion of
the Wall Radiation Shield must project into the room a minimum of 4".
Install the round finish trim with the long black screws provided.

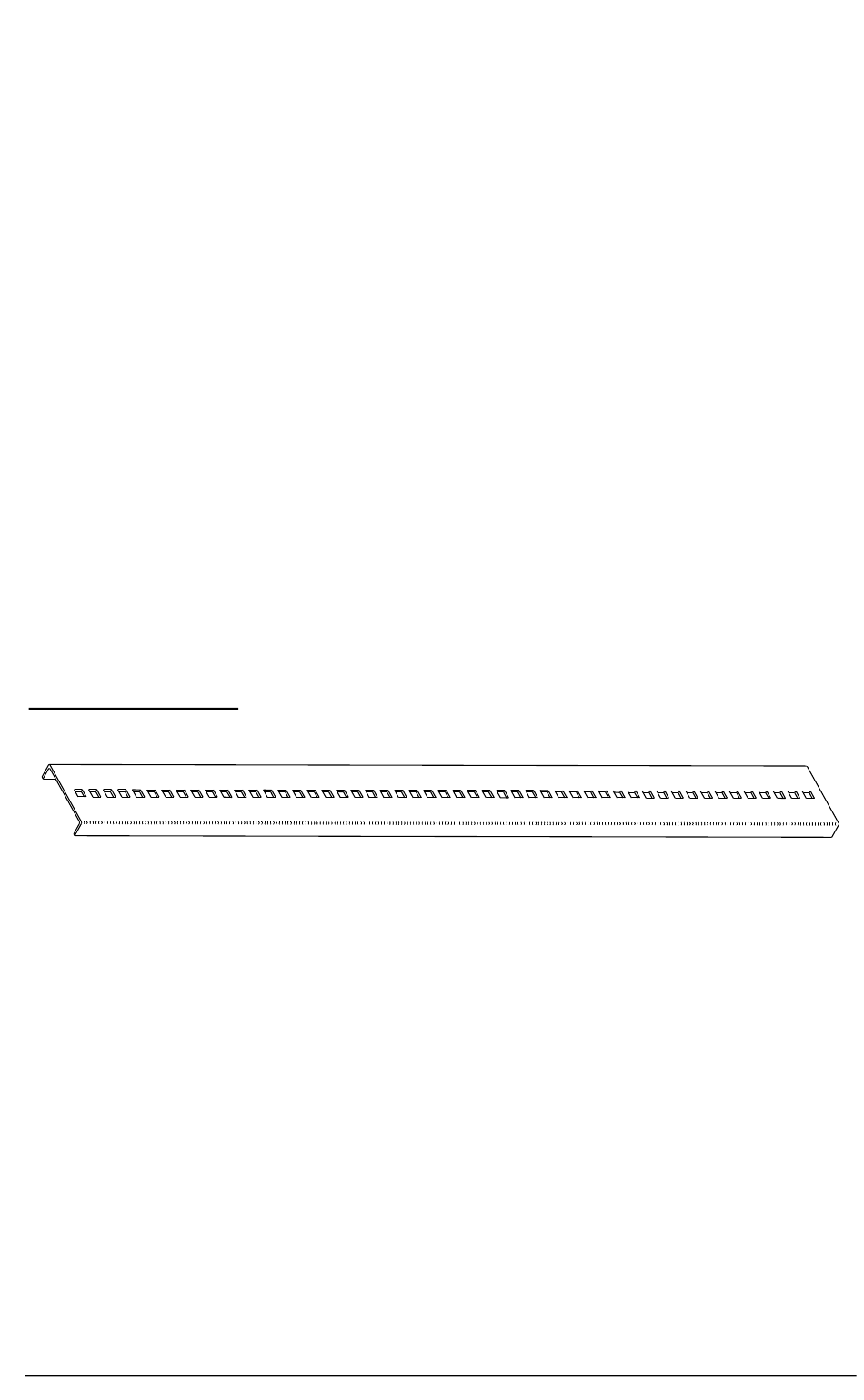

WALL CHANNEL

The use of a wall channel will simplify the installation of a wall band or wall
support. The wall channel is 26 inches long to allow for 24 inch on centre
framing.
1. Locate the framing members you will screw the wall channel to. Do not
screw the wall channel in place yet.
2. Determine the correct location on the wall channel for the wall band or
wall support. The two short sides of the wall channel rest against the
wall. Bolt the support brackets to the wall channel with elevator bolts.
3. Screw the wall channel in place using a minimum of four #10 x 3 inch
screws.
