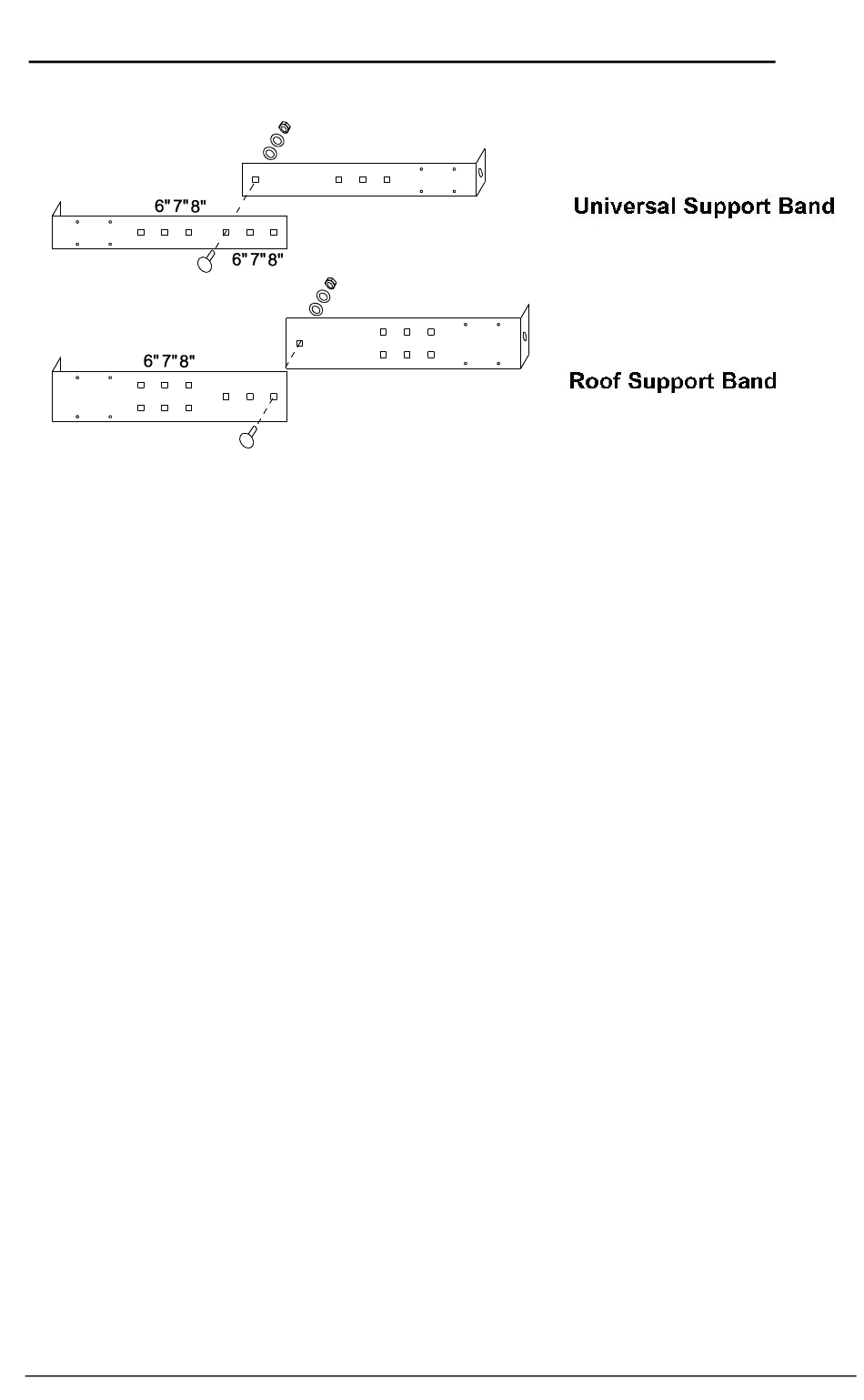

UNIVERSAL BAND AND ROOF SUPPORT BAND ASSEMBLY
The universal band is a sub-component of the following parts:
- Wall Support (EWS)
- Roof Brace (ERB)
- Offset Support (EOS)
The Roof Support Band is a sub-component of the roof support and is
assembled in the same manner as the universal band.
1. The universal band and the roof support band are shipped
pre-assembled to fit 6" chimney. To install the bands on a 7" or 8"
chimney carefully remove the three 1/4" x 1" elevator bolts (five bolts for
a roof support) and replace them in the corresponding labelled holes for
7" or 8".
For 5" Ø chimney the band that come with the supports (wall, roof or
offset) and with the roof brace is made to fit the outside diameter of the
5" chimney only.
2. Bend the band around the chimney section and secure with the 1/4" x
2" bolt, lock washer and nut provided. The band will bend to conform to
the diameter of the chimney.
