UNIVERSAL STORM COLLAR (ESC)
The universal storm collar has been
designed as a compatible fit for all
EXCEL chimneys. The universal
storm collar must be used on
regular (non-vented) flashing and
on the radiation shield when
installed in an attic. The universal
storm collar, when installed on
small diameter chimney (5" and 6"),
can be cut for ease of installation.

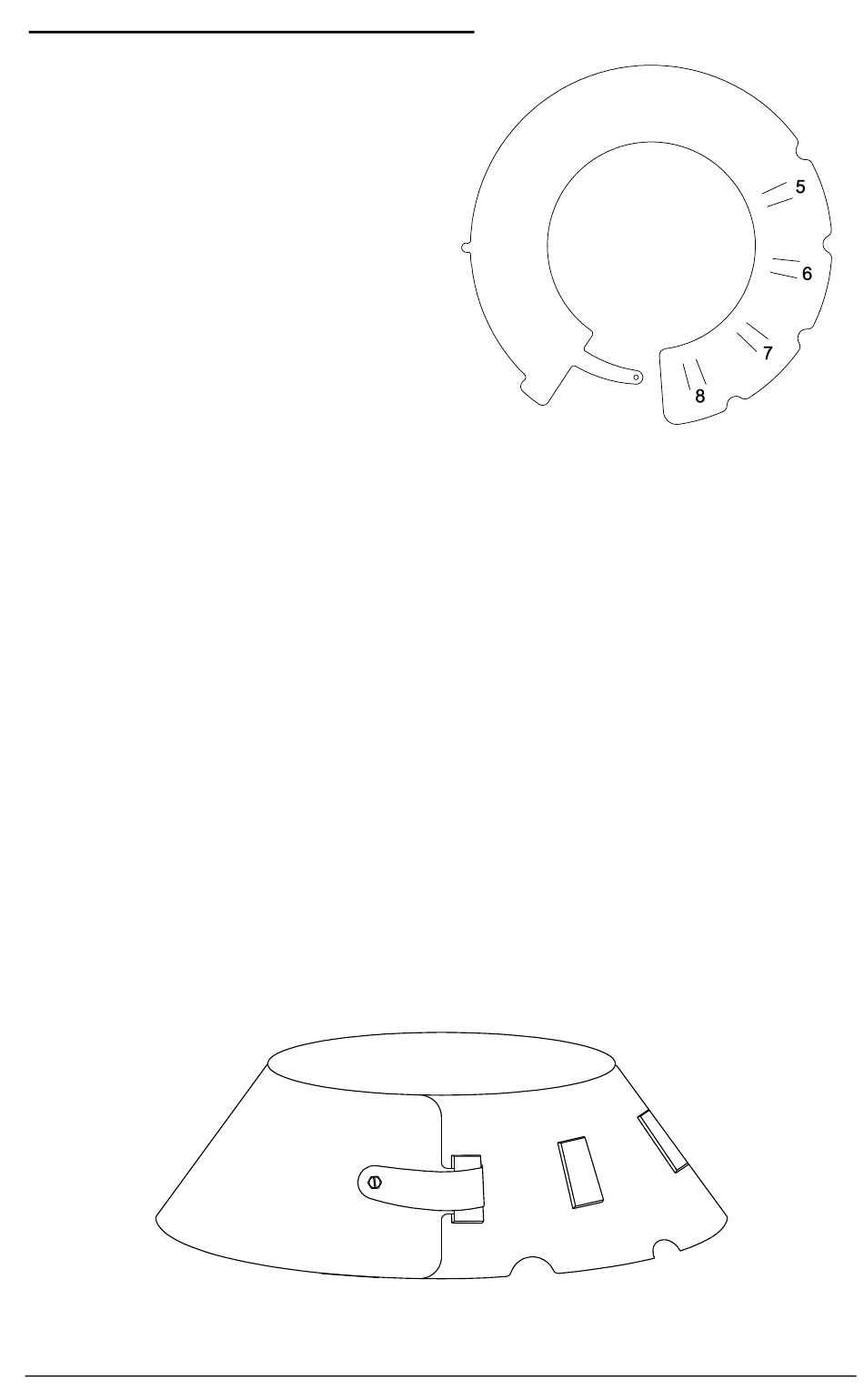

The cut line is shown in the
illustration of the piece.
To install the universal storm
collar:
1. Place the storm collar around the chimney.
2. Slide the tongue into the appropriate slot for the required diameter.
3. Ensure the tongue is placed into the slot correctly.
4. Use the round notch to tighten the collar around the chimney.
(When the collar is installed in an attic ensure that it's sits properly on the
radiation shield)
5. Bend the tongue back over the slot.
6. Bend the two tabs to secure the inner portion of the collar.
7. Hold the tongue in place by inserting a screw into the hole at the tip.
8. Seal the crack between chimney and collar with silicone.
9. Seal the unused slots of the universal storm collar with silicone.
