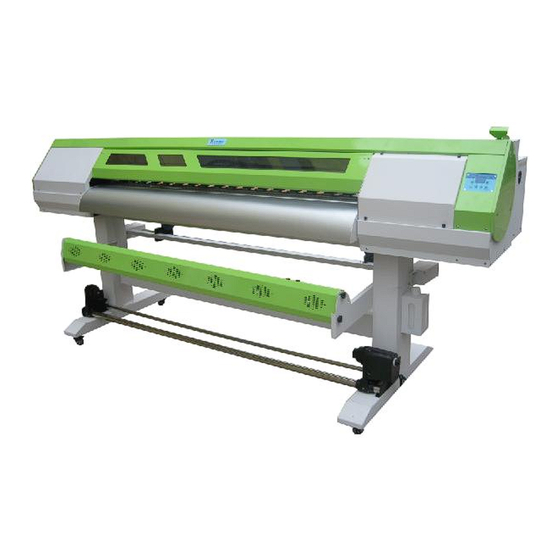

Tao Tech Digital Technology Titan-jet 1902 Instruction Manual

Water base & eco-solvent piezo printer
Hide thumbs

Advertisement

Quick Links

Download this manual

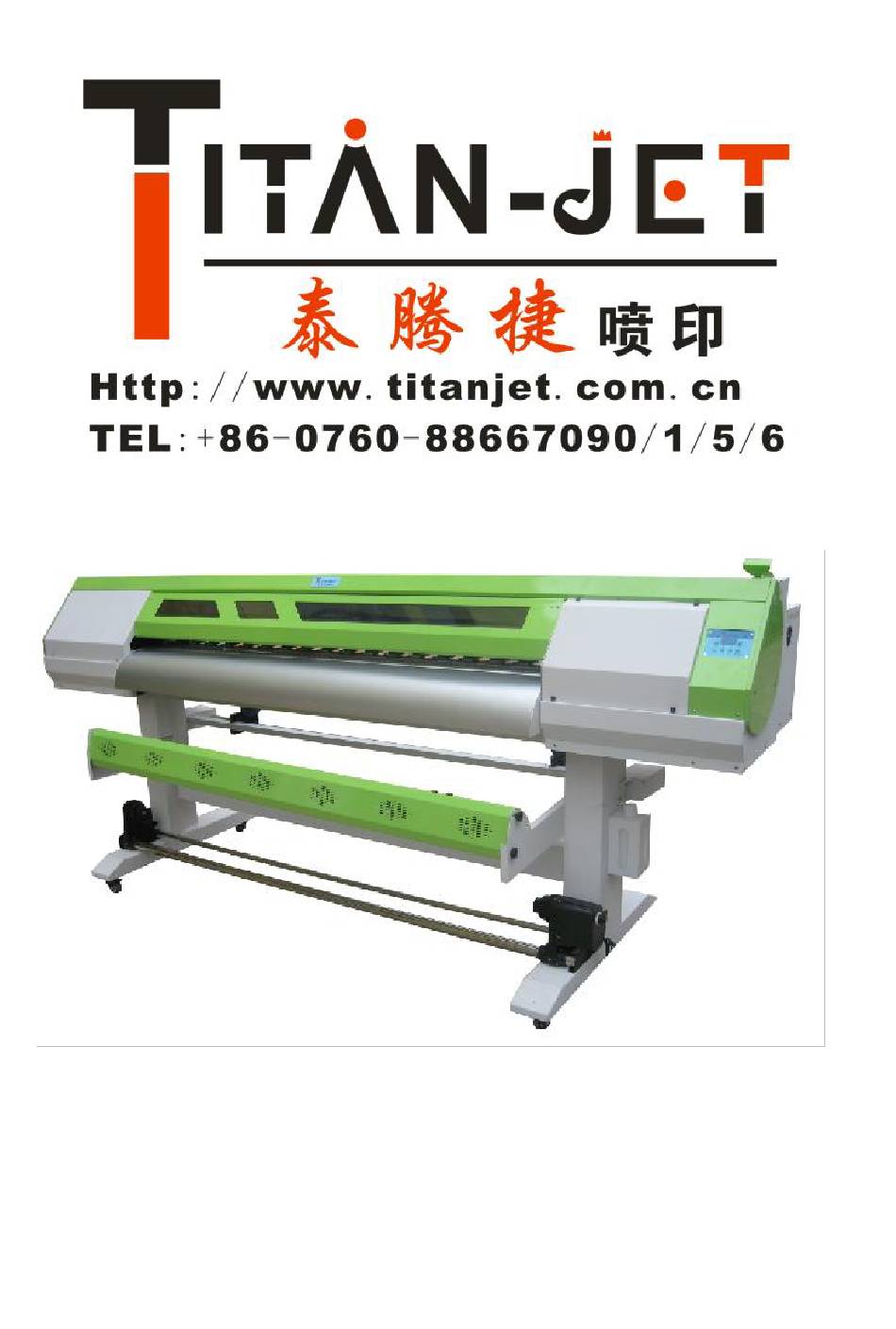

http://www.titanjet.com.cn
Integrity
Excellence
Profession
Tao Tech Digital Technology CO.,LTD is a professional manufacturer and supplier
engaged in R&D, Manufacture and Distribution of digital inkjet printer equipment. We
research and development the high speed, high resolution and stable printing control system in
many kinds of industry printing application by USA TRIDENT and Japan EPSON
print-head ,such as textile ,ceramic ,solvent, water base, UV printing.
Tel：+86-760-88667089 / 88667090
Fax：+86-760-88667096
Web: http://www.titanjet.com.cn
email:sales@titanjet.com.cn
Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China
- 1 -

Advertisement

loading

Summary of Contents for Tao Tech Digital Technology Titan-jet 1902

  • Page 1 Integrity Excellence Profession Tao Tech Digital Technology CO.,LTD is a professional manufacturer and supplier engaged in R&D, Manufacture and Distribution of digital inkjet printer equipment. We research and development the high speed, high resolution and stable printing control system in many kinds of industry printing application by USA TRIDENT and Japan EPSON print-head ,such as textile ,ceramic ,solvent, water base, UV printing.
  • Page 2 http://www.titanjet.com.cn Titan-jet 1901/1902 water base & eco-solvent piezo printer Instruction manual Statement of responsibility and copyrights The manual is just for assembling the printer after you purchased the Titanjet 1901 or 1902. Our company does not responsible for any expression and obligation on content. Maybe there are many writing errors and careless omission of technical description even if detailed examination, we would like to accept advice to improve our service.

  • Page 3: Table Of Contents

    http://www.titanjet.com.cn 1 、 Installation of software and USB driver ----- ------------------------------------------22 2 、 Main Menu --------- ----------------------------------------------------------- -------------------28 File Menu ------------------------------------------------------------------------------------------------------ -----------------------------------------------------------------------------------29 Printing Menu ----------------------------------------------------------------------------------------29 Tools ------------------------------------------------------------------------------------------29 Help 3 、 Tool Bar Introduction ------------------------------------------------------------------------29 4 、 Printing -----------------------------------------------------------------------------------------30 5 、General settings ---------------------------------------------------------------------------------30 6 、...
  • Page 4 http://www.titanjet.com.cn Chapter I Brief Introduction Summary Thank you very much for purchasing our product, this manual can help you to assemble and use the printer, through the index, you can find the topic related quickly. Please place the reference manual easy to reach. This manual is made up of four parts: 1):How to operate the Printer , 2):How to use Printing control software 3):How ot use Maintop software,...
  • Page 5 http://www.titanjet.com.cn table or cover. C、 Make sure the carriage has been fixed on the original place before moving printer. 3. Attentions for installation and use environment The printer should be positioned stably and levelly, and well for ventilation, for easier plug on/off, Place your printer close to wall outlet.
  • Page 6 http://www.titanjet.com.cn Dimension 3.15M * 0.82M * 0.68M Weight 280 KG Chapter II Installation and Acquaintance of Printer 1、Acquaintance of Printer Illustration of Titan-jet 1901/ 1902 water base & eco-solvent piezo printer 2.Keypad operating instruction of Titan-jet 1901/1902 water base & eco-solvent piezo printer Clean: Automatic Ink suction button Roller Start: Automatic material feeding, take up button Print/Pause: Printing start, pause，continue button...
  • Page 7 http://www.titanjet.com.cn Move Down: Material move forward button 3. Installation of Titan-jet 1901/1902 water base & eco-solvent piezo printer Installation steps after unpacking： 3.1：unpacking: Remove the Buffer foam and dustproof plastic wrap after unpack, take out of all spare parts, check Attention：Check carefully to confirm no spare parts lost!!！...
  • Page 8 http://www.titanjet.com.cn B: Wear the material holder tray on steel roller, fix the square metal and steel roller with 10 pcs M4*10 cross screw onto stander(each side 5 pcs screw),Install it well so as to material feeding can be controlled well when printing. 3.3.2，Installation of fans.
  • Page 9 http://www.titanjet.com.cn Assembling illustration Attention：Be careful when assembling to make sure every step is accurate and screw fix well Overall view of printer： 4 、Electrify, reset of carriage and others 4.1. take out the power wire from spare parts box and connect printer to 220V AC power supplier, main board will release a bee sound when press the switch on, and the 6 lights on the carriage will lighting, see illustration: 6 Lights...
  • Page 10 http://www.titanjet.com.cn a sound, this actions mean the carriage reset normal, otherwise you need to check if the connections of machinery and limit switch connect well or not. Limited switch ，turn on the power button in the front of the printer. 4.3 press the fun button on the key panel check all funs work well or not, turn on the button for front, middle, back heating, check heating system 。...
  • Page 11 http://www.titanjet.com.cn 4.4 press move down ,move up button to check material feeding and backward function work well or not, press one time for action, second time for pause 4.5 move the wiper front and back slightly to testing the wipe motor, if the wiper can not move freely; apply some lubricating oil to the small guide rail.
  • Page 12 http://www.titanjet.com.cn Click first one to start install Choose installing root and click OK Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 12 -...
  • Page 13 http://www.titanjet.com.cn 1.2、Maintop printer Setup and installing： A、 after installed the software，operate as following step: start-procedure-maintop-open software-file- printer setup B、dialogue box will appears after opening printer setup: Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 13 -...
  • Page 14 http://www.titanjet.com.cn C、C、Click the button: installing maintop printer 1901/1902（DYE) or TJ-4C(ECO) D: Attentions: Users have to choose the printer type according to your model no. Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 14 -...
  • Page 15 http://www.titanjet.com.cn E: the printer will show #TJ5-4C(DYE)“ as below according to your Choice after installing F、Set the installed Model No. as default printer, installation finished. 2、Using of software a、New file：Open software—file—new file Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 15 -...
  • Page 16 http://www.titanjet.com.cn b、Setup the paper size in dialogue box。 Import picture ： Import picture file C、 — Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 16 -...
  • Page 17 http://www.titanjet.com.cn 、 you’ll dialogue box: Import graph file, choose wanted picture- open e、choose the imported picture and click the mouse right button, click picture property. Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 17 -...
  • Page 18 http://www.titanjet.com.cn f、modify the size of picture, choose change picture proportional then click OK 3.printing Image： a、open file —printing Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 18 -...
  • Page 19 http://www.titanjet.com.cn b、in printing dialogue box, click printer setup button into the setting interface before printing First set the resolution of the picture to be printing, then choose the matched paper type from paper type pull down menu, click OK. See illustration below: Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn...
  • Page 20 http://www.titanjet.com.cn Attention: the paper type of indoor water base will show as synthesis frontlit, outdoor oil base will show as self adhesive vinyl. c、we have 2 way for printing(to make sure the print port is Epson 5) ①Printing after RIP First, select the printing resolution and paper type you wanted, then click AUTOMATIC SETUP PAPER button, click OK, click print to file button, save file(format as *.prn) Tel：+86-760-88667089 / 88667090...
  • Page 21 http://www.titanjet.com.cn ②printing and RIP at same time： select the printing resolution and paper type you wanted, then click AUTOMATIC SETUP PAPER button, click OK, click printing。 Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 21 -...
  • Page 22 http://www.titanjet.com.cn 4、Software related A、dimension compensation：when dimension tolerance existed between printed and designed picture, try to operate as the following step in Maintop software: click printer setup button in printing dialogue box, and the dialogue box of automatic compensation will appear. For example：you are planning to print a picture(expected width:100mm,expected height:100mm),in fact, the printed picture width is 100mm and height is 110mm,then you just need to adjust the printing height to 110mm in automatic compensation dialogue box, Click OK, your setup will be saved automatically.
  • Page 23 http://www.titanjet.com.cn C、remind：other unaccomplished matter please refer to maintop users manual Chapter V Printing control software 1、printing software and main board USB driver installation of TITAN-JET TT-1901/1902 printer (connection of computer and printer) 1.1、Find the control software CD of TT-1901/1902 printer in spare part box, insert onto CD-ROM, find and double-click Titan Print –Epson exe setup icon, start installing.
  • Page 24 http://www.titanjet.com.cn Click“next” Choose file installation root，set Disk D as default，then click” next” Click“next” Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 24 -...
  • Page 25 http://www.titanjet.com.cn Click“next” Software is installing。 。 。 ， Click “Finish”, desktop will appear the icon: it means finished the installation of printing control software of Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096 Web: http://www.titanjet.com.cn email:sales@titanjet.com.cn Add：No.6-2,Jin Hua Zhong Road,Zhongshan City,Guangdong,China - 25 -...
  • Page 26 http://www.titanjet.com.cn TITAN-JET TT-1901/1902 printer. 2、Open TITAN-JET TT-1901/1902 control software 、 ， A Double click the icon on desktop，or click start-procedure-Titan Print you will open the control software interface as below： B、installation of main board USB driver Click tools---choose INSTALL PRINTER D RIVER under the pull down menu Attention: Printer could not connecting to computer while install printer...
  • Page 27 http://www.titanjet.com.cn C、Connecting Printer to Computer Connecting the USB cable to computer and printer, turn on printer, computer will show new hardware discovered. The new hardware is the main board USB driver of TITAN-JET TT-1901/1902 printer, with install this hardware, computer will able to control the printer normally. Click “next”...

  • Page 28: Main Menu

    http://www.titanjet.com.cn If you can not find the“Epson5 USB Device” in your computer or the“Epson5 USB Device” display with a question mark，it means the driver is failed to install. 2、Main Menu 2.1、file menu Click file menu, the pull-down submenu will show as below: A、Import File/Import Directory：add file/directory to be printed by printer B、Exit：exit control software 2.2、printing menu...

  • Page 29: Tools

    http://www.titanjet.com.cn F、Backup/Restore：you can backup/Restore the well performed parameters into a Disk 2.3、Tools Menu A、Print Head Clear B、Voltage Adjust：Adjust voltage of Print head（non-Professional technicians are not suggested to operate） C、External Device Control：control of Take up system, feeding system and Fan device D、Clear up preview file：clear up the temporary files created by preview E、Clear up log file：clear up the printed file record F：Backup/Restore：see Backup/Restore in printing menu.
  • Page 30 http://www.titanjet.com.cn L、One Key Adjust M: Exit：Exit control software 4、Printing job List Menu Show you the current file name, status, print mode, size, path and so on 5、Usually parameter setting A、Margin： a、Zero to Paper：setup the margin according to position of material loaded by user b、Paper Margin：Start printing distance to material edge B、Print Direction：...
  • Page 31 http://www.titanjet.com.cn 7、control software related introduction Parameter setting： 7.1、Print head Setting 7.1.1、users don’t need to calibrate the print head by themselves due to the calibration has been done before export in factory. 7.1.2、 Single print head printer no need to adjust. 7.1.3、...
  • Page 32 http://www.titanjet.com.cn incorrect, move up or down the black plastic wrench to adjust(on the right side of the carriage) The red line and blue line will keep alignment through move up of move down the wrench 7.2.3、Two-way Adjust：see details in 7.1.4 7.2.4、Stepping Adjust：...
  • Page 33 http://www.titanjet.com.cn 7.2.5、Stepping Number：Refer to Usually Parameter 7.2.6、Margin/Length：Refer to Usually Parameter 7.2.7、Color Select: you can select whatever color for adjust 7.3 dual print head printing adjust 1902 7.3.1、click this button to adjust the single print head Tight or loose the following 4 screw in picture 1 for micro adjust to get the results for picture 2， Picture 1 Picture 2 7.3.2 Click 2 Head Adjust button .
  • Page 34 http://www.titanjet.com.cn 2） 、If you get the following image,you need to adjust the 4 screws of picture 3（tighten screw 1 and 2,adjust screw 3 and 4 to change the print head position. Picture 3 3)stepping adjust is the same as 1901 7.4、Other Parameter setting Tel：+86-760-88667089 / 88667090 Fax：+86-760-88667096...
  • Page 35 http://www.titanjet.com.cn 7.4.1、Stepping speed：the speed of the material moving after printing 1 pass 7.4.2、Roll Speed：speed of material move forward or backward when no printing. 7.4.3、Finish Print paper setting： length of paper move forward or backward after finished printing（mm） 7.4.4、Preview：color display on Control software interface 7.4.5、Color select：select the color for printing ，click it and the carriage will move to 7.4.6、Machine length：find the right direction icon on control software...
  • Page 36 http://www.titanjet.com.cn Please see following picture. Attention: If you change the parameters, the printer will be unnormal and the responsibility should be beared by youself.. 2,Speed value setup： A:Carriage speed setup：operator can fix several best speed value which can make the printer printing well according to the printing experiences。...
  • Page 37 http://www.titanjet.com.cn 3、Feather Setting：Only for technician of Manufaturer 4、Epson setting：Here we introduce 4 practical functions: A: Cleaning print head time: the time for automatically cleaning print head,factory suggestion is betwee n 4000-12000 millisecond B: Strong Spray time: to avoid ink mix together, the print head will perform a strong spray action after finish cleaning print head,operators can change the time as you like,to avoid wasting ink,factory suggestion is between 2000-5000 millisecond C: Original position：the print head will stay at the original position and spraying while no printing job...
  • Page 38 http://www.titanjet.com.cn 8.2 Click cleaning button , to check carriage, ink pump and wiper works well or not. It should be working like this: the ink pump will pumping the waste ink in ink station with click cleaning button, and carriage move to home place and print head move close to capping, ink pump sucking ink from print head for 10 seconds, the wiper move out while the carriage will move back and print head spray out ink, the wiper should be 0.5-1mm higher than print head.
  • Page 39 http://www.titanjet.com.cn 8.4.14、use a injector to transfer ink from ink tank to damper，each color at least 20ml and the ink level of damper should be the same: 2/3 of the damper volume. 8.5、Installation of print head, sucking adjust of ink station and connecting of data cable. A、...
  • Page 40 http://www.titanjet.com.cn 30second or 1 minute to finish cleaning. check the ink pump if can pump ink out during cleaning。It is important, if can not, adjust the position of the ink station or stopper buffer until ink can be pump out well, it spend times, see the following adjust references: Loose screw 1、2、3、4 could adjust the position of ink station.
  • Page 41 http://www.titanjet.com.cn 9、Voltage adjustment： Close the printing control system，find Epson Mainboard click power on choose language you can know the voltage for present，if voltage value need to be changed, type the voltage value into the 26 box as following picture:click set： 7、adjust：...

  • Page 42: Chapter V Maintenance Guide

    http://www.titanjet.com.cn language ,choose ,change down and up value,you can adjust the wiper position： Chapter V Maintenance guide 5.1 maintenance of machine 5.1.1、the steel beam must be cleaned by paper every half month, and apply bearing lubrication after clean to avoid the worn of bearing. 5.1.2、other parts is according to the actual operation of printer: A、the pinch roller B、gear on take up and feeding system...
