Matan Digital Printing Barak Series Technical Notes page 6

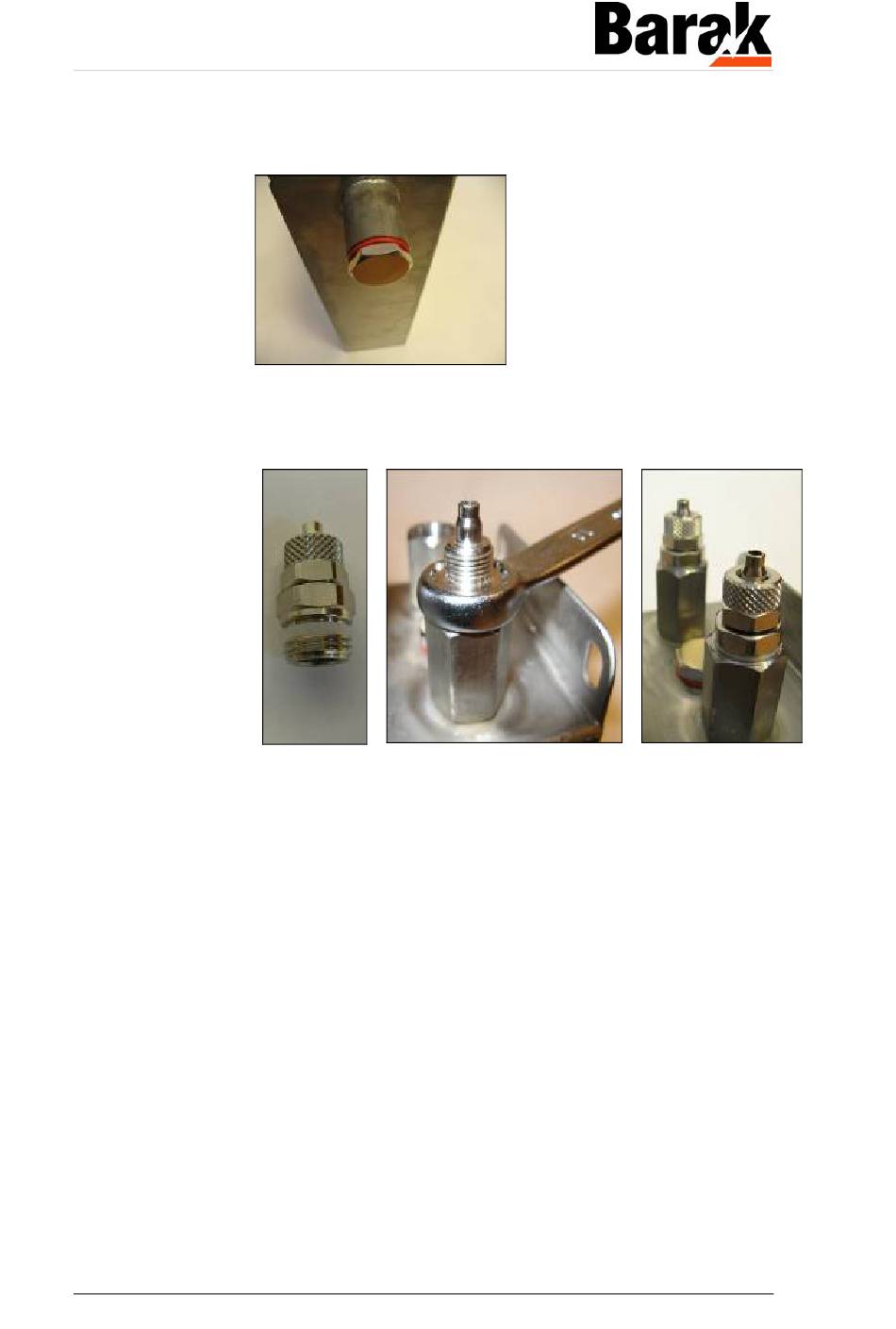

15. Attach the red gasket to the drain plug and tightly close the
16. Connect the two new metal fittings to the tank's threaded
17. Relocate the MIT on the printer's chassis and attach it with
18. Repeat all the above steps for the other three tanks.
10100125 - A
drain hole with the plug, as shown below.
If the gasket is not in good condition, you should replace it.
fittings, using a #12 metric wrench, as shown below.
These fittings don't need Loctite or any other sealing
material, as they have their own built-in plastic O-ring.
the four screws.
© Matan Digital Printers Ltd Page 6 of 19
