Matan Digital Printing Barak Series Technical Notes page 10

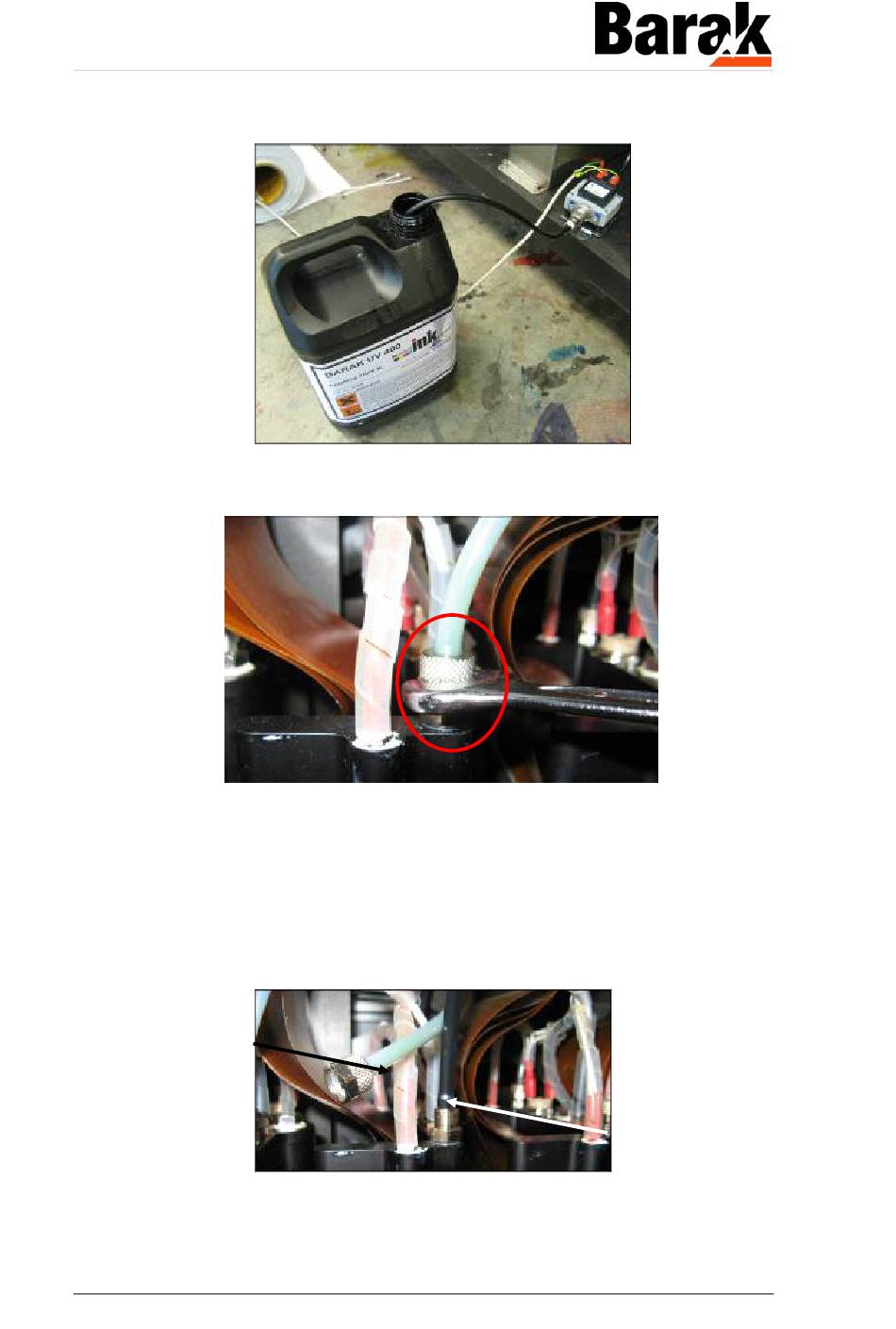

12. Insert the end of the other black tube from the pump into
13. Disconnect SIT'
14. Connect a black ink pipe to the SIT and insert the other end
15. Turn on the external pump.
16. The flushing fluid will wash the SIT and all the dirty liquid
Vacuum Pipe
10100125 - A
the bottle of flushing fluid, as shown below.
vacuum pipe, as shown below.
S
of the pipe into an empty bottle.
will drain into the bottle, as illustrated in the following two
figures.
© Matan Digital Printers Ltd
Black Ink Pipe
Page 10 of 19
