4. Compact Bio/Compact Bio Luxury boiler design

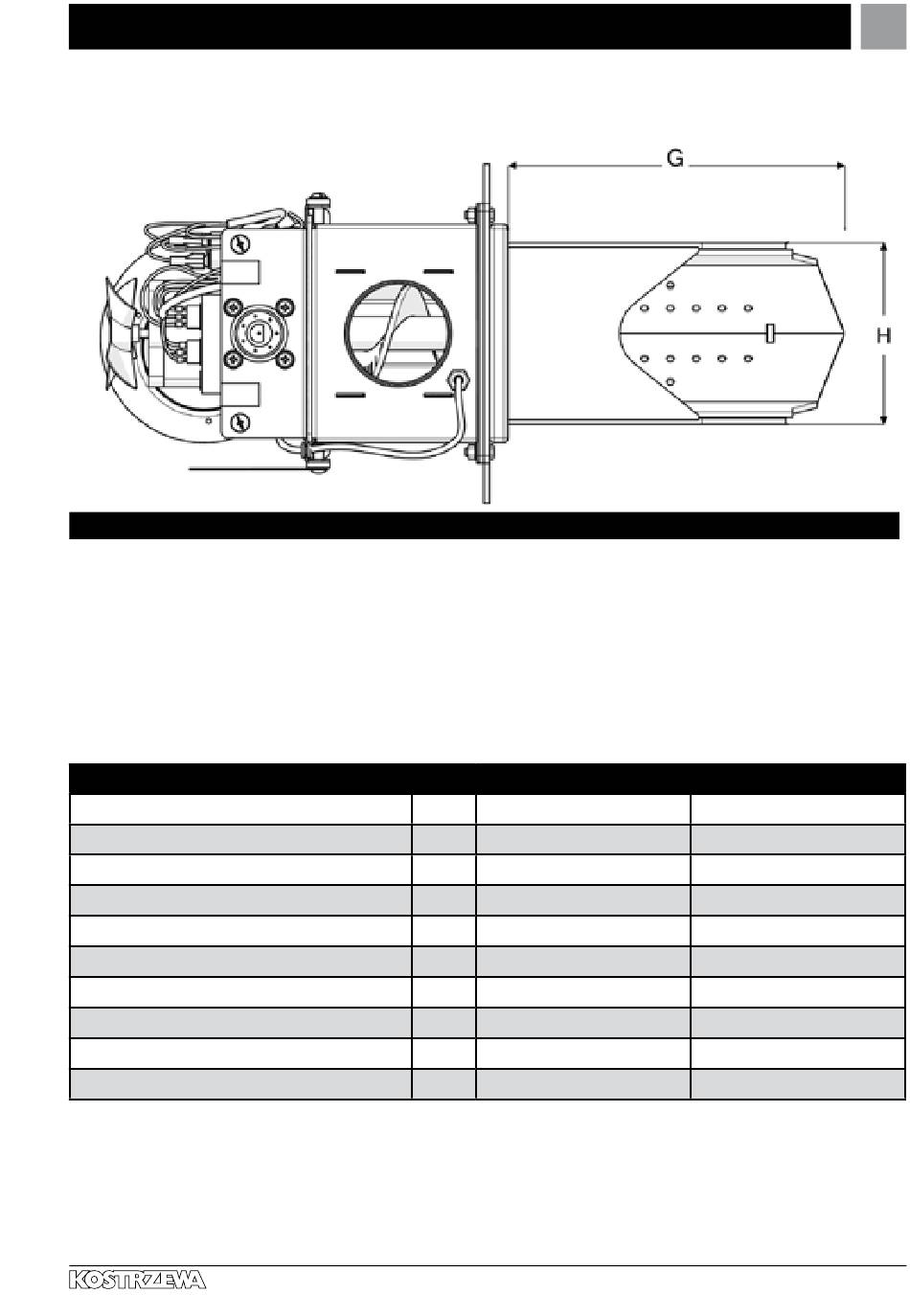

Platinum Bio v02 burner dimension diagram (without housing)
Platinum Bio v02 burner dimension data
PARAMETER
A
B
B1
C
D
E
F
G
H
I
Experts in biomass heating
SI PB 16-v02
mm 245
mm 222
mm 180
mm 258
mm 497
mm 247,5
mm 123,5
mm 232
mm 119
mm 119
Compact Bio / Compact Bio Luxury User Manual – EN 07.15
67
PB 24-v02
245
222
180
258
537
247,5
123,5
272
119
119
