Installation
Start-Up
Maintenance
Parts
Warranty
For Residential and Commercial Use
SSC Models
The surfaces of these products contacted by potable (consumable) water contain less than 0.25% lead by weight as required by
the Safe Drinking Water Act, Section 1417.
This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing.
Perform steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death.
The manufacturer reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd

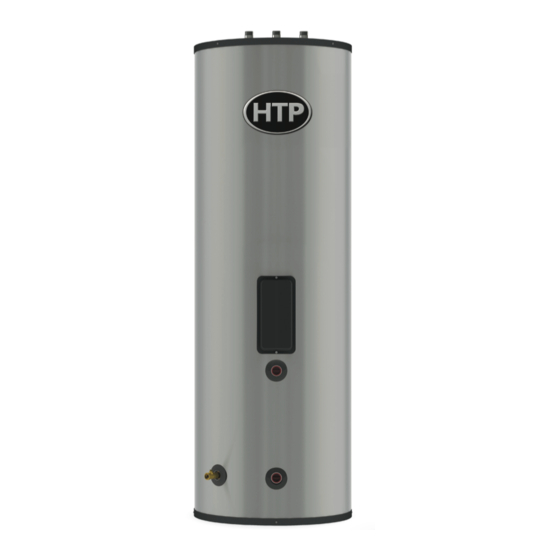

Indirect Fired Water Heaters
New Bedford, MA 02745
Superstor
Contender
www.htproducts.com
lp-65 Rev. 002 Rel. 010 Date 10.11.19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HTP SSC Series
Summary of Contents for HTP SSC Series
- Page 1 Superstor Contender Indirect Fired Water Heaters Installation Start-Up Maintenance Parts Warranty For Residential and Commercial Use SSC Models The surfaces of these products contacted by potable (consumable) water contain less than 0.25% lead by weight as required by the Safe Drinking Water Act, Section 1417. This manual must only be used by a qualified installer / service technician.
-
Page 2: Table Of Contents
Part 3 - Piping A. Plumbing The following defined terms are used throughout this manual to B. Boiler Connections bring attention to the presence of hazards of various risk levels or to C. Domestic Piping Inlet important product information. D. Hot Water Outlet E. -
Page 3: When Servicing The Water Heating System
Installer - Read all instructions in this manual before installing. NEVER use any toxic chemical, including automotive, standard glycol Perform steps in the given order. antifreeze, or ethylene glycol made for hydronic (non-potable) systems. These chemicals can attack gaskets and seals in water User - This manual is for use only by a qualified heating installer systems, are poisonous if consumed, and can cause personal injury / service technician. -
Page 4: Performance And Sizing Guidelines
High heat sources (generating heat 100 F / 37 C or greater, such as stove pipes, space heaters, etc.) may damage plastic components of the water heater as well as plastic vent pipe materials. Such damages ARE NOT covered by warranty. It is recommended to keep a minimum clearance of 8”... -
Page 5: Water Chemistry Requirements
It is mandatory that all plumbing be done in accordance with federal, equipment. HTP recommends having water quality professionally local, and state plumbing codes and practices. Failure to properly analyzed to determine whether it is necessary to install a water install the water heater WILL VOID the warranty. -
Page 6: Temperature And Pressure Relief Valve
Use both thread tape and pipe dope to connect an NPT male X 3/4” F. Scalding (minimum) pipe adapter. A shut-off valve between the hot water supply and tank outlet is recommended for ease of service. Use a back flow preventer designed for water heater installations. This valve An ASSE 1017 or ASSE 1070 temperature limiting or mixing valve should be installed on the cold water fill supply line per local codes. -
Page 7: Potable Expansion Tank
TOP VIEW Figure 2 - Dimensions G. Potable Expansion Tank Pressure Drop for Pipe Length of 1” Copper, A potable hot water expansion tank may be required to offset heated Six 90 Elbows, and One Tee water expansion. If there is a back flow preventer or any other type Model 20’... -
Page 8: Applications
I. Applications Figure 3 - Mixing Valve Application Figure 4 - Expansion Tank Application Figure 5 - Installation with Zone Valves Figure 6 - Installation with Circulators NOTES: 1. Minimum pipe size should match connection size. Upsize pipe accordingly if greater flow is required. 2. -
Page 9: Part 4 - Heater Control And Wiring
Figure 7 - Installation with Storage Tank Figure 8 - Multiple Tank Installlation NOTES: 1. Minimum pipe size should match connection size. Upsize pipe accordingly if greater flow is required. 2. A thermal expansion tank suitable for potable water must be sized and installed within this piping system between the backflow preventer and the cold water inlet. -
Page 10: Wiring Diagrams
C. Wiring Diagrams Figure 9 - Wiring with Circulators Figure 10 - Wiring with Zone Valves Figure 12 - Zoning with Circulators - R8182D and R845A Relay Figure 13 - Zoning with Circulators Using L8124 E-F, and R845A Relay Figure 14 - Using L8148A or L8152A Cold Start Boiler Control with Circulators Figure 11 - Using L8148A or L8152A Cold Start Boiler Control with Zone Valves... -
Page 11: Part 5 - Start-Up And Operation
Part 5 - Start-Up and Operation 1. Fill the water heater by opening the cold water shut-off valve. Purge air from the system by opening a hot water outlet at a fixture in a kitchen or bathroom. When water flows freely from the outlet, the system is purged. -
Page 12: Part 6 - Maintenance And Troubleshooting
Part 6 - Maintenance and Troubleshooting Periodic maintenance should be performed by a qualified service technician to ensure all equipment is operating safely and efficiently. The owner should make necessary arrangements with a qualified heating contractor for periodic maintenance of the heater. Installer must also inform the owner that the lack of proper water heater care and maintenance may result in hazardous conditions. - Page 13 Troubleshooting No Hot Water Not Enough Hot Water Problem Possible Solution Problem Possible Solution Zone valve not opening Open manually to replace Zone valve restriction 1” full bore replace zone valve Circulator not operating Check or replace Circulator arrow reversed Reverse circulator Tank control set too low Raise tank temperature*...
-
Page 14: Limited Warranty
Society of Mechanical Engineers (ASME) installed with the water heater assembly in accordance with federal, state, and local codes. HTP warrants each indirect fired water heater to be free from defects 2. Have a vacuum relief valve certified to ANSI Z21.22 - Relief Valves... - Page 15 During the claims process a product that must be replaced will be component / attachment not supplied by HTP. given a designation of either a) field scrap, or b) return to HTP. If the 17. Damages, malfunctions, or failures caused by abuse, accident,...
-
Page 16: Customer Installation Record Form
Customer Installation Record Form The following form should be completed by the qualified installer / service technician for you to keep as a record of the installation in case of a warranty claim. After reading the important notes at the bottom of the page, please also sign this document. Customer’s Name Date of Installation Installation Address...
