4.

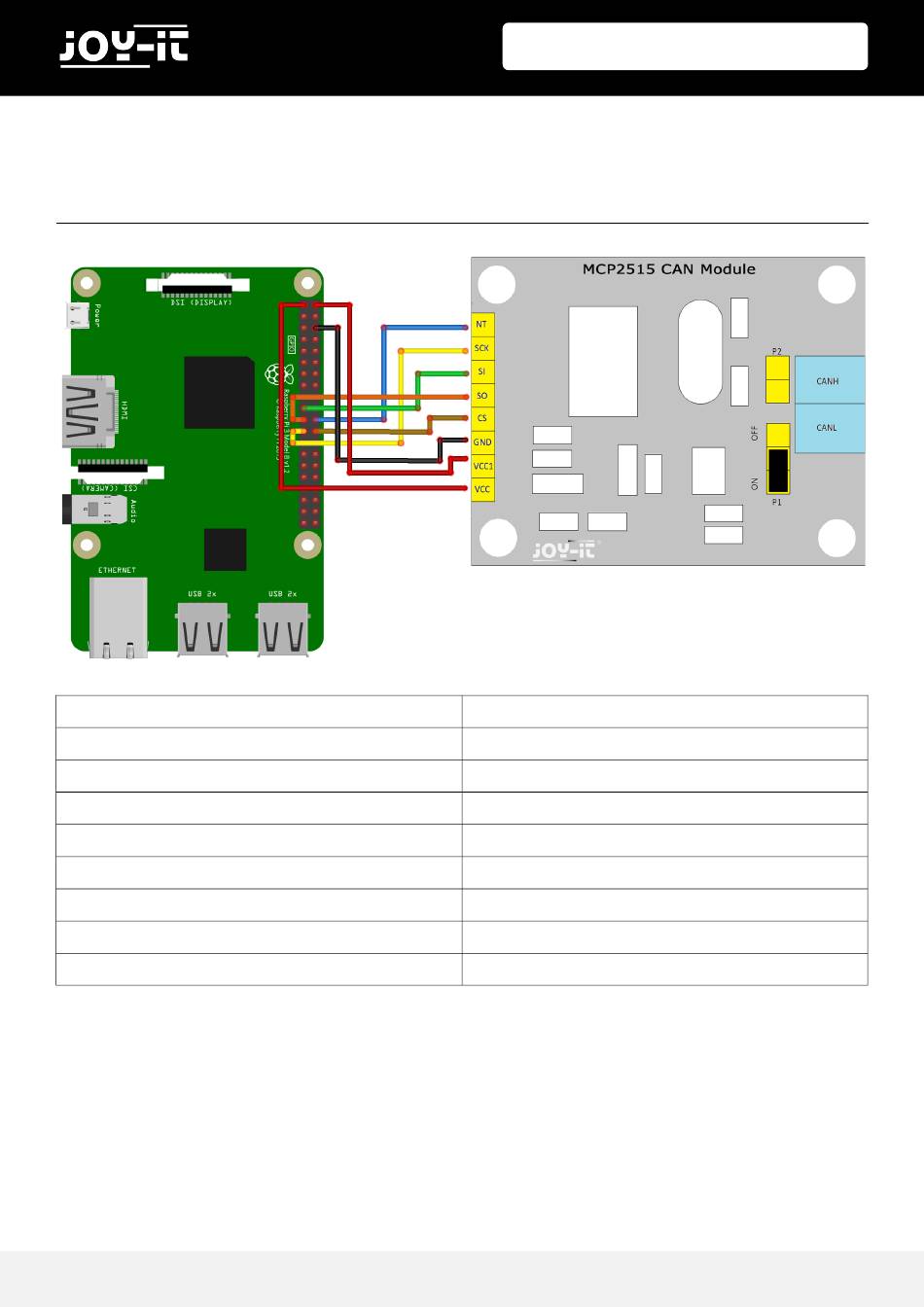

USAGE WITH A RASPBERRY PI

CAN Module
Attention! Please make sure to connect the VCC1 and VCC connectors correctly. The module works with a
voltage level of 5V, but in contrast to an Arduino, the inputs and outputs of the Raspberry Pis are only
designed for a voltage of 3.3V. For this reason, our module has two voltage inputs (VCC1 and VCC). This
allows you to use the module on your Raspberry Pi without hesitation and without permanently damaging
it.
Published: 30.10.2018
NT
SCK
SI
S0
CS
GND
VCC1
VCC
Copyright by Joy-IT
CAN Module
Raspberry Pi
22 (GPIO 25)
23 (SCK)
19 (MOSI)
21 (MISO)
24 (CE0)
6 (GND)
2 (5V)
1 (3.3V)
