USAGE WITH AN ARDUINO

CAN Module
For use with an Arduino, we recommend using the MCP2515 library.
This is available on the Github platform and can be downloaded there. Simply copy the library folder into
your Arduino library. This is usually located at : "C:\[your username]\Documents\Arduino\libraries".
Among the examples of this library you can find an example for a transmitter as well as for a receiver.
With these examples the basic functionality of the system can be explored excellently. With a second
Arduino and a second Can module, for example, a communication between both devices can be
established, where one module takes over the transmitter and the other module the receiver. In this case,
connect both CAN-High interfaces and both CAN-Low interfaces of the two modules with each other.
Published: 30.10.2018

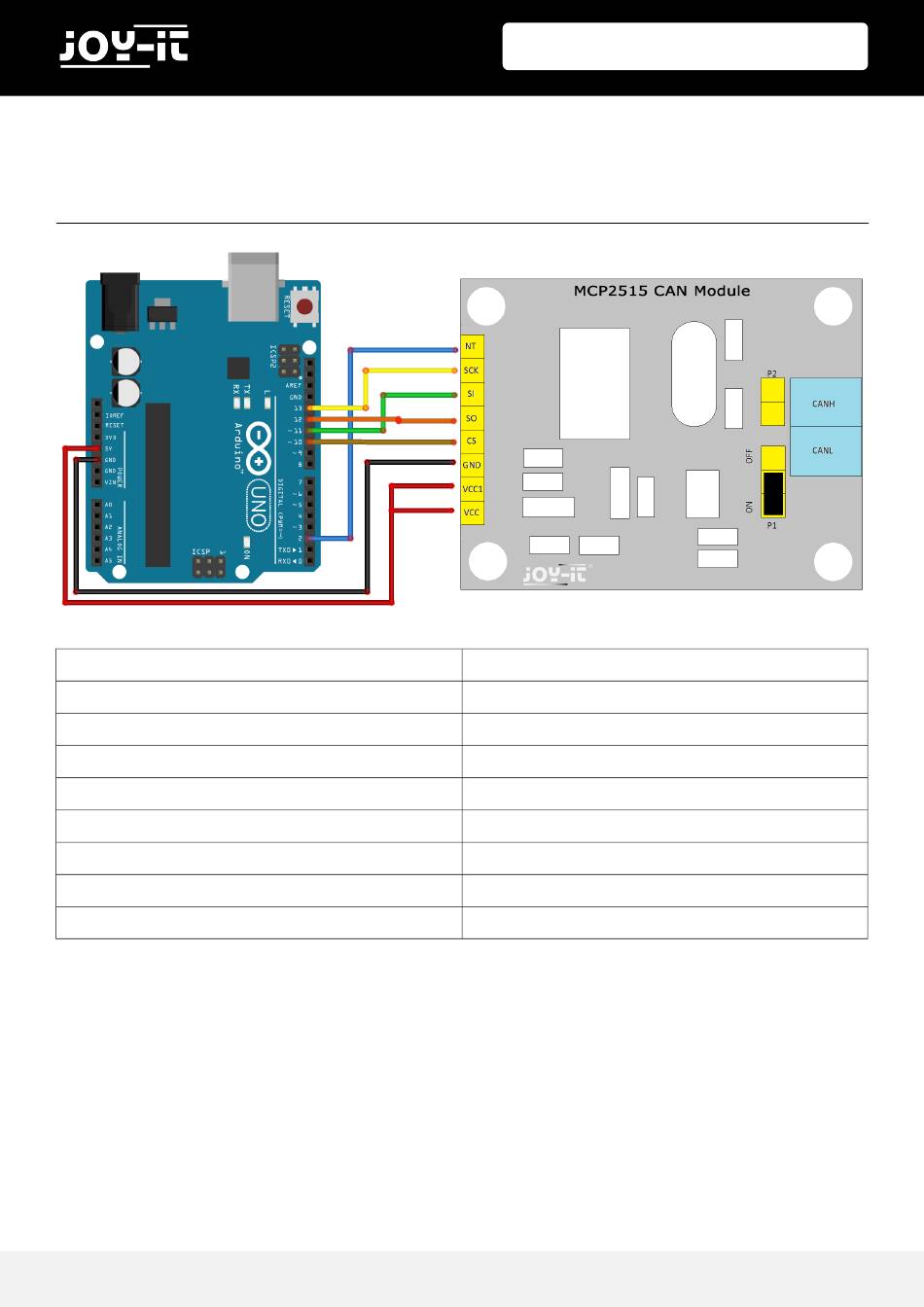

NT
SCK
SI
S0
CS
GND
VCC1
VCC
Copyright by Joy-IT
CAN Module
Arduino
D2
D13
D11
D12
D10
GND
5V
5V
