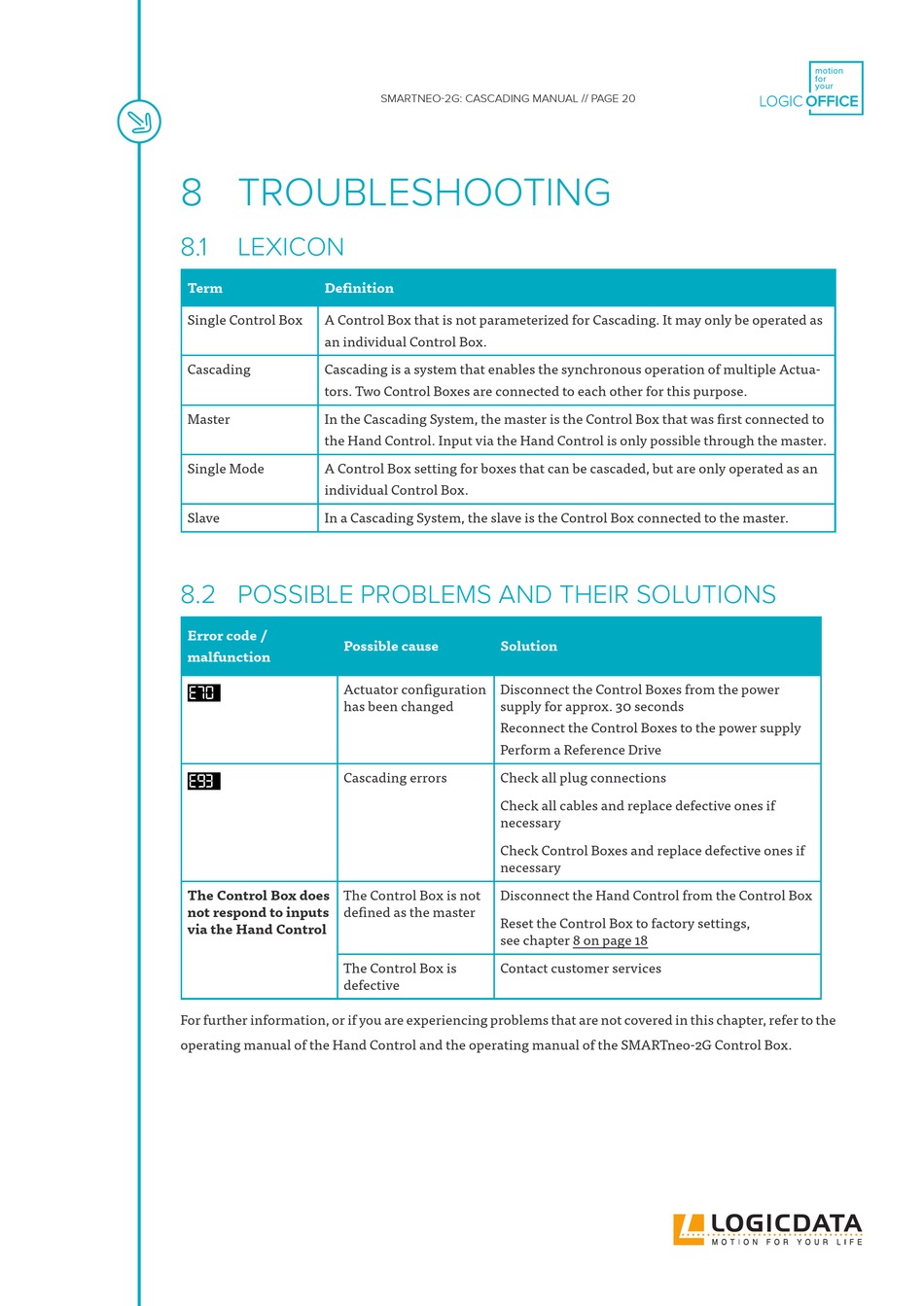

8 TROUBLESHOOTING

8.1

LEXICON

Term Definition
Single Control Box A Control Box that is not parameterized for Cascading. It may only be operated as
an individual Control Box.
Cascading Cascading is a system that enables the synchronous operation of multiple Actua-
tors. Two Control Boxes are connected to each other for this purpose.
Master In the Cascading System, the master is the Control Box that was first connected to
the Hand Control. Input via the Hand Control is only possible through the master.
Single Mode A Control Box setting for boxes that can be cascaded, but are only operated as an
individual Control Box.
Slave In a Cascading System, the slave is the Control Box connected to the master.

8.2 POSSIBLE PROBLEMS AND THEIR SOLUTIONS

Error code /
Possible cause
malfunction
Actuator configuration
E7O
has been changed
Cascading errors
E93
The Control Box does
The Control Box is not
not respond to inputs
defined as the master
via the Hand Control
The Control Box is
defective
For further information, or if you are experiencing problems that are not covered in this chapter, refer to the
operating manual of the Hand Control and the operating manual of the SMARTneo-2G Control Box.
SMARTNEO-2G: CASCADING MANUAL // PAGE 20
Solution
Disconnect the Control Boxes from the power
supply for approx. 30 seconds
Reconnect the Control Boxes to the power supply
Perform a Reference Drive
Check all plug connections
Check all cables and replace defective ones if
necessary
Check Control Boxes and replace defective ones if
necessary
Disconnect the Hand Control from the Control Box
Reset the Control Box to factory settings,
see chapter 8 on page 18
Contact customer services
