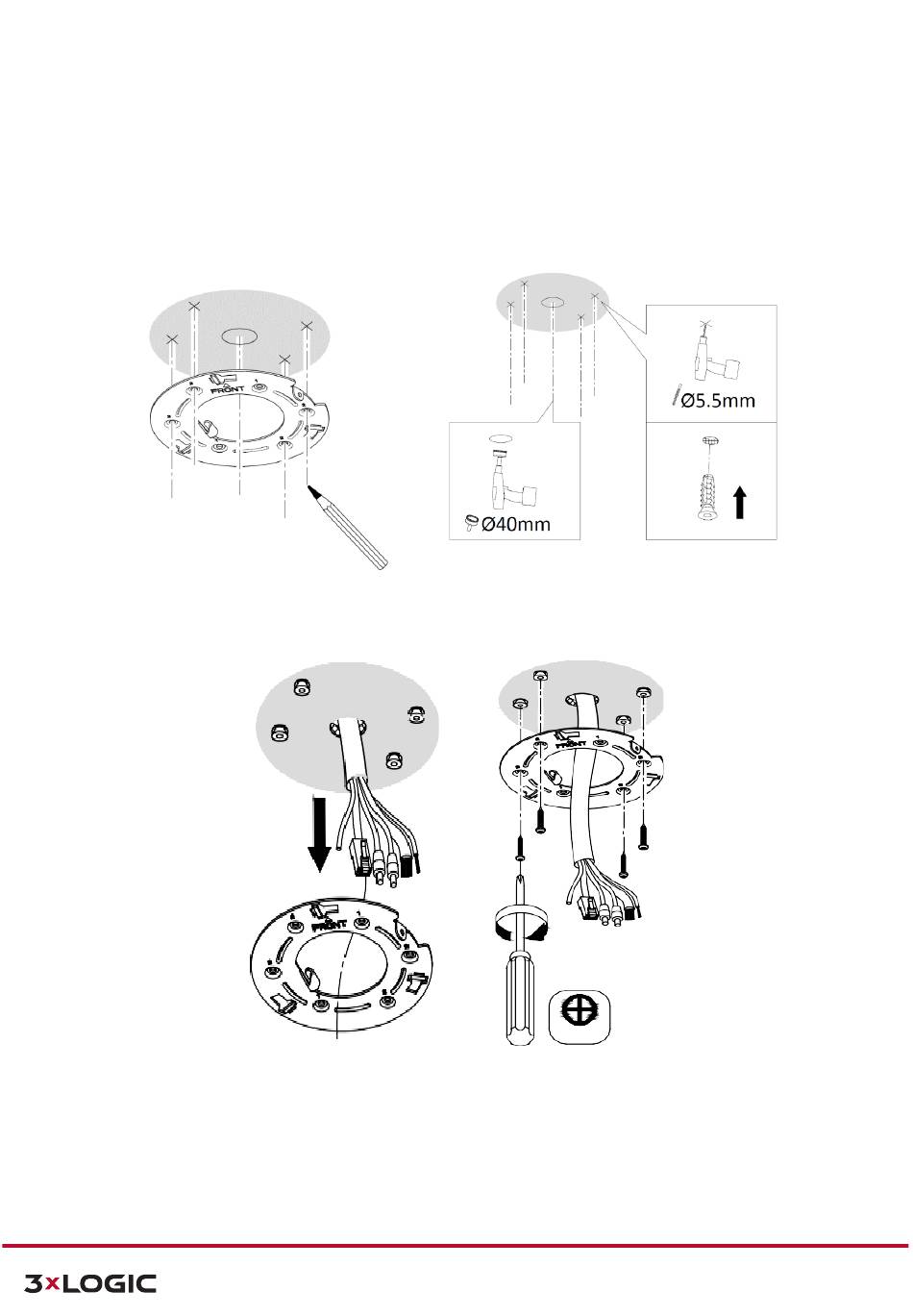

INSTALLING THE CAMERA - CABLING ROUTED THROUGH BASE
Steps:
1.
Use a pencil and the mounting base to mark the drilling points and the cable hole on the installation
surface.
2.
Drill the cable hole and anchoring points into the installation surface.
3.
Insert the anchors.
4.
Route the cablings harness through the center cable hole.
5.
Use a Philipps-head screwdriver to fasten the mounting base to the installation surface.
6.
Proceed to Installation – Cabling and Safety Wire for next steps. .
12000 Pecos St., Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
S-Series Camera Quick Start Guide | VX-2S-D4-RIA
5.0
5
