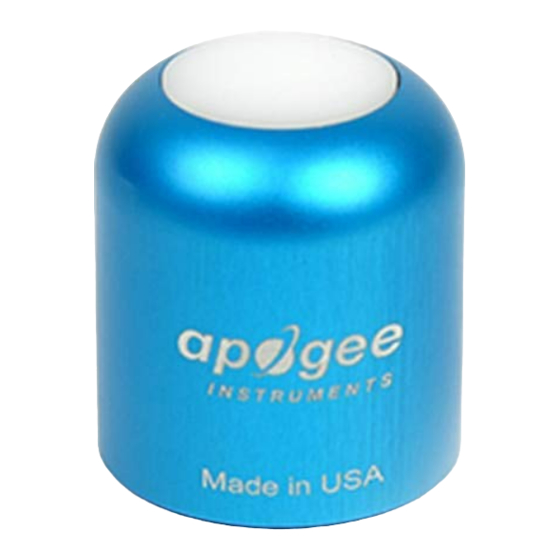

Summary of Contents for METER APOGEE SQ-521
- Page 1 APOGEE QUANTUM SENSOR...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ....................2 2. Installation ....................2 2.1 Set Up Mounting Assembly ................ 4 2.2 Connect to METER ZENTRA Series Logger ..........5 3. Data Interpretation ................6 4. Troubleshooting ..................6 5. Customer Support ................7 Index ........................ -
Page 4: Introduction
The information in this document explains how to install the required hardware to mount Apogee SQ-521 sensors that have been preconfigured by METER Group to work seamlessly with METER ZENTRA series data loggers. Details of how the ZENTRA system handles the data are also included. - Page 5 INSTALLATION Table 1 Installation (continued) Conduct System Check METER strongly recommends setting up and testing the system (sensors and data loggers) in the lab or office. Inspect and verify all components are intact. Visit the data logger product page for the most up-to-date software and firmware.
-
Page 6: Set Up Mounting Assembly
The Apogee Quantum sensor must be level to accurately measure PPFD incident on a horizontal surface. Each Apogee Quantum sensor purchased from METER comes with an AL-120 Solar Mounting Bracket with Leveling Plate. The AL-120 can be mounted to either a horizontal or vertical post, depending on which set of holes is used. -
Page 7: Connect To Meter Zentra Series Logger
Use ZENTRA Utility to set the measurement interval. Use ZENTRA Utility to configure communication settings for data transfer to ZENTRA Cloud. Sensor data can be downloaded from METER data loggers using either ZENTRA Utility or ZENTRA Cloud. Refer to the logger user manual for more information. -
Page 8: Data Interpretation
Customer Support for a replacement connector or splice kit. If a cable is damaged refer to the METER wire-splicing guide cable repair. It is recommended that Apogee Quantum sensors are returned for factory recalibration every 2 years. Visit Apogee repairs (apogeeinstruments.com/recalibration-and-repairs) or contact... -
Page 9: Customer Support
Phone: +49 89 12 66 52 0 Fax: +49 89 12 66 52 20 Website: metergroup.de If contacting METER by email, please include the following information: Name Email address Address Instrument serial number Phone Description of the problem... -
Page 10: Index
INDEX INDEX cables 3, 5 ZENTRA series data loggers 2, 3, 5 components 2 ZENTRA software connecting 5 Cloud 2, 6 customer support 7 Utility 2, 5, 6 ZSC 2 data 6 data logger. See ZENTRA series data loggers installation 2–3 mounting 3 preparation 3 tools needed 2... - Page 11 18475-01 9.10.2021 METER Group, Inc. USA 2365 NE Hopkins Court Pullman, WA 99163 T: +1.509.332.2756 F: +1.509.332.5158 E: info@metergroup.com W: metergroup.com METER Group AG Mettlacher Straße 8, 81379 München T: +49 89 1266520 F: +49 89 12665220 E: info.europe@metergroup.com W: metergroup.de...
