- Page 1 User Manual MW07 Version 1.0...
-

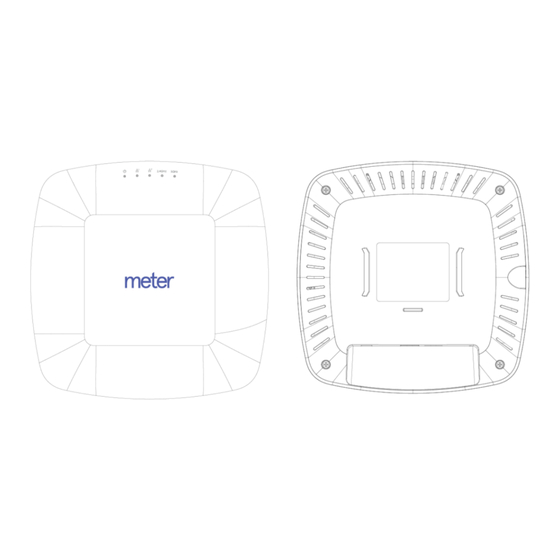

Page 2: Product Overview
ProductOverview... -
Page 3: Key Features
Introduction Key Features ・Supports IEEE802.11ac/a/b/g/n wireless standards ・Four 2.4 GHz Metal PIFA Antennas ・Four 5 GHz Metal PIFA Antennas ・One Metal PIFA Antenna for scanning radio ・Support Wave 2 MU-MIMO function ・Support Tx Beamforming to enlarge the transmitting distance. ・Support Scanning Radio, 2.4Ghz/5Ghz selectable ・IEEE802.11 PoE af Input design with Gigabit port supports. - Page 4 Physical Interface (MW07) 2.4GHz:3.29dBi; 5GHz:5.84dBi...
-
Page 5: Physical & Environment
Physical & Environment DC Input: 12 VDC/2A Power Source PoE: compatible with 802.3af/at 54Vdc/0.6A Internal High Gain Antenna ~3.29dBi 2.4GHz antennas (Peak Gain) ~5.84dBi 5GHz antennas 1 x 10/100/1000Mbps Ethernet Port with 802.3af/at PoE Interface 1 x DC power connector 1 x reset button Dimensions (W x D x H) 200x200x40 mm... - Page 6 Applications Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many applications made possible through the power and flexibility of WLANs: Difficult-to-Wire Environments: There are many situations where wires cannot be installed, deployed easily, or cannot be hidden from view. Older buildings, sites with multiple buildings, and/or areas that make the installation of a Ethernet-based LAN impossible, impractical or expensive are sites where WLAN can be a network solution.
-
Page 7: Fcc Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Meter Inc. 548 Market St., PMB 22716, San Francisco, CA 94104-5401 TEL：1-703-901-2861...
