X2 control – Basic Start Up settings

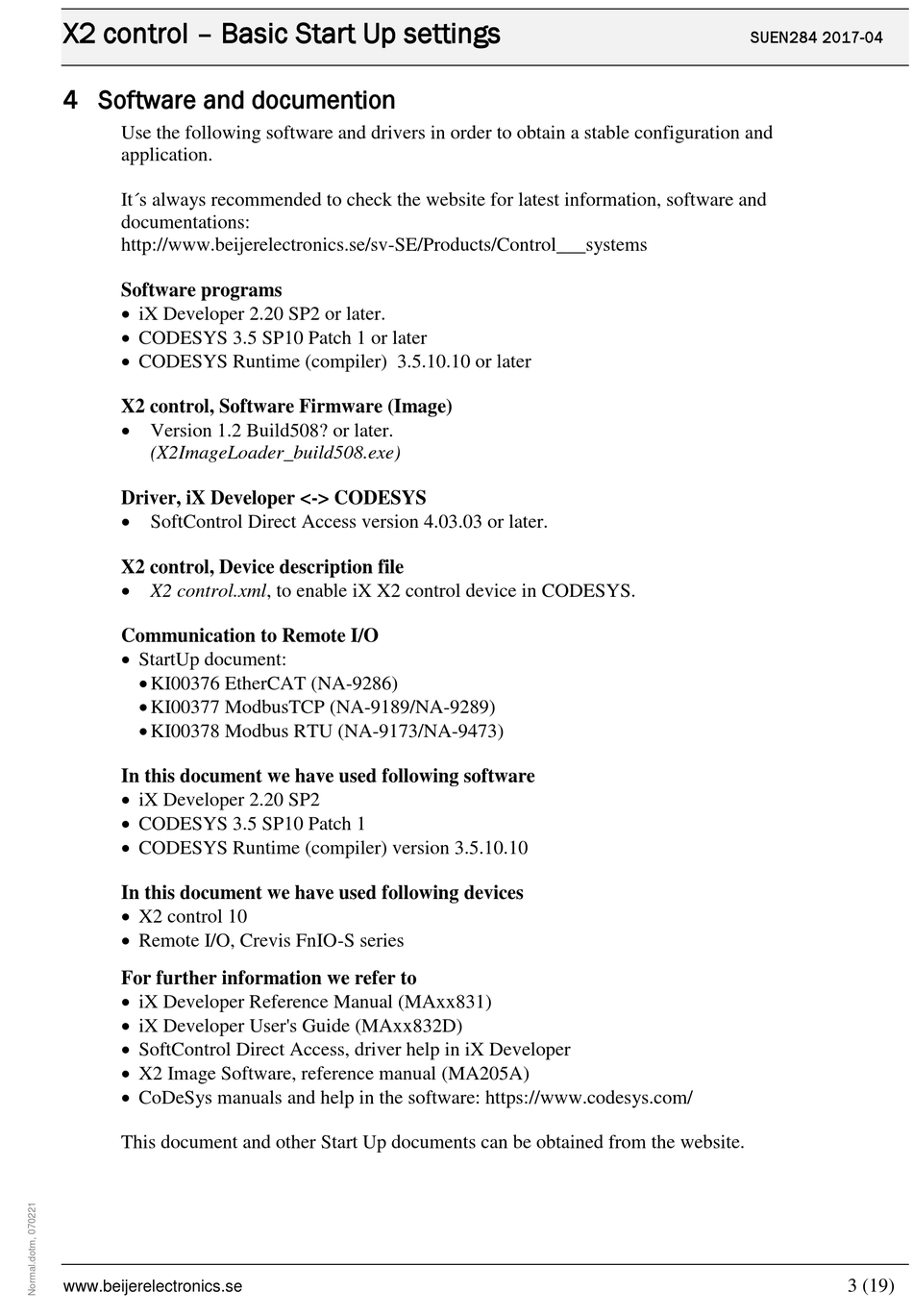

4 Software and documention

Use the following software and drivers in order to obtain a stable configuration and
application.
It´s always recommended to check the website for latest information, software and
documentations:
http://www.beijerelectronics.se/sv-SE/Products/Control___systems
Software programs
 iX Developer 2.20 SP2 or later.
 CODESYS 3.5 SP10 Patch 1 or later
 CODESYS Runtime (compiler) 3.5.10.10 or later
X2 control, Software Firmware (Image)
 Version 1.2 Build508? or later.
(X2ImageLoader_build508.exe)
Driver, iX Developer <-> CODESYS
 SoftControl Direct Access version 4.03.03 or later.
X2 control, Device description file
 X2 control.xml, to enable iX X2 control device in CODESYS.
Communication to Remote I/O
 StartUp document:
 KI00376 EtherCAT (NA-9286)
 KI00377 ModbusTCP (NA-9189/NA-9289)
 KI00378 Modbus RTU (NA-9173/NA-9473)
In this document we have used following software
 iX Developer 2.20 SP2
 CODESYS 3.5 SP10 Patch 1
 CODESYS Runtime (compiler) version 3.5.10.10
In this document we have used following devices
 X2 control 10
 Remote I/O, Crevis FnIO-S series
For further information we refer to
 iX Developer Reference Manual (MAxx831)
 iX Developer User's Guide (MAxx832D)
 SoftControl Direct Access, driver help in iX Developer
 X2 Image Software, reference manual (MA205A)
 CoDeSys manuals and help in the software: https://www.codesys.com/
This document and other Start Up documents can be obtained from the website.
www.beijerelectronics.se
SUEN284 2017-04
3 (19)
