Steca Tarom 4545 Installation And Operating Instructions Manual

Solar charge controller
Hide thumbs Also See for Tarom 4545:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Instructions and Operating Manual
Solarladeregler
Solar Charge Controller
Programmierbar, für Hybrid und Telekommunikations-Systeme
Adjustable, for hybrid and telecommunication systems

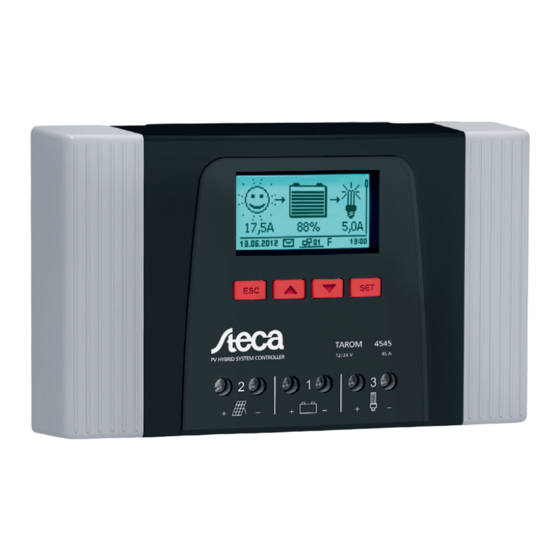

Tarom 4545
(12 V/24 V Batterie/accumulator)
Tarom 4545-48
(12 V/24 V/48 V Batterie/accumulator)
Installations- und Bedienungsanleitung
Installation and operating instructions
DE GB
745.487 | Z01.1 | 2013-05-23
