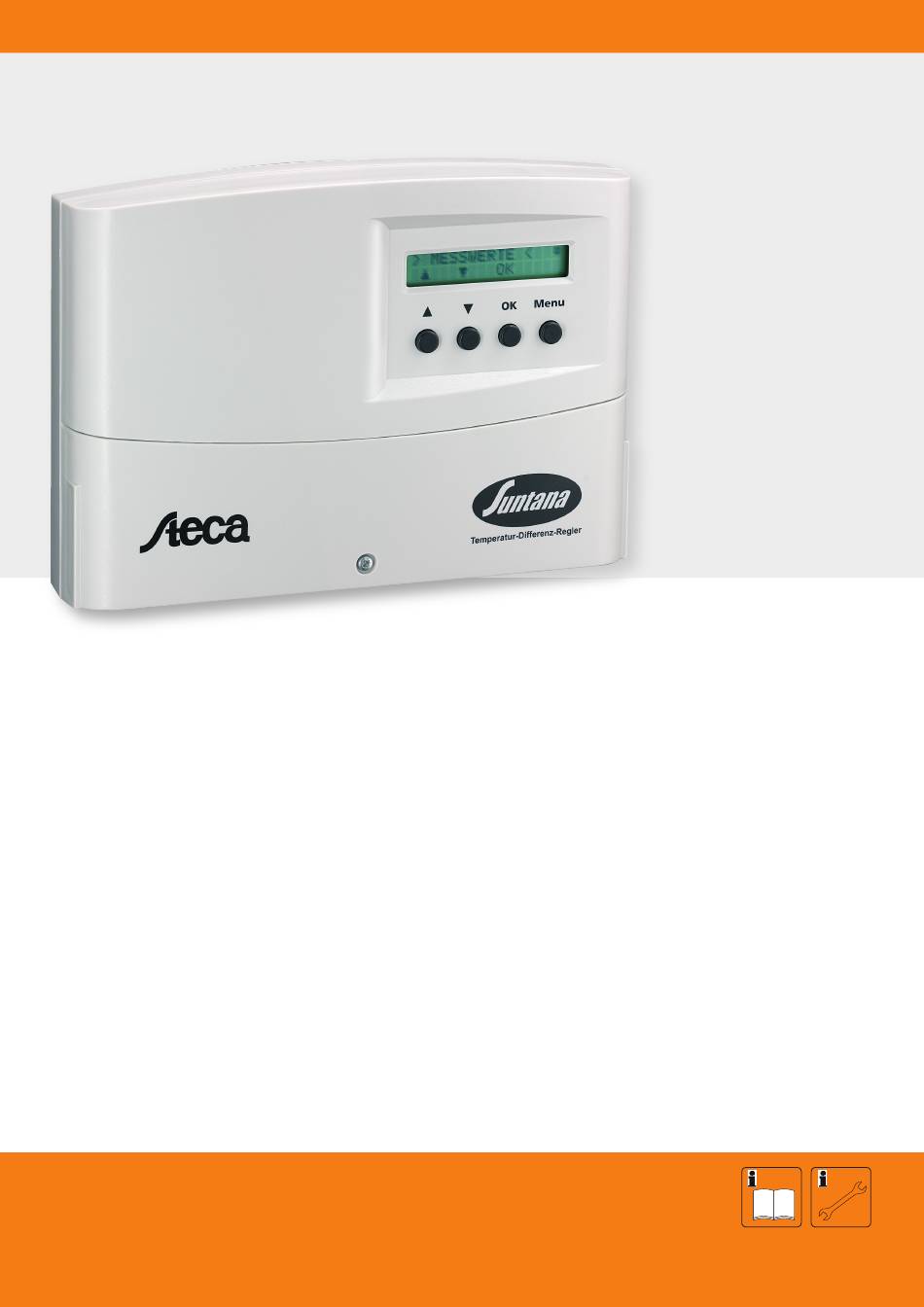

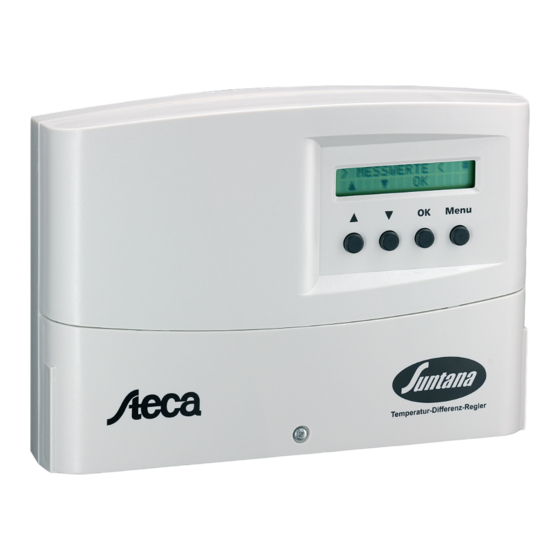

- Page 1 SOLARTHERMIE - SOLAR THERMAL - SOLAR TÉRMICO- SOLAIRE THERMIQUE - SOLARE TERMICO Instructions for installation and operation System controller for thermal solar systems Suntana 700.676...
-
Page 2: Table Of Contents
TABLE OF CONTENT Security instructions and exclusion of liability Operating the system controller System controller with monitoring functions Configuration Installation and operation Malfunction and sources of error Legal Guarantee Technical data Preset standard configuration Appendix Ecological Batterieladesysteme +Präzisionselektronik GmbH Chlorine-free bleached paper Germany Article-Number 700.676 Printed in Germany... - Page 3 Security instructions and restriction of liability Sign for security instructions Security instructions for personal safety are marked with this sign and are printed in bold letters. Instructions that refer to the functioning safety of the system are also printed in bold letters. General safety instructions For your own safety please note the following for installation: Please see that fire safety cable systems and similar things are not impaired!
-
Page 4: Operating The System Controller
Operating the system controller By using a thermal solar system you have – with this controller – the possibility to design your own personal solar system. This is guaranteed by various possibilities to adjust parameters and functions. How to change and watch readings, parameters and functions as follows. Illustrations (menu) show and clarifiy the potential selections and give an overview of the menu-driven system controller. - Page 5 illustration 2: Diagram of different menu Example – illustration on menu-driven operation With this example you can see how to fetch current and stored readings within the main menu "READINGS".
- Page 6 2.3 Menu "READINGS" By pushing the OK button within the menu "READINGS" you can fetch the various temperatures of the sensors installed. Moreover, the controller stores minimum and maximum temperature values of the collector, storage tank top and storage tank bottom. These values can be reset just as the solar circulation pump‘s operating hours over a certain period of time or the measured heat quantity (using the function calorimetry).
- Page 7 Apart from this the controller allows for registrating the calorimetry fed into the service water storage basin by an additional volume flow dispenser and the temperatures in the solar forward and backward movement. The volume flow dispenser is a traditional water meter with pulse output point. It is important that the volume flow dispenser resists the higher temperatures within the solar circuit.
- Page 8 3.2.3 Storage tank temperature limitation ("storage temp. limitation") (Appendix 10, illustration C) In order to avoid overheated service water the solar circulation pump P1 will be switched off when reaching a maximum temp. This temperature can be adjusted within a range of 20 to 95°C (within the menu parameter "storage temp.
- Page 9 3.2.6 Thermostat function heating system ("heating system") (Appendix 10, illustration F) The thermostat function heating system allows for warming up a warm water service tank by a heating tank. If an adjustable temp. (menu parameter: "heating system ON") on sensor T3 falls below 3 adjustable time windows (menu parameter: "indexing time 1: ...
- Page 10 C) temperature-linked circulation control and time-linked circulation control The combination of the above functions provides for optimally triggering a circulation pump with an extremly reduced running time. Here the circulation pump is only switched on during a given time window and a parallel temperature undershot. It immediately switches off when a certain temperature is reached.
-
Page 11: Configuration
T4 of the solar forward movement is used for circulation control. The function of the calorimetry remains the same, however, slight deviations have to be taken into consideration. Note: Within the function calorimetry the microcontroller takes into consideration the physical characteristics of the solar liquids TYFOCOR L (propylenglykol) that are frequently used. -
Page 12: Installation And Operation
Installation and operation Safety instructions The controller has been built for the use at 230 Volt AC at a frequency of 50 Hz [or optional 115 V (±15 %), 60 Hz]. Using this controller for other V and Hz values is not allowed. Please also note that the admissible nominal currents must not be exceeded. - Page 13 5.3 Connecting the controller First of all leave open the wire inputs for the power supply connection and the connecting wires of the sensors and the pump in the casing box. For this purpose there are material draws to be cut out (Illustration 4, Pos.
-
Page 14: Malfunction And Sources Of Error
Supply voltage 230V/50Hz [or optional 115V/60Hz]: = Conductor L = no-voltage con ductor N = grounded conductor PE Output R1 solar circulation p = relay solar circulation pump R1 = no-voltage conductor N = grounded conductor PE Output R2 solar circulation p = relay R2 = no-voltage conductor N = grounded conductor Pe... - Page 15 "side" condition potential source of error LCD display gone out no power supply, maybe safety fuse or current feed defective ubmenu "MAN.OPERA TION" manual switch-off of solar circulation (manual operation) selected pump Storing temp. T2 near or above storing temp. limitation has switched off the configurated max .
-
Page 16: Legal Guarantee
Short circuit T4 short circuit o f sensor conductor T4 for "calorimetry-forward" temp. registration or short circuit of T4 for circul ation temp. registration Interruption T4 Cut-off of T4 for "calorimetry-forward" temp. registration or short circuit of T4 for circulation temp. -
Page 17: Technical Data
Technical Data • Nominal voltage 230 Volt (± 15 %), 50 Hz [optional 115 Volt (±15 %), 60 Hz] • Max. self consumption ≤ 1,0 W • 6 inputs 5 x temperature determination PT1000 or KTY81-210 1 x pulse determination pulse counter 1 ... - Page 18 Name of device: ate of putting the device into peration: Used sensor types (please cross out in the c ase of reclamation): sensor type: PT1000 KTY81-210 Parameter config ration (please ind ate in the case of reclamation): Menu indicati on parameter preset configuration range...
-
Page 19: Appendix
excess temp. switc h-off (T1-T2) > 80 K constant ction configuratio ns ( please indicate in the c ase of complaint): Menu indication functions preset configuration preset values (customer specification) calorimetry calorimetry storage tank cooling storage tank cooli collector temp. limitation collector temperature limitation heating system heating syste... - Page 20 illustration C "storage temperature limitation" >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu storage temp. limitation: 60°C illustration D "collector temperature limitation" >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu...
- Page 21 illustration F Thermostat function: "heating system" >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu storage temp. calorimetry: limitation: °C heating system: heating system 45 °C heating system OFF: 52 °C time: 12:00 indexing time1: 06:00 to 09:00 indexing time2:...
- Page 22 >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu storage temp. calorimetry: limitation: °C circulation temp.linked OFF ON: 35 °C circulat. contr. circulation OFF: 40 °C illustration H 2) "Time-linked circulation control" >ADJUSTMENTS< >...
- Page 23 >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu calorimetry: antifreezing protection: illustration J "calorimetry" >ADJUSTMENTS< > READINGS < OK + Menu col: °C >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< stb: °C OK Menu OK Menu OK Menu °C storage temp.
- Page 24 >ADJUSTMENTS< > READINGS < OK + Menu >PARAMETERS< >FUNCTIONS< >MAN.OPERATION< OK Menu OK Menu OK Menu calorimetry: T1: KTY (OFF => PT1000) manual operation output R1 illustration L illustration M manual operation "output R2" "solar loop pump" >MAN. OPERATION< >MAN. OPERATION<...
- Page 25 700676...
