Summary of Contents for Truma Saphir vario

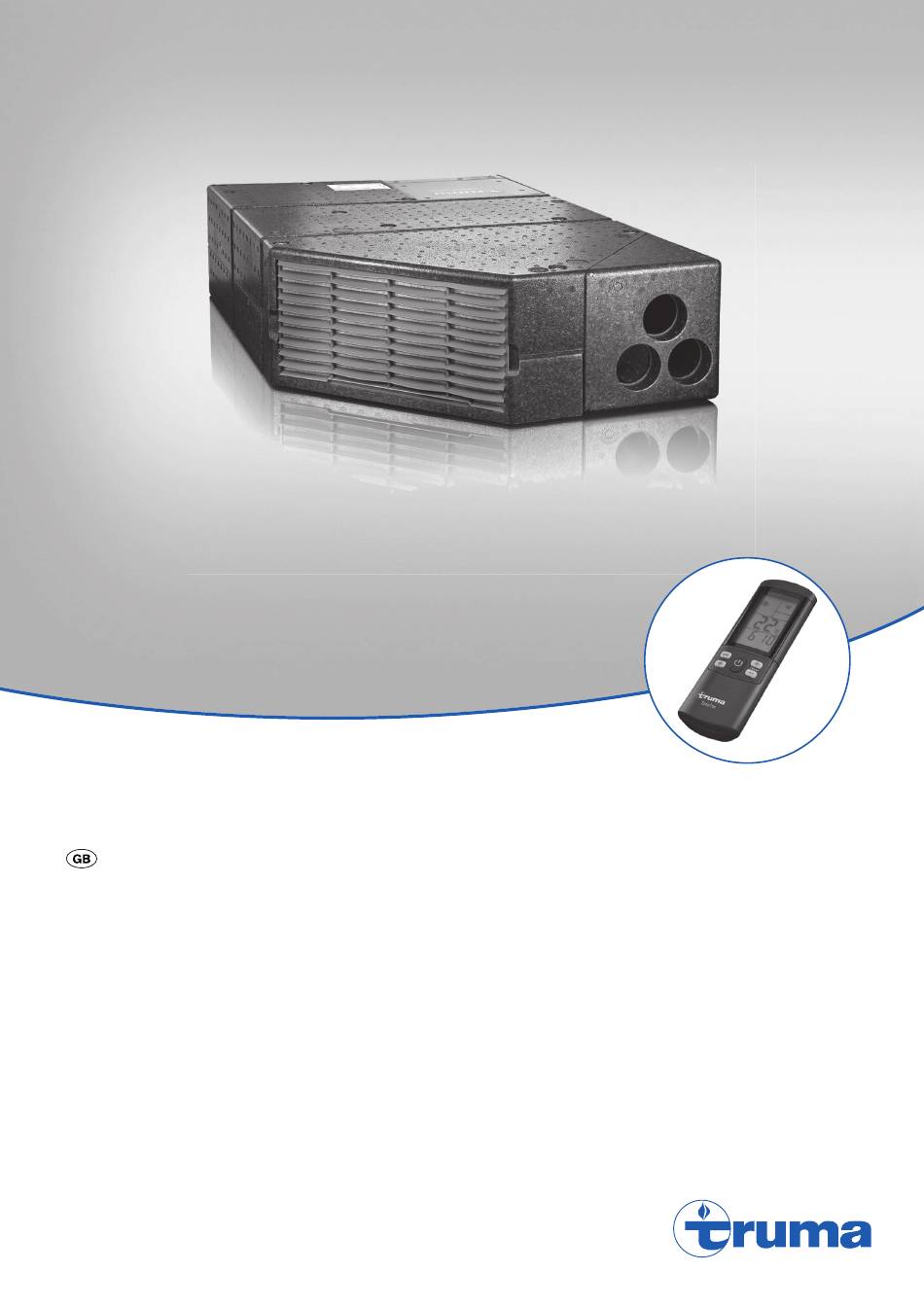

- Page 1 Saphir vario Operating instructions Page 2 To be kept in the vehicle!
-
Page 2: Table Of Contents
Saphir vario air conditioning system Table of Contents Symbols used Symbols used ..............13 The device must only be installed and repaired by an Safety instructions ............14 expert. Notes on using air conditioning systems ..... 14 Symbol indicates a possible hazard. -
Page 3: Safety Instructions
Safety instructions Notes on using air conditioning systems – The Saphir vario air conditioning system is designed for Repairs may only be carried out by an expert! minimal power consumption. You should still check wheth- er the camp site has adequate fuse protection (min. 1.7 A) To avoid transportation damage, the device may only be sent before starting the equipment up. -
Page 4: Operating Instructions
Operating instructions Always observe the operating instructions and “Safety instructions” prior to starting! The vehicle owner is re- sponsible for correct operation of the appliance. Remote control The symbols in the display are visible depending on the settings. Setup Resend / data transmission Sleep function Cooling... -
Page 5: Start-Up
Start-up Sleep function Before switching on, be sure to check that the camp site In “Sleep function” (lowest cooling level only) the fan oper- power supply fusing is sufficient (230 V / 600 W / 1.7 A, ates at slow speed and therefore extremely quietly. 1500 W / 3.0 A, 2000 W / 4.4 A). -
Page 6: Ir Receiver And Manual On/Off
The device is indicating a fault. Switch device off, wait for a penetrate the vehicle! short time and switch on again. If the red LED continues to illuminate, please contact Truma Service. Troubleshooting Maintenance Is the motor home/caravan 230 V power supply lead properly... -
Page 7: Remote Control Battery Change
Remote control battery change Technical data Only use micro-batteries that will not leak, type LR 3, AM4, Determined on the basis of EN 14511 or Truma test conditions AAA, MN 2400 (1.5 V). Designation The battery compartment is on the rear of the remote control. -
Page 8: Installation Dimensions
The warranty must be claimed with an authorised service part- ner or at the Truma Service Centre. All the relevant addresses The Manufacturer’s Warranty covers any of the aforementioned and phone numbers can be found at www.truma.com, in the... -
Page 9: Intended Use
Bei Störungen wenden Sie sich bitte an das Truma Las instrucciones de uso y de montaje en su idioma Servicezentrum oder an einen unserer autorisierten pueden solicitarse al fabricante Truma o al Servicio Servicepartner (siehe Truma Serviceheft oder postventa Truma en su país.
