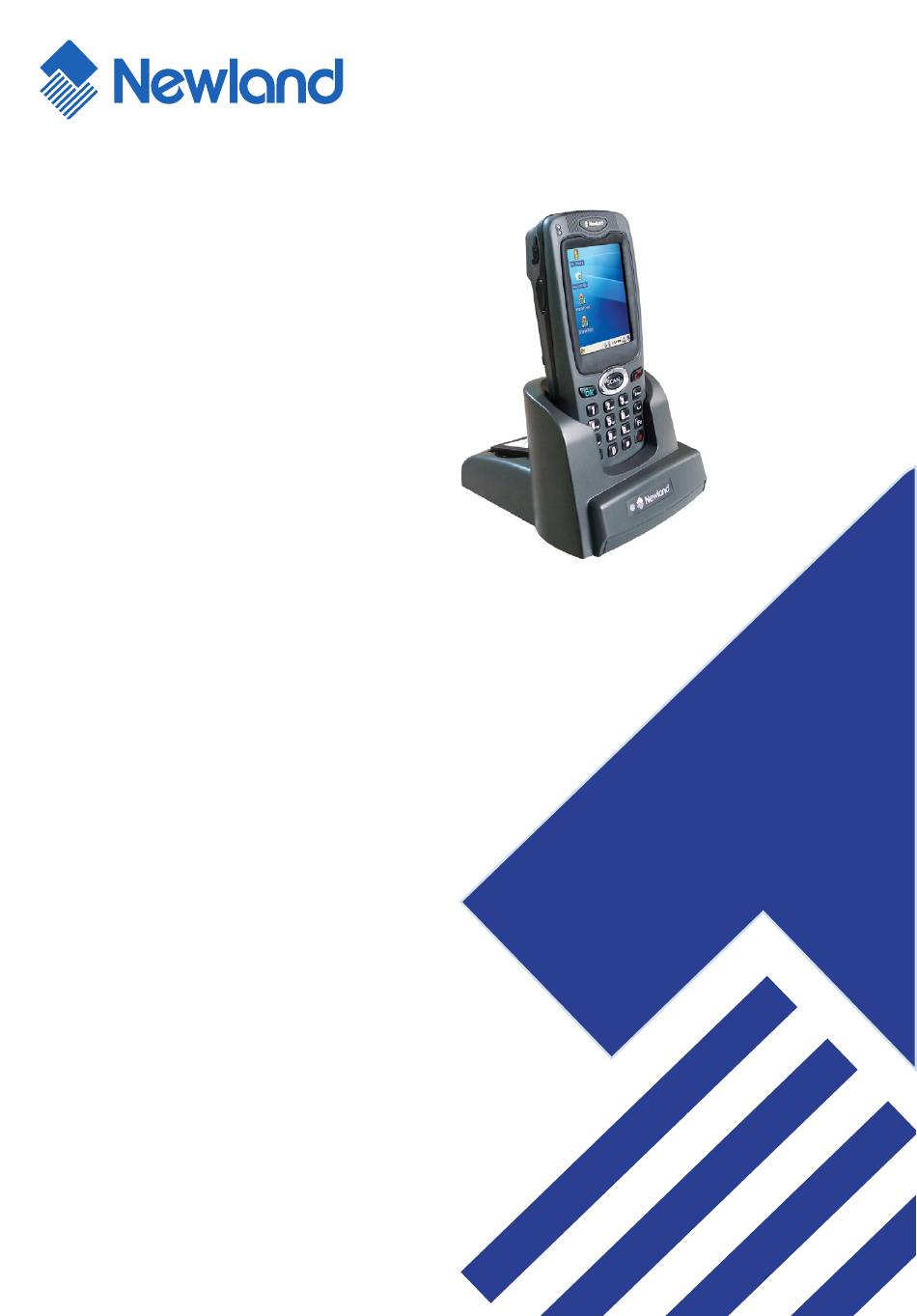

Page 1: Quick Start
NLS-PT980 Series Portable Data Collection Terminal Quick Start V1.0... - Page 2 Newland Auto-ID Tech Inc.(“Newland Auto-ID”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Newland Auto-ID to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Newland Auto-ID.
- Page 3 Quick Start Box contents NLS-PT980 Portable Data Collector SCAN Stylus NOTE: The stylus is located on the back panel at the top-right corner of your PT980 2400 mAH Li-polymer removable/rechargeable battery RS232 & USB Host Cable NOTE: It will be supplied upon order. USB Slave Cable NOTE: It will be supplied upon order.
- Page 4 Quick Start Hardware Overview SCAN 1、 Indicator 2、 USB Slave/Earphone 3、 Left Fn Key(F13) 4、 Beeper 5、 Scan Window 6、 7、 Keyboard 8、 USB Host 9、 IC Slot 10、 Stylus 11、 Right Fn Key(F14) 12、 IrDA Port 13、 Label 14、 Hand Belt Ring 15、...
- Page 5 & barcode between 15cm and 25cm. Yaw (αas below) between 0° and 45°（0 is the best）; Pitch(γas below) between 0° and 45°（5-20 is the best）; Roll (β as below)360°. For more information about PT980 series products, please visit Newland Auto-ID website. www.nlscan.com nlscan.com...
- Page 6 Quick Start Supports & Service If you have a problem with your equipment, contact the Newland Support Center for your region. Before calling, have the model number, serial number, and several of your barcodes at hand. Call the support Center from a phone near the scanning equipment so that the service person can try to talk you through your problem.
- Page 7 Quick Start Revisions Version Data Source Description Date Approved 20090826 V1.0 nlscan.com Page 6...
