Newland NQ1000 MANTA User Manual

Customer information terminal/microkiosk/pos system
Hide thumbs
Table of Contents

Advertisement

Quick Links

NQ1000 Manta
Customer Information Terminal
/ MicroKiosk / POS System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NQ1000 MANTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NQ1000 MANTA

Summary of Contents for Newland NQ1000 MANTA

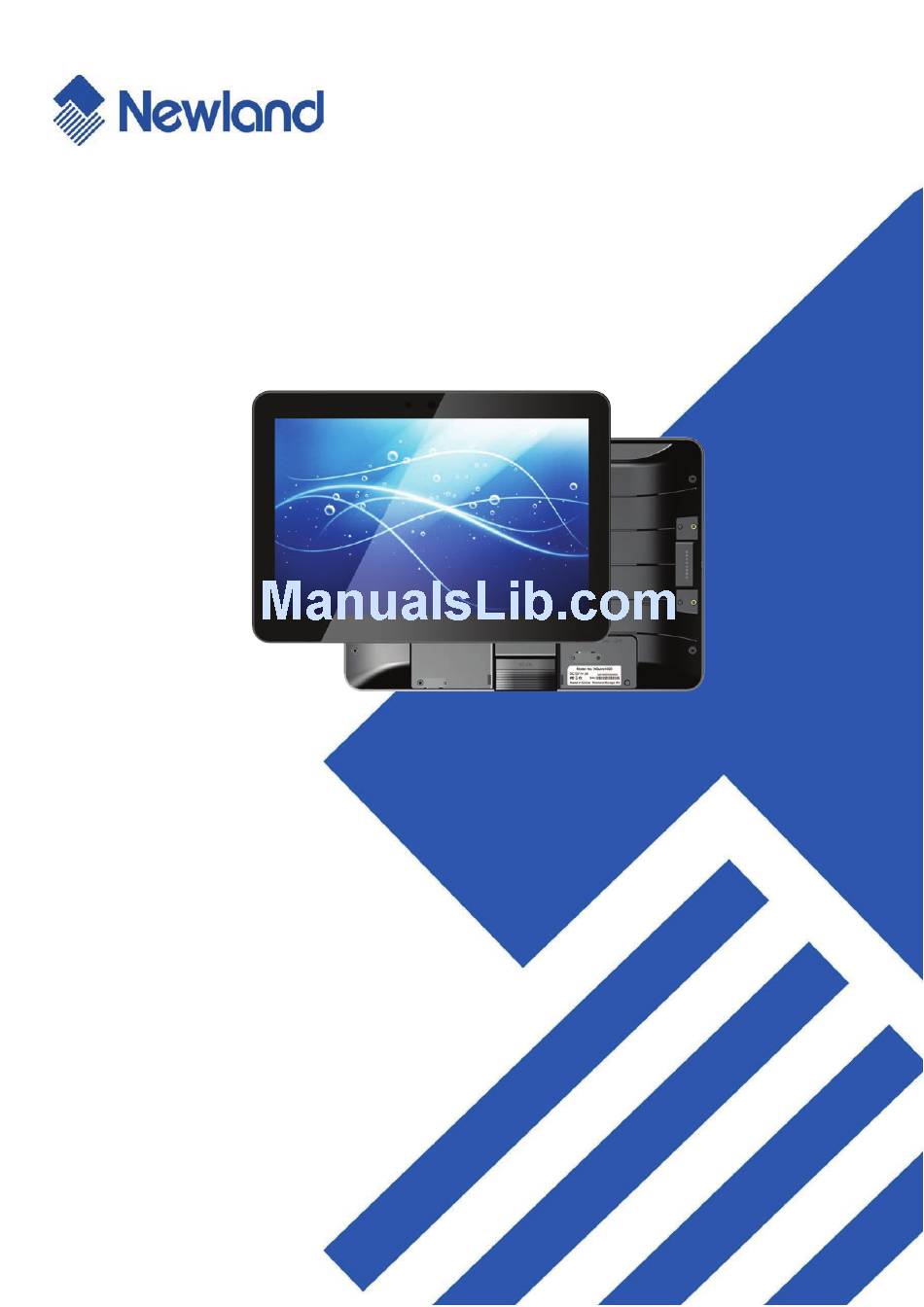

  • Page 1 NQ1000 Manta Customer Information Terminal / MicroKiosk / POS System User Guide...

  • Page 2: Table Of Contents

    Table of Content Disclaimer ..........................3 Product Instruction ......................3 Power on the Product ......................4 Without Mounting Bracket ..................... 4 Use Mounting Bracket ....................4 Insert SD Card ........................5 Insert USB Devices ......................5 HDMI Output ........................5 Home Screen ........................

  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. August 4, 2016...

  • Page 4: Disclaimer

    Disclaimer Please read the instructions carefully before equipment installation and ü using the device. Do not put the product in high temperature, humid or dusty environment. ü Do not drop, crash or break down this product. ü Do not power off the device when it’s formatting or upgrading, otherwise it ü...

  • Page 5: Power On The Product

    8. VESA Mount Holes: for installing the bracket 9. DC In Jack: powered by 12V/2A DC input 10. Add-on module slot: to put optional add-on module 11. 10/100Mbps RJ45 Ethernet Port: support Ethernet connection 12. USB Port: support USB 2.0 Host type A 13.

  • Page 6: Insert Sd Card

    power switch (#14) at the bottom of the product. Note: The mounting bracket contains battery inside. The power adapter can be unplugged once finishing charging. Please fully charge the battery before the first use. Insert SD Card This product supports external SD card. Please insert your SD card into the SD Card Slot (#3 in Product Instruction) on the top of this product.

  • Page 7: Home Screen

    Default HDMI resolution is 1080P, you can set it to 720P or lower. Home Screen In the home screen, you can long-press the blank space to change the wallpaper or drag widgets to desktop. Change Wallpaper: 1. Click “WALLPAPER”.
  • Page 8 2. Select one picture from system presets or your own pictures. 3. Click “Set wallpaper” on the upper-left corner of the screen to apply the wallpaper. Add Widgets: 1. Click “WIDGETS”.
  • Page 9 2. Long-press a widget and drag it to desktop. 3. A dialog prompts you to allow adding a widget for the first time. Check the checkbox and then click “Create”.

  • Page 10: System Bar

    4. If you want to remove an icon, long-press the widget and drag it onto “×Remove” at the top of the screen and drop it until it turns red. System Bar Navigation Buttons...
  • Page 11 1. Volume-: Decrease the system volume. 2. Back: Return to the previous page. 3. Home: Return to the home screen. 4. Recents: Switch between recently used apps. To remove an app from the list, you could long-press the icon to select “Remove from list”.
  • Page 12 5. Volume+: Increase the system volume. Status Notifications Status bar at top of the screen displays system status, such as time, Wi-Fi, SD card and USB connection etc. Pull down the upper-left corner to open the status window. Pull down the upper-right corner to open the shortcuts window which contains brightness adjustment, Wi-Fi, auto rotate, airplane mode and...

  • Page 13: Applications

    location switch, and system settings entrance. Applications Click at the bottom of home screen to enter the applications page. The installed applications will be shown here and you can open an app by clicking its icon.

  • Page 14: Language

    To find an app easily, you can create a shortcut by long-pressing of the icon and drag it to the home screen. Language In the App list, click “Settings” to open the system setting app, and select the option “Language & input”. Click the first option “Language”...

  • Page 15: Date & Time

    can change the system language according to your preference. Date & Time In the App list, click “Settings” to open the system setting app, and select the option “Date & time”. If you enabled the option “Automatic date & time” under “Date & time”, system date and time will be synchronized automatically with network time...

  • Page 16: Volume

    when you connected a Wi-Fi network. If you want to set the time manually, you need to disable “Automatic date & time” and “Automatic time zone”. In this option, you can also set time zone, time notation and date format. Volume On the system bar, click the Volume- icon to decrease the system...

  • Page 17: Scheduled Power On/Off

    Slide the brightness button to adjust the brightness of the screen, or turn on Auto switch to automatically adjust the display's brightness to the appropriate level for the current ambient light. Scheduled Power On/Off This function is used to power the device on and off automatically at the set time.
  • Page 18 Click the single option “Set Scheduled Power On/Off Clocks”. The top row is for power on clocks, and the following row is for power off clocks. Click the top row to enter the settings of power on clocks.
  • Page 19 Click the option “Time” to set the power on time of this device. Click the option “Repeat” to select the days which will power on this device at the set time.
  • Page 20 After setting, click “Done” at the upper-right corner of the screen to save them. You will see the power on option checked after saving the settings.

  • Page 21: Wi-Fi

    For power off clocks, you can set them as same as power on clocks. After the settings, the device will be powered off at set time, and powered on again when achieves the appointed time. Wi-Fi In the App list, click “Settings” to open the system setting app, and select the option “Wi-Fi”.

  • Page 22: Ethernet

    Switch the Wi-Fi button to ON. The product will scan available wireless networks automatically. Select a network under Wi-Fi networks and input the password to connect. Ethernet In the App list, click “Settings” to open the system setting app, select the option “More”, and then select “Ethernet”...

  • Page 23: Bluetooth

    Check “Use Ethernet” and plug the Internet cable into the Ethernet port (#11 in Product Instruction). If Wi-Fi is on, please turn off Wi-Fi to allow Ethernet working. If you are Static IP user, please set the configurations manually. Bluetooth In the App list, click “Settings”...
  • Page 24 Switch the Bluetooth button to ON. The product will scan ambient available Bluetooth devices automatically. If you want to pair another Bluetooth device, select it from the “Available Devices” list, and then click “Pair” in the pop-up window. At the same time, click “Pair”...
  • Page 25 If you want to be paired by another Bluetooth device passively, click the Bluetooth name at the top. When the summary will changed to “Visible to all nearby Bluetooth devices (Visibility timeout)”, this Bluetooth name can be scanned by other Bluetooth devices until the countdown to the end. The Bluetooth name and visibility timeout can be changed in the menu.

  • Page 26: Virtual Keyboard

    Virtual Keyboard The device provides a virtual keyboard for typing. You can use it as a real one. When you click in a text input box, the virtual keyboard will appear at the bottom of the screen. To collapse the virtual keyboard, you can click the icon in the system bar.

  • Page 27: Switch Input Methods

    Switch Input Methods In any text input box, pull down the upper-left corner of the screen to see the status window, and click “Choose input method”. Select an input method from the pop window. If the keyboard icon is invisible, please check whether the installed input method is selected in the “Language &...

  • Page 28: Take Photos & Shots

    Take Photos & Shots Front 5M pixels camera is an optional accessory. In the App list, open “Camera” Click the capture button to take a photo. Click above the capture button to change camera settings.
  • Page 29 Click to open detail settings. From left to right in the picture are: location on/off, countdown timer, picture size, white balance, and scene mode. Click under the capture button to switch take photos or videos.
  • Page 30 Click the capture button to shooting a video. Click the capture button to stop the shot.

  • Page 31: Surf Online

    Surf Online In the App list, open “Browser” When connecting the device to a network, you can visit websites, play online media or download files via the browser. In a browser window, enter in a URL in the address bar and click “Go” in the virtual keyboard to go.

  • Page 32: Browse Files

    Browse Files In the App list, open “Explorer” to view local files. Long-press a file or folder to do file operations, such as copy, delete, move (cut), paste, rename, send (share) and create shortcut. If you want to select several files/folders at once, click “Muti” in the menu, and then select files/folders.

  • Page 33: Play Media

    Click “Editor” in the menu to operate the selected files/folders. Play Media With the provided apps, you can play your media files on your storage, such as pictures, music and videos. Picture Player: Support JPG, BMP, GIF. Music Player: Support MP2, WMA, WAV, AAC, OGG, ASF. Video Player: Support MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV.
  • Page 34 Click “Install” button. Choose the installation file’s location. The apk files will be automatically scanned in the right side list.
  • Page 35 Click the apk you want to install. Click “Install” or “Next” until it turns to “Install”, and then waiting for installation finished.

  • Page 36: Uninstall Apps

    You can also download an android app market, and install the apps via the market. If “Install blocked” is prompted when installing an app, please open “Settings” and select the option “Security”, allow “Unknown sources” and then back to reinstall the app. Uninstall Apps To uninstall an app, please open “Settings”...
  • Page 37 Click the app you want to remove to enter the detail page. Click the “Uninstall” button and select “OK”, and then waiting for uninstallation finished.

  • Page 38: Reset To Factory Default

    Reset to Factory Default Please make sure to back up the important data before resetting the device. In the App list, click “Settings” to open the system setting app, and select the option “Backup & reset”. Click “Factory data reset”.
  • Page 39 Click “Reset tablet” button. Click “Erase everything” button, and then waiting system reboots and resets to factory default.
  • Page 40 Newland Ibérica +34 (0) 93 303 74 66 info@newland-id.es Newland France +31 (0) 345 87 00 33 info@newland-id.fr Newland Middle East +31 (0) 345 87 00 33 middleeast@newland-id.com Newland South Africa +27 (0) 11 553 8010 info@newland-id.co.za Newland Italy +39 (0) 335 773 0521 cristiano.dibattista@newland-id.com...
