Summary of Contents for Newland NQuire 1000 Manta II
Page 1

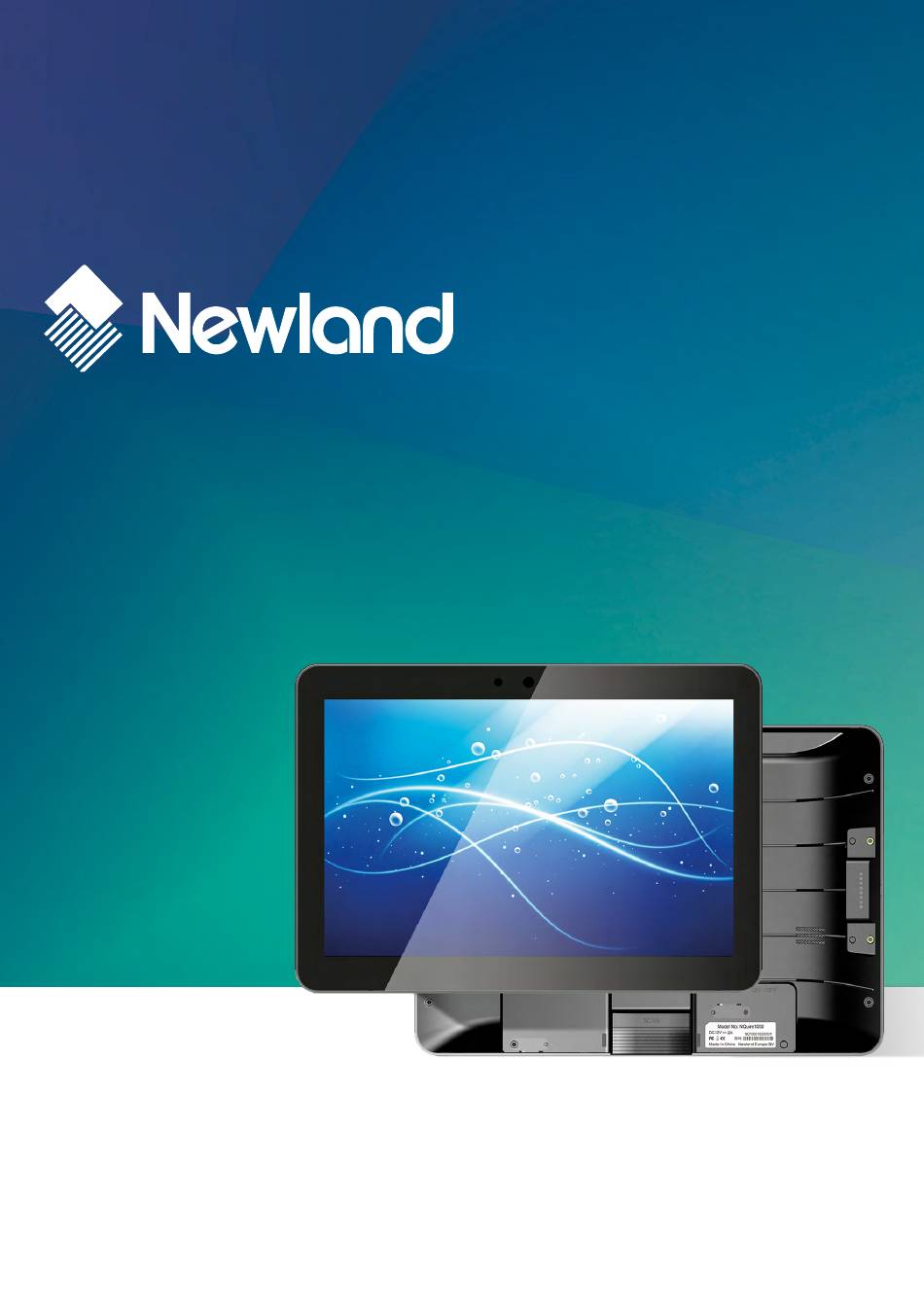

SCANNING MADE SIMPLE NQuire 1000 Manta II customer information terminal quick start guide...
Page 2
Front- Top- Bottom-(without I/O port covers) Front Camera SD Slot with Cover support external SD card LED Indicator Back button return to the previous page Up / Down Buttons navigate up/down to select an item adjust the system volume Vol+ / Vol- Buttons by default, power switch is in ON position Power Switch powered by 12V/2A DC input...
Page 3
Rear- (with I/O port covers) (without I/O port covers) Right- left- Expansion Slot install optional add-on modules Speakers dual audio output VESA Mount Holes mount device with VESA wall mount kit Control I/O Port Cover cover for GPIO and RS-232 ports I/O Port Covers cover for frequently used I/O ports Headset and Mic...
