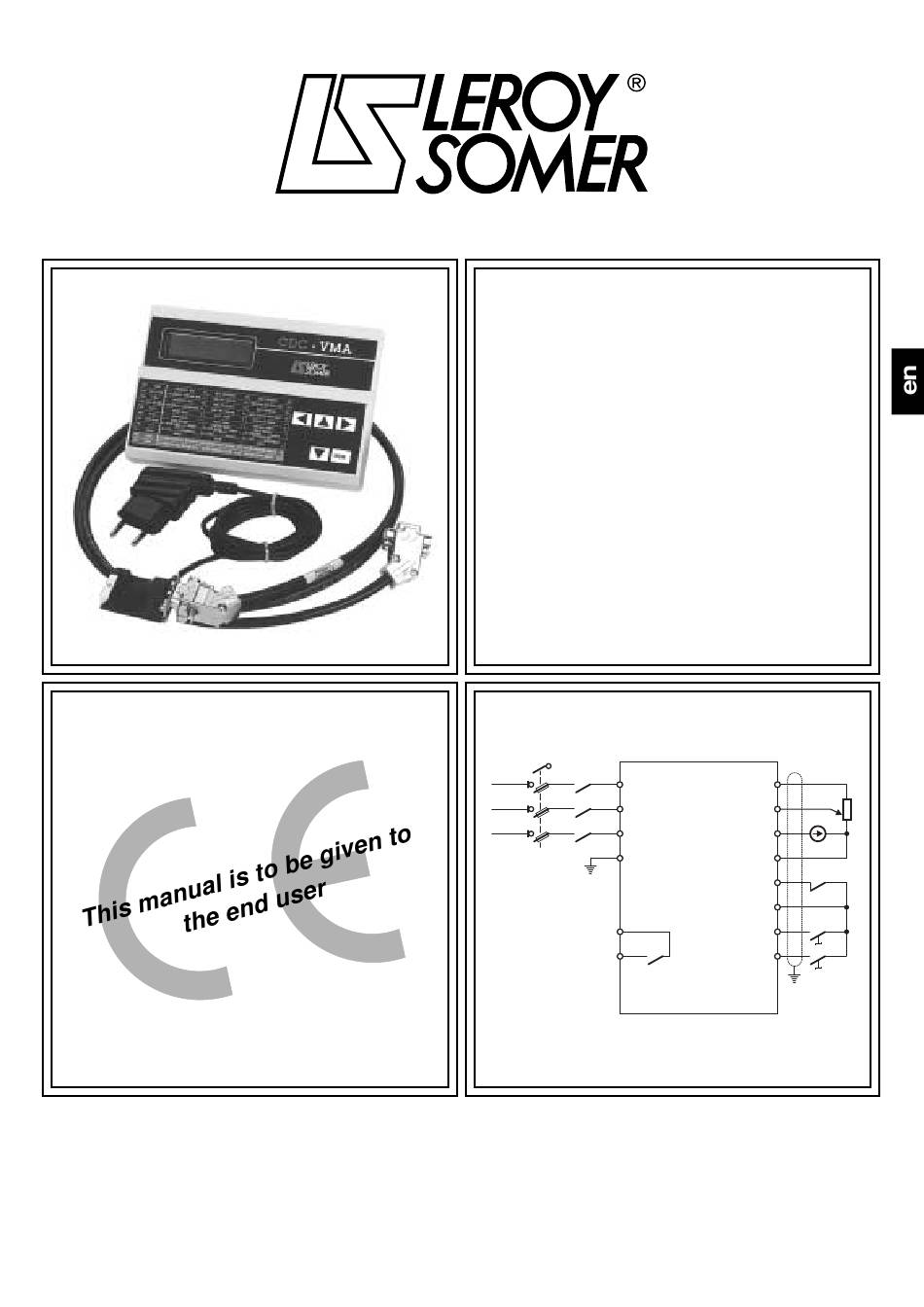

Ref. 3264 - 4.33/b -1.00
L1
1
L2
2
L3
3
PE
4
5
6
9
7
10
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VARMECA 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leroy-Somer VARMECA 10

Summary of Contents for Leroy-Somer VARMECA 10

  • Page 1 Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors Parameter-setting manual...
  • Page 2 (emergency stop, fault detector). The VARMECA 10 motor is fitted with safety devices which, in the event of a fault, control stopping and thus stop the motor. The motor itself can become jammed for mechanical reasons. Voltage fluctuations, and in particular power cuts, may also cause the motor to stop.
  • Page 3 VDE 0558 are also applicable. powered down, as the capacitors may still be charged. In view The technical characteristics and instructions concerning the of this, the warnings fixed to VARMECA 10 motors must be connection conditions specified on the nameplate and in the observed.

  • Page 4: Table Of Contents

    2.2 - Presentation of the keypad ....................37 2.3 - Read mode ........................38 2.4 - Parameter-setting mode ....................38 2.5 - The VARMECA 10 parameters ..................39 3 - COMMISSIONING THE PEGASE VMA 10 PC PARAMETER-SETTING SOFTWARE ..41 3.1 - Connection ........................41 3.2 - Installing the software ......................

  • Page 5: General Information

    This manual describes access to the parameter settings of VARMECA 10, the VARMECA 10 (VMA 11 - 12 - 13 - 14) range, using a - 3 disks for loading the software onto a PC (or 1 CD-ROM). CDC-VMA console or PEGASE VMA 10 PC software.

  • Page 6: Wiring Diagrams

    LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4 - Wiring diagram 1.4.1 - Standard configuration (factory setting) +10V Local button or MAINS external potentiometer SUPPLY 0-10V speed image output...
  • Page 7 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4.2 - Configuration option 1: 2 preset speeds - 2 operating directions MAINS SUPPLY 0-10V speed image output Preset speed selection Run reverse / stop...
  • Page 8 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4.3 - Configuration option 2: analogue reference and 3 preset speeds - 1 operating direction +10V External potentiometer or MAINS external reference...
  • Page 9 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4.4 - Configuration option 3: correction of an external reference with the speed control button - 2 operating directions - enabling/disabling the control button...
  • Page 10 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4.5 - Configuration option 4: 2 preset speeds fixed or proportional to the reference - 1 operating direction +10V External potentiometer or...
  • Page 11 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors GENERAL INFORMATION 1.4.6 - Standard configuration: regulation with the integrated PI loop - PI reference using the local button or external reference - 2 operating directions...

  • Page 12: Commissioning The Cdc-Vma Console

    2 - COMMISSIONING THE CDC-VMA 2.1.2 - Connection CONSOLE - Open the front cover of the VARMECA 10. - Connect the 20-pin socket on the end of the cable to the 2.1 - Installation connector on the VARMECA 10 rolled cable.

  • Page 13: Read Mode

    If when the console is powered up, it is not Parameter modifications must be performed with connected to the VARMECA 10 or if the VARMECA the VARMECA 10 stopped (run command disabled) 10 is switched off, the message CONSOLE LINK...

  • Page 14: The Varmeca 10 Parameters

    Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors COMMISSIONING THE CDC-VMA CONSOLE 2.5 - The VARMECA 10 parameters List and description of the parameters which can be accessed by the CDC-VMA console Adjustment range in Display...
  • Page 15 0 to 1 when the reference is less than Fmin, it forces the motor to stop P27 LOG CDC-VMA console software version VARMECA 10 power rating setting code of ratings 0 = 0.37 kW 1 = 0.55 kW 2 = 0.75 kW 3 = 0.9 kW...

  • Page 16: Commissioning The Pegase Vma 10 Pc Parameter-Setting Software

    3.1.2 - Connection - The RS 232 socket on the cable is connected to the RS232 socket on the PC. - The 20-pin socket on the cable connects to the connector on the VARMECA 10 rolled cable. VARMECA 10 connector...

  • Page 17: Use

    LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors COMMISSIONING THE PEGASE VMA 10 PC PARAMETER-SETTING SOFTWARE 3.3 - Use - Double-click on the icon - The first window appears. 3.3.1 - Detail of the 1st window...

  • Page 18: The Varmeca 10 Parameters

    Exit the current window Parameter modifications must be made whilst the VARMECA 10 is powered up, but in the "stop" position (run command disabled) 3.4 - The VARMECA 10 parameters Description of parameters which can be accessed from the PC.
  • Page 19 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors COMMISSIONING THE PEGASE VMA 10 PC PARAMETER-SETTING SOFTWARE Adjustment range in Display Description Factory setting increments of 1 calibration of the max. reference Max. reference point...
  • Page 20 LEROY-SOMER PARAMETER-SETTING MANUAL Ref. 3264 - 4.33/b -1.00 VARMECA 10 Variable speed motors and geared motors COMMISSIONING THE PEGASE VMA 10 PC PARAMETER-SETTING SOFTWARE Adjustment range in Display Description Factory setting increments of 1 F mot motor frequency reading 0 to 220 Hz reading...

  • Page 21: Troubleshooting

    BUS UNDERVOLTAGE - check the mains supply voltage Red LED flashing EEPROM - make sure that the VARMECA 10 is not affected by interference Red LED illuminated - internal product fault SERIAL LINK - communication fault between the EEPROM and the controller - product fault...

  • Page 22: Summary Of Settings

    SUMMARY OF SETTINGS 5 - SUMMARY OF SETTINGS The table below can be used to note the settings entered in the VARMECA 10 in order to keep a record should a replacement product be needed. Settings made using the CDC-VMA console...
