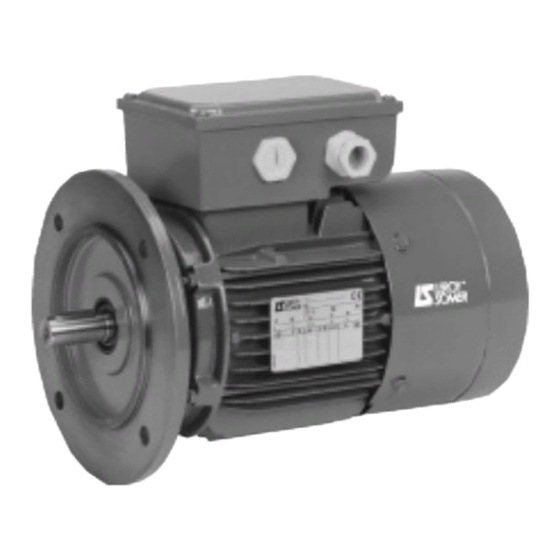

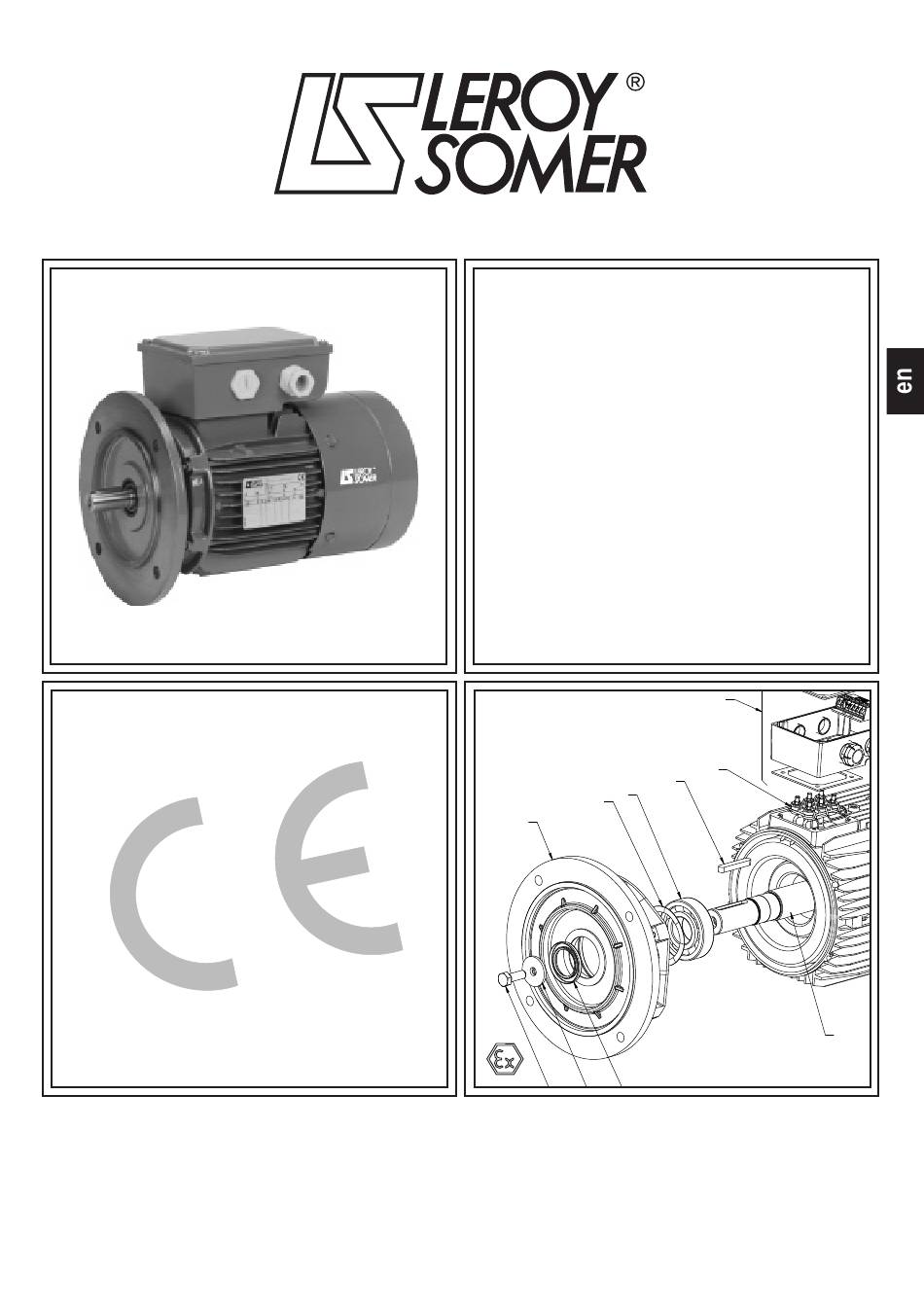

- Page 1 5025 en - 2013.03 / a (F)LS (ES, IA, MV, PX), FCR 3-phase asynchronous TEFV brake motors Maintenance...
-
Page 2: Table Of Contents
5 - TROUBLESHOOTING GUIDE ................................17 6 - WIRING DIAGRAMS ..................................18-19 NOTE : Leroy-Somer reserves the right to modify its product characteristics at any time to incorporate the latest technological developments. The information contained in this document may therefore be changed without prior warning. -
Page 3: Identification
LEROY-SOMER MAINTENANCE 5025 en - 2013.03 / a (F)LS (ES, IA, MV, PX), FCR 3-phase asynchronous TEFV brake motors 1 - IDENTIFICATION 1.2 - Marking 1.1 - Standard nameplate Ensure that the nameplate conforms with the order specifications on receipt of the motor. -
Page 4: Exploded View And Parts List For Fcr Brake Motors
§ 2.2). If this advice is not followed, the manufacturer cannot be held responsible for any subsequent damage. 3.2 - Wearing parts Parts number LS 71 FCR (F)LS 80 FCR (F)LS 90 FCR (F)LS 100 FCR (F)LS 112 FCR LS 132 S FCR... -
Page 5: Maintenance
4.4 - Braking torque (N.m values given for indication only ; in case of Standards’ limitation, please consult us) LS 71 FCR (F)LS 80 FCR (F)LS 90 FCR... -
Page 6: Electro-Magnet Characteristics
ESFR VMA 33/34 : 180 V 100 - 120 V Current Resistance Power Current Resistance Power Current Resistance Power Current Resistance Power Brake motor type LS 71 FCR 0.26 46.4 0.21 25.3 0.45 44.9 2.21 43.9 (F)LS 80 FCR 0.29 0.28... -
Page 7: Troubleshooting Guide
LEROY-SOMER MAINTENANCE 5025 en - 2013.03 / a (F)LS (ES, IA, MV, PX), FCR 3-phase asynchronous TEFV brake motors 5 - TROUBLESHOOTING GUIDE Incident Possible cause Action Abnormal noise Originating in motor or driven machine? Uncouple the motor from the driven equipment and... -
Page 8: Wiring Diagrams
LEROY-SOMER MAINTENANCE 5025 en - 2013.03 / a (F)LS (ES, IA, MV, PX), FCR 3-phase asynchronous TEFV brake motors 6 - WIRING DIAGRAMS 1 speed, D.O.L. starting, 50/60 Hz 1 speed, Y D starting, 50/60 Hz Built-in power supply : 350 to 460 V, 200 to 265 V... - Page 9 LEROY-SOMER MAINTENANCE 5025 en - 2013.03 / a (F)LS (ES, IA, MV, PX), FCR 3-phase asynchronous TEFV brake motors 2 speeds, 2 windings, 2 voltage, 50/60 Hz 2 speeds, 2 windings, 1 voltage, 50/60 Hz (D/Y) : LS 71 Separate power supply : 350 to 460 V, 200 to 265 V, (24 V*)
